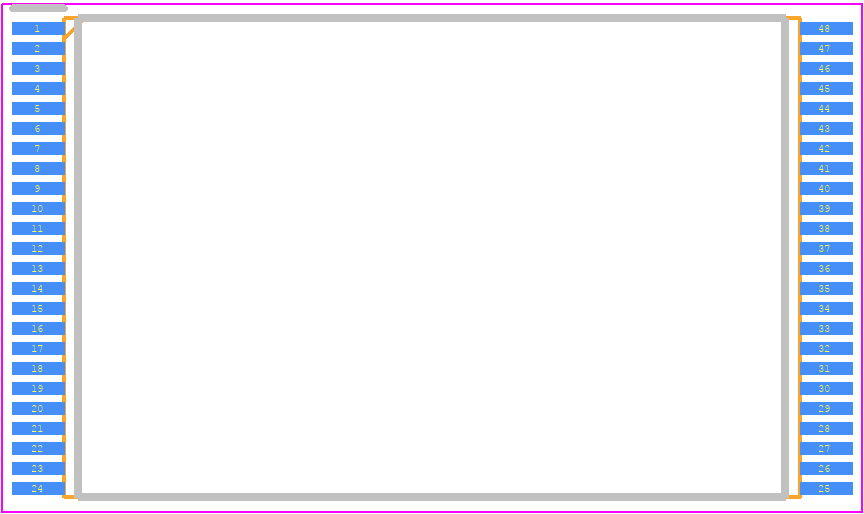

Footprint
-

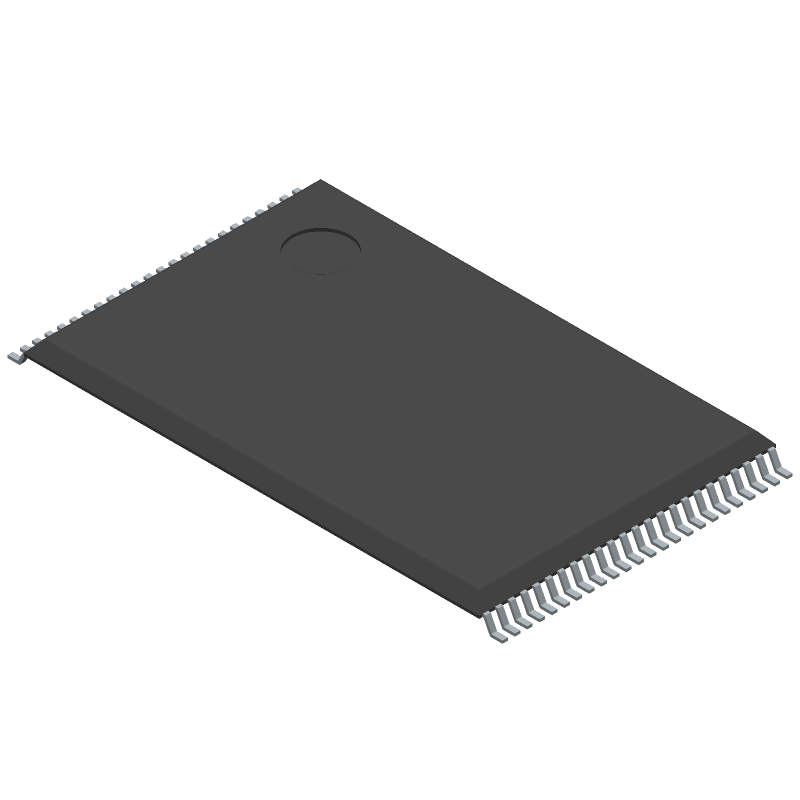

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IS34ML04G084-TLI by Integrated Silicon Solution Inc
Results Overview of IS34ML04G084-TLI by Integrated Silicon Solution Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
IS34ML04G084-TLI Information
IS34ML04G084-TLI by Integrated Silicon Solution Inc is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for IS34ML04G084-TLI
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
65AC5998
|
Newark | Flash Memory, 4Gbit, 25Ns, Tsop-I-48, Flash Memory Type:Slc Nand, Memory Size:4Gbit, Flash Memory Configuration:512M X 8Bit, Ic Interface Type:Parallel, Memory Case Style:Tsop-I, No. Of Pins:48Pins, Clock Frequency:-, Access Rohs Compliant: Yes |Integrated Silicon Solution/issi IS34ML04G084-TLI RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$7.6100 / $9.3900 | Buy Now |
|
DISTI #
37AC0624
|
Newark | Flash Memory, 4Gbit, 25Ns, Tsop-I-48, Flash Memory Type:Slc Nand, Memory Configuration:512M X 8Bit, Interfaces:Parallel, Ic Case/Package:Tsop-I, No. Of Pins:48Pins, Clock Frequency Max:-, Access Time:25Ns, Supply Voltage Min:2.7V Rohs Compliant: Yes |Integrated Silicon Solution/issi IS34ML04G084-TLI RoHS: Compliant Min Qty: 192 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$7.3100 / $7.7500 | Buy Now |
|
DISTI #
706-1635-ND
|
DigiKey | IC FLASH 4GBIT PARALLEL 48TSOP I Min Qty: 1 Lead time: 10 Weeks Container: Tray |
128 In Stock |
|
$7.1305 / $9.0300 | Buy Now |
|
DISTI #
IS34ML04G084-TLI
|
Avnet Americas | ISNIS34ML04G084-TLI - Trays (Alt: IS34ML04G084-TLI) RoHS: Not Compliant Min Qty: 192 Package Multiple: 96 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$5.2778 / $5.4100 | Buy Now |
|
DISTI #
870-IS34ML04G084-TLI
|
Mouser Electronics | NAND Flash 4G 3V x8 4-bit NAND Flash RoHS: Compliant | 131 |
|
$7.1300 / $9.0300 | Buy Now |
|
DISTI #
IS34ML04G084-TLI
|
TME | IC: FLASH memory, 4GbFLASH, parallel 8bit, TSOP48, parallel Min Qty: 1 | 187 |
|
$9.8700 / $14.9800 | Buy Now |
|
|
Karl Kruse GmbH & Co KG | 441 |
|
RFQ | ||
|
DISTI #
IS34ML04G084-TLI
|
Avnet Asia | ISNIS34ML04G084-TLI (Alt: IS34ML04G084-TLI) RoHS: Compliant Min Qty: 96 Package Multiple: 96 Lead time: 16 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
IS34ML04G084-TLI
|
Avnet Silica | ISNIS34ML04G084TLI (Alt: IS34ML04G084-TLI) RoHS: Compliant Min Qty: 96 Package Multiple: 96 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for IS34ML04G084-TLI
IS34ML04G084-TLI CAD Models
IS34ML04G084-TLI Part Data Attributes
|
|
IS34ML04G084-TLI
Integrated Silicon Solution Inc
Buy Now
Datasheet
|
Compare Parts:
IS34ML04G084-TLI
Integrated Silicon Solution Inc
Flash, 512MX8, PDSO48, TSOP1-48
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INTEGRATED SILICON SOLUTION INC | |
| Package Description | TSOP1-48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Integrated Silicon Solution Inc. | |
| JESD-30 Code | R-PDSO-G48 | |
| JESD-609 Code | e3 | |
| Length | 18.4 mm | |
| Memory Density | 4294967296 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Number of Words | 536870912 words | |
| Number of Words Code | 512000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 512MX8 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSOP1 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE | |
| Parallel/Serial | PARALLEL | |
| Programming Voltage | 3.3 V | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Type | SLC NAND TYPE | |
| Width | 12 mm |
IS34ML04G084-TLI Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the IS34ML04G084-TLI is -40°C to 85°C.
-
The power-up and power-down sequences for the IS34ML04G084-TLI should be handled according to the datasheet's recommended power-up and power-down procedures to ensure proper device operation and prevent damage.
-
The maximum clock frequency supported by the IS34ML04G084-TLI is 166 MHz.
-
Error correction and detection for the IS34ML04G084-TLI can be implemented using ECC (Error-Correcting Code) or CRC (Cyclic Redundancy Check) techniques, depending on the specific application requirements.
-
The typical current consumption of the IS34ML04G084-TLI is 15mA (active) and 10uA (standby).
