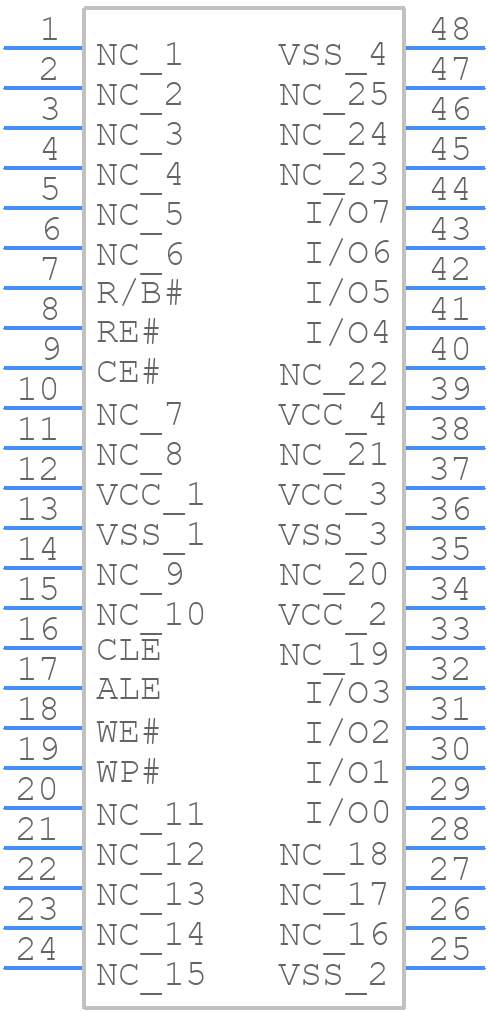

Part Symbol
-

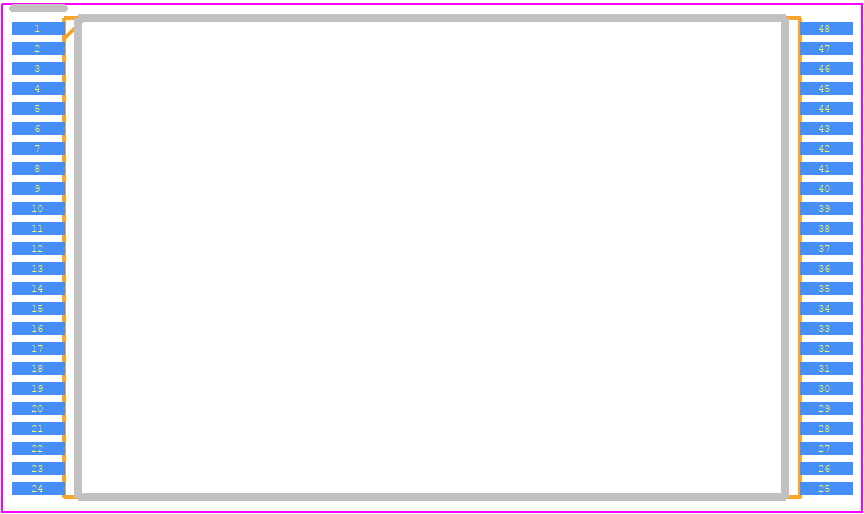

Footprint
-

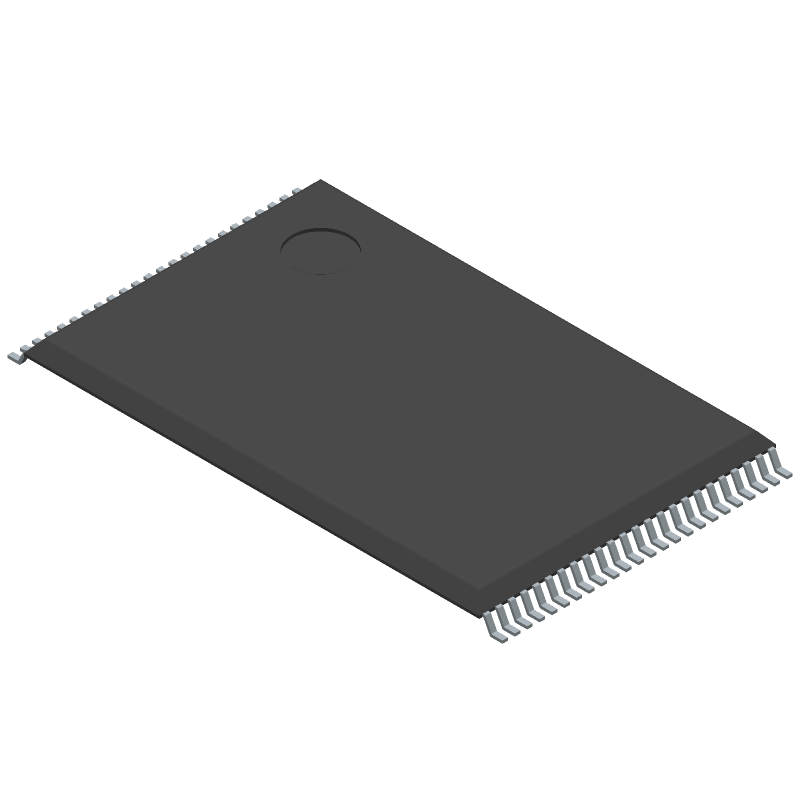

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IS34ML04G081-TLI by Integrated Silicon Solution Inc
Results Overview of IS34ML04G081-TLI by Integrated Silicon Solution Inc
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
IS34ML04G081-TLI Information
IS34ML04G081-TLI by Integrated Silicon Solution Inc is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for IS34ML04G081-TLI
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38AC3534
|
Newark | Flash Memory, 4Gbit, -40 To 85Deg C, Flash Memory Type:Slc Nand, Memory Configuration:512M X 8Bit, Interfaces:Parallel, Ic Case/Package:Tsop, No. Of Pins:48Pins, Clock Frequency Max:-, Access Time:25Ns, Supply Voltage Min:2.7V Rohs Compliant: Yes |Integrated Silicon Solution/issi IS34ML04G081-TLI RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 96 |
|
$5.5900 | Buy Now |
|
DISTI #
706-1634-ND
|
DigiKey | IC FLASH 4GBIT PARALLEL 48TSOP I Min Qty: 1 Lead time: 10 Weeks Container: Tray |
4325 In Stock |
|
$5.9375 / $7.4600 | Buy Now |
|
DISTI #
38AC3534
|
Avnet Americas | Flash Memory, SLC NAND, 4 Gbit, 512M x 8bit, Parallel, TSOP, 48 Pins - Bulk (Alt: 38AC3534) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks, 3 Days Container: Bulk | 96 Partner Stock |
|
$7.4900 / $9.6200 | Buy Now |
|
DISTI #
IS34ML04G081-TLI
|
Avnet Americas | Flash Memory, SLC NAND, 4 Gbit, 512M x 8bit, Parallel, TSOP, 48 Pins - Trays (Alt: IS34ML04G081-TLI) RoHS: Compliant Min Qty: 192 Package Multiple: 96 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$5.5114 / $5.6683 | Buy Now |
|
DISTI #
870-IS34ML04G081-TLI
|
Mouser Electronics | NAND Flash 4G 3V x8 1-bit NAND Flash RoHS: Compliant | 122 |
|
$5.9300 / $7.0200 | Buy Now |
|
DISTI #
32865280
|
Verical | SLC NAND Flash Parallel 3V/3.3V 4G-bit 512M x 8 48-Pin TSOP-I RoHS: Compliant Min Qty: 6 Package Multiple: 6 | Americas - 6 |
|
$12.8721 | Buy Now |
|
DISTI #
IS34ML04G081-TLI
|
Avnet Asia | Flash Memory, SLC NAND, 4 Gbit, 512M x 8bit, Parallel, TSOP, 48 Pins (Alt: IS34ML04G081-TLI) RoHS: Compliant Min Qty: 96 Package Multiple: 96 Lead time: 12 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
IS34ML04G081-TLI
|
Avnet Silica | Flash Memory SLC NAND 4 Gbit 512M x 8bit Parallel TSOP 48 Pins (Alt: IS34ML04G081-TLI) RoHS: Compliant Min Qty: 96 Package Multiple: 96 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
IS34ML04G081-TLI
|
Avnet Silica | LED Driver 72LEDs PWM 20Pin QFN TR (Alt: IS34ML04G081-TLI) RoHS: Compliant Min Qty: 96 Package Multiple: 96 Lead time: 28 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Cytech Systems Limited | IC FLASH 4GBIT PARALLEL 48TSOP I | 16992 |
|
RFQ |
Part Details for IS34ML04G081-TLI
IS34ML04G081-TLI CAD Models
IS34ML04G081-TLI Part Data Attributes
|
|
IS34ML04G081-TLI
Integrated Silicon Solution Inc
Buy Now
Datasheet
|
Compare Parts:
IS34ML04G081-TLI
Integrated Silicon Solution Inc
Flash, 512MX8, PDSO48, 12 X 20 MM, ROHS COMPLIANT, TSOP1-48
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INTEGRATED SILICON SOLUTION INC | |
| Package Description | TSOP1-48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 11 Weeks, 3 Days | |
| Samacsys Manufacturer | Integrated Silicon Solution Inc. | |
| JESD-30 Code | R-PDSO-G48 | |
| Length | 18.4 mm | |
| Memory Density | 4294967296 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Number of Words | 536870912 words | |
| Number of Words Code | 512000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 512MX8 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSOP1 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE | |
| Parallel/Serial | PARALLEL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Programming Voltage | 3.3 V | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Type | SLC NAND TYPE | |
| Width | 12 mm |
IS34ML04G081-TLI Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the IS34ML04G081-TLI is -40°C to 85°C.
-
The power-up sequence should be VCC first, then VPP, and then CLK. For power-down, the sequence should be reversed. It's also recommended to add a 10uF capacitor between VCC and GND to filter out noise.
-
The maximum clock frequency supported by the IS34ML04G081-TLI is 133MHz.
-
A reliable reset circuit can be implemented using a resistor-capacitor (RC) network with a diode to ensure a clean reset signal. The reset signal should be asserted for at least 10ms to ensure a proper reset.
-
The recommended layout and routing for the IS34ML04G081-TLI involves keeping the clock signal traces short and away from noisy signals, using a solid ground plane, and minimizing the length of the VCC and GND traces.
