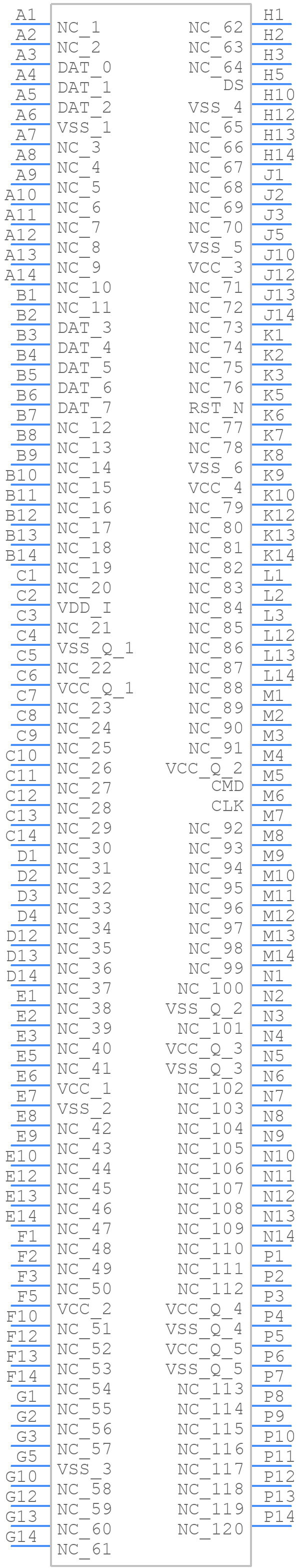

Part Symbol
-

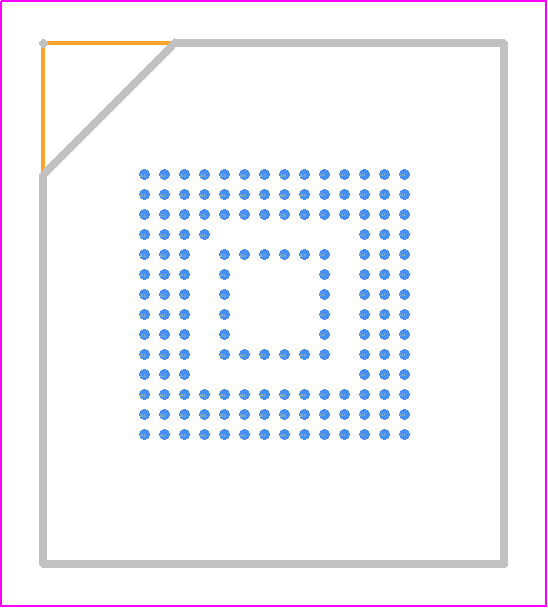

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IS21ES32G-JCLI by Integrated Silicon Solution Inc
Results Overview of IS21ES32G-JCLI by Integrated Silicon Solution Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
IS21ES32G-JCLI Information
IS21ES32G-JCLI by Integrated Silicon Solution Inc is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for IS21ES32G-JCLI
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
706-IS21ES32G-JCLI-ND
|
DigiKey | IC FLASH 256GBIT EMMC 153VFBGA Lead time: 8 Weeks Container: Tray | Limited Supply - Call |
|
Buy Now | |
|
DISTI #
IS21ES32G-JCLI
|
Avnet Silica | Flash Memory Card eMMC 50 32 GB (Alt: IS21ES32G-JCLI) RoHS: Compliant Min Qty: 152 Package Multiple: 152 Lead time: 44 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
IS21ES32G-JCLI
|
EBV Elektronik | Flash Memory Card eMMC 50 32 GB (Alt: IS21ES32G-JCLI) RoHS: Compliant Min Qty: 152 Package Multiple: 152 Lead time: 53 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for IS21ES32G-JCLI
IS21ES32G-JCLI CAD Models
IS21ES32G-JCLI Part Data Attributes
|
|
IS21ES32G-JCLI
Integrated Silicon Solution Inc
Buy Now
Datasheet
|
Compare Parts:
IS21ES32G-JCLI
Integrated Silicon Solution Inc
Flash, 32GX8, PBGA153, FBGA-153
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | INTEGRATED SILICON SOLUTION INC | |
| Package Description | VFBGA, BGA153,14X14,20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 53 Weeks, 1 Day | |
| Date Of Intro | 2016-09-13 | |
| Samacsys Manufacturer | Integrated Silicon Solution Inc. | |
| Alternate Memory Width | 1 | |
| Clock Frequency-Max (fCLK) | 200 MHz | |
| Command User Interface | NO | |
| Data Polling | NO | |
| JESD-30 Code | R-PBGA-B153 | |
| JESD-609 Code | e1 | |
| Length | 13 mm | |
| Memory Density | 274877906944 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 153 | |
| Number of Words | 34359738368 words | |
| Number of Words Code | 32000000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 32GX8 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA153,14X14,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Parallel/Serial | PARALLEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programming Voltage | 3.3 V | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Toggle Bit | NO | |
| Type | MLC NAND TYPE | |
| Width | 11.5 mm |
IS21ES32G-JCLI Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the IS21ES32G-JCLI is -40°C to 85°C.
-
The IS21ES32G-JCLI requires a power-on reset (POR) signal to initialize the device. The POR signal should be held low for at least 10ms to ensure proper initialization.
-
The IS21ES32G-JCLI supports clock frequencies up to 166 MHz.
-
The IS21ES32G-JCLI provides error detection and correction mechanisms, including ECC and parity checking. The device also has interrupt signals to notify the host processor of errors and exceptions.
-
The typical power consumption of the IS21ES32G-JCLI is around 150mA at 1.8V and 100MHz clock frequency.
