Drivers And Interfaces / Peripheral Drivers / IRS2001STRPBF
Datasheets
IRS2001STRPBF by:

Buffer/Inverter Based Peripheral Driver, CMOS, PDSO8, ROHS COMPLIANT, PLASTIC, MS-012AA, SOIC-8

Part Details for IRS2001STRPBF by Infineon Technologies AG

Results Overview of IRS2001STRPBF by Infineon Technologies AG

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Energy and Power Systems Renewable Energy Automotive Motor control systems

IRS2001STRPBF Information

IRS2001STRPBF by Infineon Technologies AG is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for IRS2001STRPBF

Part # Distributor Description Stock Price Buy
DISTI # 1704495
Farnell MOSFET, DR, HI/LO SIDE, 200V, 8SOIC RoHS: Compliant Min Qty: 1 Lead time: 27 Weeks, 1 Days Container: Each 3112
  • 1 $1.2971
  • 10 $1.1655
  • 50 $1.0850
  • 100 $1.0044
  • 250 $0.9171
  • 500 $0.8298
$0.8298 / $1.2971 Buy Now
DISTI # IRS2001STRPBFTR-ND
DigiKey IC GATE DRVR HALF-BRIDGE 8SOIC Min Qty: 2500 Lead time: 20 Weeks Container: Tape & Reel (TR) Limited Supply - Call
  • 2,500 $0.5704
  • 5,000 $0.5569
  • 7,500 $0.5501
  • 12,500 $0.5426
  • 17,500 $0.5382
$0.5382 / $0.5704 Buy Now
DISTI # IRS2001STRPBF
Avnet Americas MOSFET DRVR 200V 0.6A 2-OUT Hi/Lo Side Non-Inv 8-Pin SOIC T/R - Tape and Reel (Alt: IRS2001STRPBF) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.5096
  • 5,000 $0.5070
  • 10,000 $0.5044
  • 15,000 $0.5018
  • 20,000 $0.4992
$0.4992 / $0.5096 Buy Now
DISTI # 942-IRS2001STRPBF
Mouser Electronics Gate Drivers Hi&Lw Sd Drvr RoHS: Compliant 8135
  • 1 $2.0100
  • 10 $1.2900
  • 25 $1.1500
  • 100 $0.9410
  • 250 $0.8210
  • 500 $0.7780
  • 1,000 $0.6400
  • 2,500 $0.5260
  • 7,500 $0.5250
$0.5250 / $2.0100 Buy Now
Future Electronics IRS2001 Series Dual 20 V 600 mA Surface Mount High and Low Side Driver - SOIC-8 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks Container: Reel 2500
Reel
  • 2,500 $0.5300
  • 5,000 $0.5200
$0.5200 / $0.5300 Buy Now
DISTI # 89495378
Verical Driver 200V 2-OUT High Side/Low Side Non-Inv 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Date Code: 2515 Americas - 2500
  • 2,500 $0.8885
$0.8885 Buy Now
Bristol Electronics   14266
RFQ
Quest Components BUFFER/INVERTER BASED PERIPHERAL DRIVER, CMOS, PDSO8 11412
  • 1 $3.0000
  • 433 $1.2375
  • 809 $1.1250
$1.1250 / $3.0000 Buy Now
Future Electronics IRS2001 Series Dual 20 V 600 mA Surface Mount High and Low Side Driver - SOIC-8 Min Qty: 2500 Package Multiple: 2500 2500
null
  • 2,500 $0.5000
  • 5,000 $0.4950
  • 7,500 $0.4900
$0.4900 / $0.5000 Buy Now
DISTI # SP001534310
EBV Elektronik MOSFET DRVR 200V 06A 2OUT HiLo Side NonInv 8Pin SOIC TR (Alt: SP001534310) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 21 Weeks, 0 Days EBV - 0
Buy Now

Part Details for IRS2001STRPBF

IRS2001STRPBF CAD Models

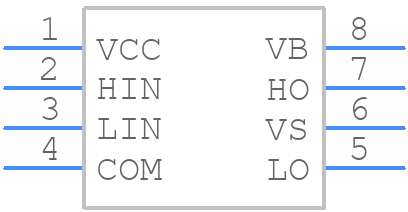

  • Part Symbol

    Part Symbol

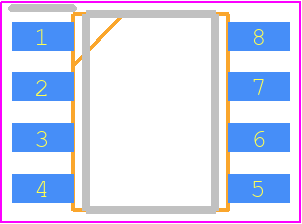

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

IRS2001STRPBF Part Data Attributes

Parametric Data
IRS2001STRPBF Infineon Technologies AG
Buy Now Datasheet
Compare Parts:
IRS2001STRPBF Infineon Technologies AG Buffer/Inverter Based Peripheral Driver, CMOS, PDSO8, ROHS COMPLIANT, PLASTIC, MS-012AA, SOIC-8
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer INFINEON TECHNOLOGIES AG
Package Description SOIC-8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 20 Weeks
Samacsys Manufacturer Infineon
Built-in Protections TRANSIENT; UNDER VOLTAGE
Interface IC Type BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 mm
Moisture Sensitivity Level 2
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current Flow Direction SOURCE AND SINK
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Max 20 V
Supply Voltage-Min 10 V
Supply Voltage-Nom 15 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Turn-off Time 0.22 µs
Turn-on Time 0.22 µs
Width 3.9 mm

Alternate Parts for IRS2001STRPBF

This table gives cross-reference parts and alternative options found for IRS2001STRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IRS2001STRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
IRS2001SPBF Infineon Technologies AG Check for Price Buffer/Inverter Based Peripheral Driver, CMOS, PDSO8, ROHS COMPLIANT, PLASTIC, MS-012AA, SOIC-8 IRS2001STRPBF vs IRS2001SPBF

IRS2001STRPBF Related Parts

IRS2001STRPBF Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the IRS2001STRPBF is -40°C to 150°C.

  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device.

  • A recommended PCB layout for the IRS2001STRPBF includes a solid ground plane, short and wide traces for power and signal lines, and a decoupling capacitor of at least 10uF near the device.

  • Overvoltage protection can be achieved using a TVS diode or a zener diode, while overcurrent protection can be achieved using a fuse or a current-sensing resistor.

  • The recommended gate drive voltage for the IRS2001STRPBF is between 10V and 15V, with a maximum voltage of 20V.
