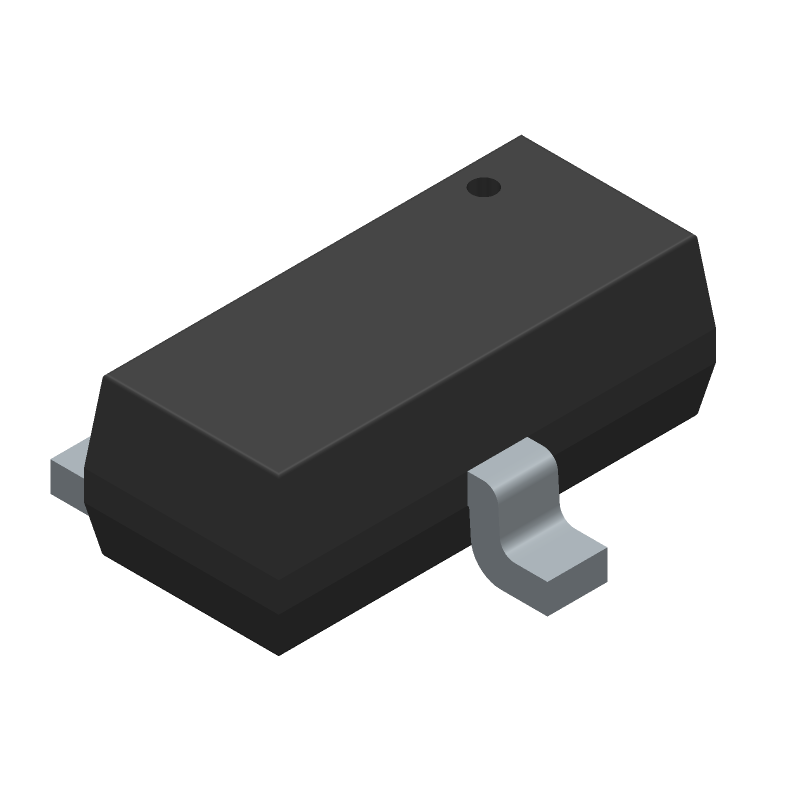

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IRLML0030TRPBF by Infineon Technologies AG
Results Overview of IRLML0030TRPBF by Infineon Technologies AG
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
IRLML0030TRPBF Information
IRLML0030TRPBF by Infineon Technologies AG is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for IRLML0030TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52R2613
|
Newark | N Channel Mosfet, 30V, 5.3A, Sot-23, Channel Type:N Channel, Drain Source Voltage Vds:30V, Continuous Drain Current Id:5.3A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:1.7V Rohs Compliant: Yes |Infineon IRLML0030TRPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 25340 |
|
$0.1640 / $0.4320 | Buy Now |
|
DISTI #
IRLML0030TRPBFCT-ND
|
DigiKey | MOSFET N-CH 30V 5.3A SOT23 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
135735 In Stock |
|
$0.0766 / $0.3700 | Buy Now |
|
DISTI #
IRLML0030TRPBF
|
Avnet Americas | Trans MOSFET N-CH 30V 5.3A 3-Pin SOT-23 T/R - Tape and Reel (Alt: IRLML0030TRPBF) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 6000 |
|
$0.0626 / $0.0639 | Buy Now |
|
DISTI #
52R2613
|
Avnet Americas | Trans MOSFET N-CH 30V 5.3A 3-Pin SOT-23 T/R - Product that comes on tape, but is not reeled (Alt: 52R2613) RoHS: Compliant Min Qty: 5 Package Multiple: 5 Lead time: 13 Weeks, 3 Days Container: Ammo Pack | 12244 Partner Stock |
|
$0.1730 / $0.3330 | Buy Now |
|
DISTI #
942-IRLML0030TRPBF
|
Mouser Electronics | MOSFETs MOSFT 30V 5.2A 28mOhm 3.6nC Qg RoHS: Compliant | 245079 |
|
$0.0740 / $0.3600 | Buy Now |
|
DISTI #
70019834
|
RS | IRLML0030TRPBF N-channel MOSFET Transistor, 5.3 A, 30 V, 3-Pin SOT-23 Min Qty: 20 Package Multiple: 1 Container: Bulk | 0 |
|
$0.1970 / $0.2820 | RFQ |
|
|
Future Electronics | Single N-Channel 30 V 40 mOhm 2.6 nC HEXFET® Power Mosfet - SOT-23 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Container: Reel | 39000Reel |
|
$0.0710 / $0.0763 | Buy Now |
|
|
Future Electronics | Single N-Channel 30 V 40 mOhm 2.6 nC HEXFET® Power Mosfet - SOT-23 RoHS: Compliant pbFree: Yes Min Qty: 6000 Package Multiple: 3000 Lead time: 12 Weeks Container: Reel | 0Reel |
|
$0.0710 / $0.0763 | Buy Now |
|
DISTI #
79357085
|
Verical | Trans MOSFET N-CH 30V 5.3A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 326 Package Multiple: 1 Date Code: 2247 | Americas - 382848 |
|
$0.0654 / $0.1310 | Buy Now |
|
DISTI #
79005781
|
Verical | Trans MOSFET N-CH 30V 5.3A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 341 Package Multiple: 1 Date Code: 2301 | Americas - 6000 |
|
$0.2029 / $0.2304 | Buy Now |
Part Details for IRLML0030TRPBF
IRLML0030TRPBF CAD Models
IRLML0030TRPBF Part Data Attributes
|
|
IRLML0030TRPBF
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
IRLML0030TRPBF
Infineon Technologies AG
Power Field-Effect Transistor, 5.3A I(D), 30V, 0.027ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-236AB, HALOGEN FREE AND ROHS COMPLIANT, MICRO-3
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Package Description | SOT-23, 3 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.95 | |
| Factory Lead Time | 13 Weeks, 3 Days | |
| Samacsys Manufacturer | Infineon | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 5.3 A | |
| Drain-source On Resistance-Max | 0.027 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 39 pF | |
| JEDEC-95 Code | TO-236AB | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation Ambient-Max | 1.3 W | |
| Power Dissipation-Max (Abs) | 1.3 W | |
| Pulsed Drain Current-Max (IDM) | 21 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
