IRLB8748PBF Information
IRLB8748PBF by Infineon Technologies AG is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for IRLB8748PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
39AH8954
|
Newark | Mosfet, N-Ch, 30V, 40A, 175Deg C, 75W, Transistor Polarity:N Channel, Continuous Drain Current Id:40A, Drain Source Voltage Vds:30V, On Resistance Rds(On):0.0038Ohm, Rds(On) Test Voltage Vgs:10V, Threshold Voltage Vgs:1.8V, Power Rohs Compliant: Yes |Infineon IRLB8748PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 827 |
|
$0.3550 / $0.9200 | Buy Now |
|
DISTI #
448-IRLB8748PBF-ND
|
DigiKey | MOSFET N-CH 30V 92A TO220AB Min Qty: 1 Lead time: 12 Weeks Container: Tube |
1198 In Stock |
|
$0.3355 / $1.2700 | Buy Now |
|
DISTI #
IRLB8748PBF
|
Avnet Americas | Trans MOSFET N-CH 30V 92A 3-Pin(3+Tab) TO-220AB Tube - Rail/Tube (Alt: IRLB8748PBF) RoHS: Compliant Min Qty: 50 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Tube | 1800 |
|
$0.2918 / $0.3185 | Buy Now |
|
DISTI #
39AH8954
|
Avnet Americas | Trans MOSFET N-CH 30V 92A 3-Pin(3+Tab) TO-220AB Tube - Rail/Tube (Alt: 39AH8954) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Tube | 250 Partner Stock |
|
$0.4330 / $0.9570 | Buy Now |
|
DISTI #
942-IRLB8748PBF
|
Mouser Electronics | MOSFETs MOSFT 30V 78A 4.8mOhm 15nC Qg RoHS: Compliant | 1611 |
|
$0.3470 / $1.2500 | Buy Now |
|
DISTI #
E02:0323_00277602
|
Arrow Electronics | Trans MOSFET N-CH Si 30V 92A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2513 | Europe - 8622 |
|
$0.3283 / $1.2107 | Buy Now |
|
DISTI #
70019229
|
RS | IRLB8748PBF N-channel MOSFET Transistor, 92 A, 30 V, 3-Pin TO-220AB Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$0.9300 / $1.1000 | RFQ |
|
DISTI #
88210503
|
Verical | Trans MOSFET N-CH Si 30V 92A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 21 Package Multiple: 1 Date Code: 2513 | Americas - 8610 |
|
$0.3294 / $0.8445 | Buy Now |
|
DISTI #
70794694
|
Verical | Trans MOSFET N-CH Si 30V 92A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 96 Package Multiple: 1 Date Code: 2206 | Americas - 6400 |
|
$0.3092 / $0.8050 | Buy Now |
|
DISTI #
85991604
|
Verical | Trans MOSFET N-CH Si 30V 92A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 661 Package Multiple: 1 Date Code: 2201 | Americas - 2000 |
|
$0.5681 | Buy Now |
Part Details for IRLB8748PBF

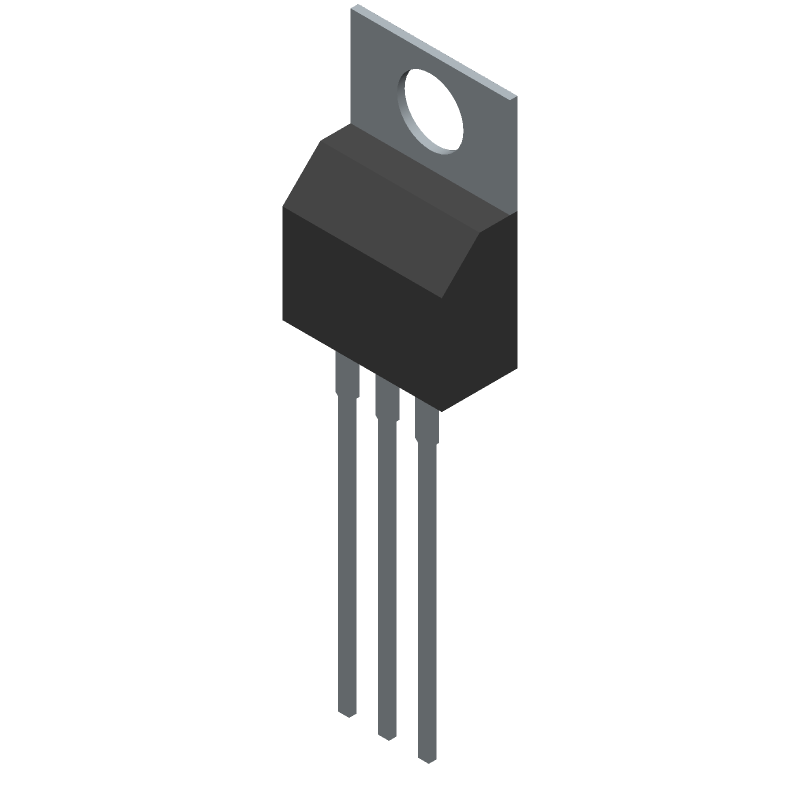

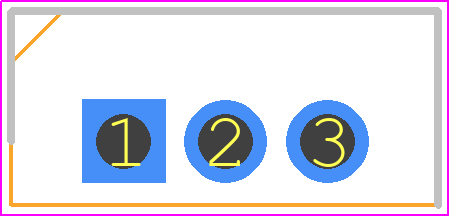

IRLB8748PBF CAD Models
IRLB8748PBF Part Data Attributes
|
|
IRLB8748PBF
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
IRLB8748PBF
Infineon Technologies AG
Power Field-Effect Transistor, 78A I(D), 30V, 0.0048ohm, 1-Element, N-Channel, Silicon, Metal-Oxide Semiconductor FET, TO-220AB, LEAD FREE, PLASTIC PACKAGE-3
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Infineon | |
| Avalanche Energy Rating (Eas) | 114 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 78 A | |
| Drain-source On Resistance-Max | 0.0048 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 175 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 75 W | |
| Pulsed Drain Current-Max (IDM) | 370 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
