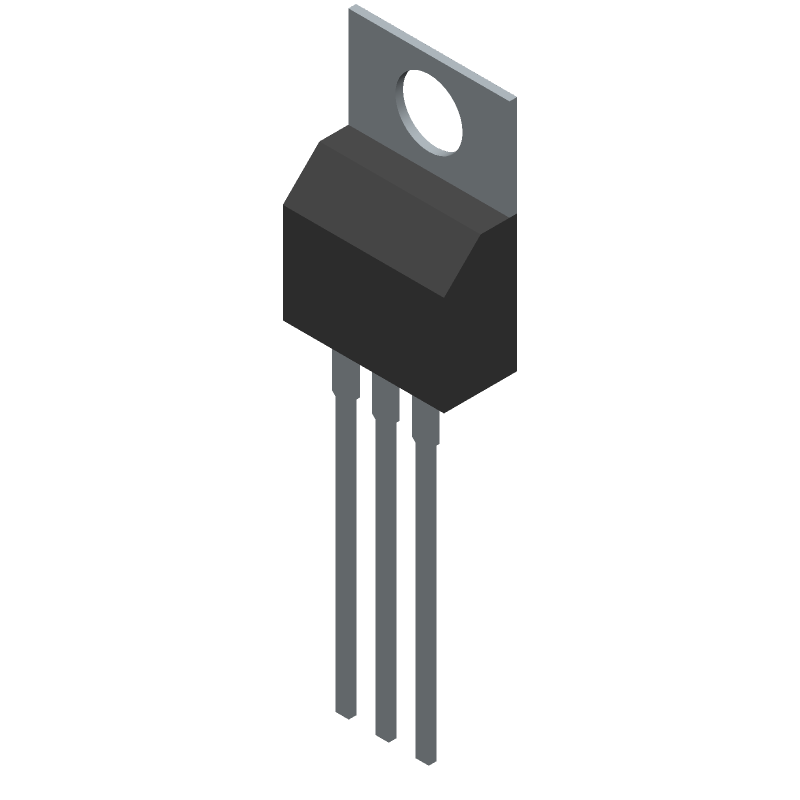

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IRF9Z24PBF by Vishay Intertechnologies
Results Overview of IRF9Z24PBF by Vishay Intertechnologies
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
IRF9Z24PBF Information
IRF9Z24PBF by Vishay Intertechnologies is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for IRF9Z24PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
56AJ9925
|
Newark | Mosfet, P-Ch, 60V, 11A, To-220 Rohs Compliant: Yes |Vishay IRF9Z24PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 817 |
|
$0.9710 / $1.0700 | Buy Now |
|
DISTI #
IRF9Z24PBF
|
Avnet Americas | MOSFET P-CH 60V 11A TO220AB - Bulk (Alt: IRF9Z24PBF) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
RFQ | |
|
DISTI #
844-IRF9Z24PBF
|
Mouser Electronics | MOSFETs TO220 P CHAN 60V RoHS: Compliant | 1955 |
|
$0.7520 / $1.6500 | Buy Now |
|
DISTI #
E02:0323_00194277
|
Arrow Electronics | Trans MOSFET P-CH 60V 11A 3-Pin(3+Tab) TO-220AB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2421 | Europe - 750 |
|
$0.4844 / $0.6988 | Buy Now |
|
DISTI #
V99:2348_09218666
|
Arrow Electronics | Trans MOSFET P-CH 60V 11A 3-Pin(3+Tab) TO-220AB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2138 | Americas - 126 |
|
$0.7871 / $0.8279 | Buy Now |
|
|
Future Electronics | Single P-Channel 60 V 0.28 Ohms Flange Mount Power Mosfet - TO-220AB RoHS: Compliant pbFree: Yes Min Qty: 50 Package Multiple: 50 Container: Tube | 450Tube |
|
$0.5850 / $0.6500 | Buy Now |
|
DISTI #
84439521
|
Verical | Trans MOSFET P-CH 60V 11A 3-Pin(3+Tab) TO-220AB RoHS: Compliant Min Qty: 22 Package Multiple: 1 Date Code: 2421 | Americas - 748 |
|
$0.8936 / $1.7048 | Buy Now |
|
DISTI #
62185448
|
Verical | Trans MOSFET P-CH 60V 11A 3-Pin(3+Tab) TO-220AB RoHS: Compliant Min Qty: 8 Package Multiple: 1 Date Code: 2138 | Americas - 126 |
|
$0.7871 | Buy Now |
|
DISTI #
IRF9Z24PBF
|
TTI | MOSFETs TO220 P CHAN 60V RoHS: Compliant pbFree: Pb-Free Min Qty: 50 Package Multiple: 50 Container: Tube |
Americas - 700 In Stock |
|
$0.5890 / $0.6630 | Buy Now |
|
|
Future Electronics | Single P-Channel 60 V 0.28 Ohms Flange Mount Power Mosfet - TO-220AB Min Qty: 50 Package Multiple: 50 |
450 null |
|
$0.5850 / $0.6500 | Buy Now |
Part Details for IRF9Z24PBF
IRF9Z24PBF CAD Models
IRF9Z24PBF Part Data Attributes
|
|
IRF9Z24PBF
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
IRF9Z24PBF
Vishay Intertechnologies
Power Field-Effect Transistor, 11A I(D), 60V, 0.28ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, ROHS COMPLIANT PACKAGE-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Part Package Code | TO-220AB | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | AVALANCHE RATED | |
| Avalanche Energy Rating (Eas) | 240 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 11 A | |
| Drain-source On Resistance-Max | 0.28 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 175 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | P-CHANNEL | |
| Power Dissipation-Max (Abs) | 60 W | |
| Pulsed Drain Current-Max (IDM) | 44 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
