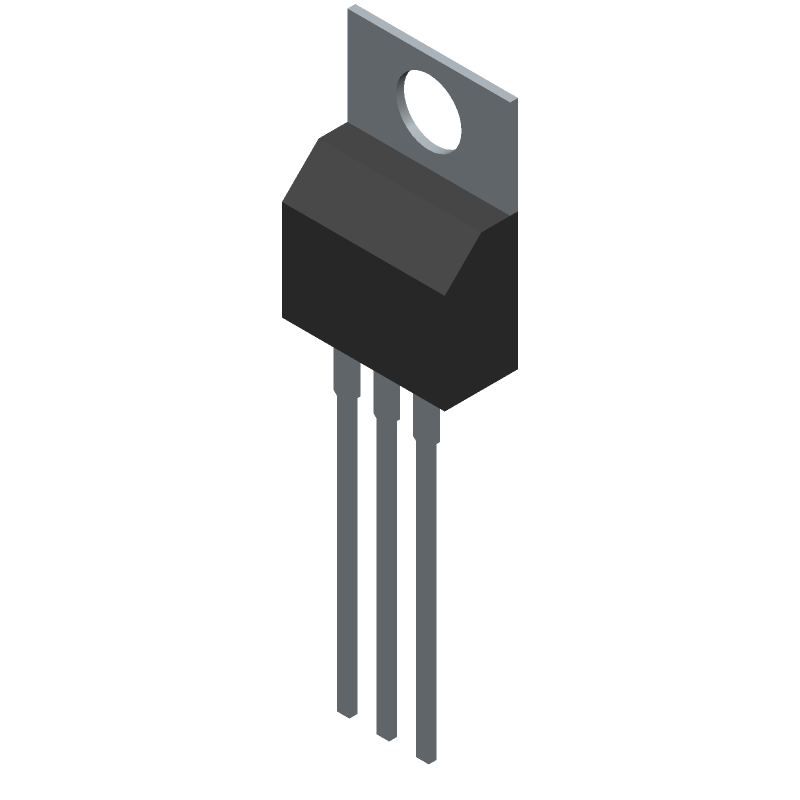

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IRF9Z24NPBF by Infineon Technologies AG
Results Overview of IRF9Z24NPBF by Infineon Technologies AG
- Distributor Offerings: (23 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
IRF9Z24NPBF Information
IRF9Z24NPBF by Infineon Technologies AG is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for IRF9Z24NPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
8648670
|
Farnell | MOSFET, P, -55V, -12A, TO-220 RoHS: Compliant Min Qty: 1 Lead time: 19 Weeks, 1 Days Container: Each | 2175 |
|
$0.3051 / $0.6102 | Buy Now |
|
DISTI #
IRF9Z24NPBF-ND
|
DigiKey | MOSFET P-CH 55V 12A TO220AB Min Qty: 1 Lead time: 18 Weeks Container: Tube | Temporarily Out of Stock |
|
$0.2652 / $0.6100 | Buy Now |
|
DISTI #
IRF9Z24NPBF
|
Avnet Americas | Trans MOSFET P-CH 55V 12A 3-Pin(3+Tab) TO-220AB - Rail/Tube (Alt: IRF9Z24NPBF) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 18 Weeks, 0 Days Container: Tube | 0 |
|
$0.2088 / $0.2132 | Buy Now |
|
DISTI #
942-IRF9Z24NPBF
|
Mouser Electronics | MOSFETs MOSFT PCh -55V -12A 175mOhm 12.7nC RoHS: Compliant | 4755 |
|
$0.2700 / $0.5800 | Buy Now |
|
DISTI #
E02:0323_00010967
|
Arrow Electronics | Trans MOSFET P-CH Si 55V 12A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2439 | Europe - 2979 |
|
$0.2532 / $0.5744 | Buy Now |
|
DISTI #
V99:2348_06385269
|
Arrow Electronics | Trans MOSFET P-CH Si 55V 12A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2136 | Americas - 2086 |
|
$0.2175 | Buy Now |
|
DISTI #
V36:1790_06385269
|
Arrow Electronics | Trans MOSFET P-CH Si 55V 12A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1000 Package Multiple: 1000 Lead time: 18 Weeks Date Code: 2413 | Americas - 400 |
|
$0.2241 / $0.2373 | Buy Now |
|
DISTI #
70017017
|
RS | MOSFET, Power, P-Ch, VDSS -55V, RDS(ON) 0.175Ohm, ID -12A, TO-220AB, PD 45W, VGS +/-20V Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$0.4810 / $0.5660 | RFQ |
|
DISTI #
85024446
|
Verical | Trans MOSFET P-CH Si 55V 12A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 27 Package Multiple: 1 Date Code: 2439 | Americas - 2970 |
|
$0.2539 / $0.5181 | Buy Now |
|
DISTI #
59366693
|
Verical | Trans MOSFET P-CH Si 55V 12A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 99 Package Multiple: 1 Date Code: 2136 | Americas - 2430 |
|
$0.4520 / $0.5330 | Buy Now |
Part Details for IRF9Z24NPBF
IRF9Z24NPBF CAD Models
IRF9Z24NPBF Part Data Attributes
|
|
IRF9Z24NPBF
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
IRF9Z24NPBF
Infineon Technologies AG
Power Field-Effect Transistor, 12A I(D), 55V, 0.175ohm, 1-Element, P-Channel, Silicon, Metal-Oxide Semiconductor FET, TO-220AB, LEAD FREE PACKAGE-3
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | Infineon | |
| Additional Feature | AVALANCHE RATED, HIGH RELIABILITY | |
| Avalanche Energy Rating (Eas) | 96 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 55 V | |
| Drain Current-Max (ID) | 12 A | |
| Drain-source On Resistance-Max | 0.175 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 175 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity/Channel Type | P-CHANNEL | |
| Power Dissipation-Max (Abs) | 45 W | |
| Pulsed Drain Current-Max (IDM) | 48 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
IRF9Z24NPBF Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the IRF9Z24NPBF is -55°C to 175°C.
-
Yes, the IRF9Z24NPBF is a logic-level MOSFET, which means it can be driven directly from a microcontroller or other low-voltage logic source.
-
The maximum current rating for the IRF9Z24NPBF is 24A.
-
Yes, the IRF9Z24NPBF is suitable for high-frequency switching applications due to its low gate charge and fast switching times.
-
The IRF9Z24NPBF comes in a TO-220AB package.
