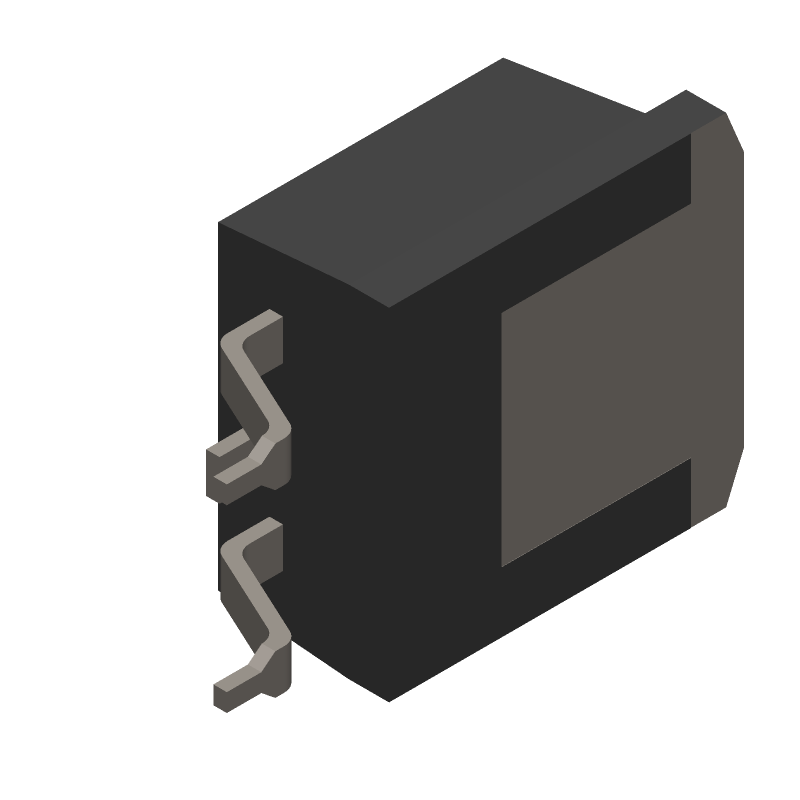

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IRF9610SPBF by Vishay Intertechnologies
Results Overview of IRF9610SPBF by Vishay Intertechnologies
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
IRF9610SPBF Information
IRF9610SPBF by Vishay Intertechnologies is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for IRF9610SPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
56AJ9929
|
Newark | Mosfet, P-Ch, 200V, 1.8A, To-263 Rohs Compliant: Yes |Vishay IRF9610SPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 219 |
|
$1.0500 / $2.3900 | Buy Now |
|
DISTI #
IRF9610SPBF
|
Avnet Americas | MOSFET P-CHANNEL 200V - Tape and Reel (Alt: IRF9610SPBF) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.7412 / $0.7875 | Buy Now |
|
DISTI #
844-IRF9610SPBF
|
Mouser Electronics | MOSFETs TO263 200V 1.8A P-CH MOSFET RoHS: Compliant | 2056 |
|
$0.7870 / $2.1600 | Buy Now |
|
DISTI #
IRF9610SPBF
|
TTI | MOSFETs TO263 200V 1.8A P-CH MOSFET RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 50 Container: Tube | Americas - 0 |
|
$0.7700 / $0.8200 | Buy Now |
|
DISTI #
IRF9610SPBF
|
TME | Transistor: P-MOSFET, unipolar, -200V, -1.8A, Idm: -7A, 20W Min Qty: 1 | 0 |
|
$0.6100 / $1.6500 | RFQ |
|
DISTI #
IRF9610SPBF
|
EBV Elektronik | MOSFET PCHANNEL 200V (Alt: IRF9610SPBF) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 9 Weeks, 0 Days | EBV - 2850 |
|
Buy Now | |
|
|
LCSC | 200V 1.8A 310V0.9A 20W 2V 1 piece P-channel D2PAK MOSFETs ROHS | 392 |
|
$1.0514 / $1.9939 | Buy Now |
|
|
New Advantage Corporation | SOT-23-5 RoHS: Compliant Min Qty: 1 Package Multiple: 50 | 2300 |
|
$1.6700 / $1.8100 | Buy Now |
Part Details for IRF9610SPBF
IRF9610SPBF CAD Models
IRF9610SPBF Part Data Attributes
|
|
IRF9610SPBF
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
IRF9610SPBF
Vishay Intertechnologies
Power Field-Effect Transistor, 1.8A I(D), 200V, 3ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, ROHS COMPLIANT, PLASTIC, SMD-220, D2PAK-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 200 V | |
| Drain Current-Max (ID) | 1.8 A | |
| Drain-source On Resistance-Max | 3 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | P-CHANNEL | |
| Power Dissipation-Max (Abs) | 20 W | |
| Pulsed Drain Current-Max (IDM) | 7 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
IRF9610SPBF Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the IRF9610SPBF is -55°C to 175°C.
-
To ensure reliability, ensure proper thermal management, use a suitable heat sink, and follow the recommended PCB layout and assembly guidelines.
-
The maximum allowable voltage for the IRF9610SPBF is 200V.
-
Handle the device by the body, use an anti-static wrist strap, and store the device in an anti-static bag or container to prevent ESD damage.
-
The recommended gate drive voltage for the IRF9610SPBF is 10V to 15V.
