Transistors / Power Field-Effect Transistors / IRF830APBF
Datasheets
IRF830APBF by:

Power Field-Effect Transistor, 5A I(D), 500V, 1.4ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, ROHS COMPLIANT PACKAGE-3

Part Details for IRF830APBF by Vishay Intertechnologies

Results Overview of IRF830APBF by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

IRF830APBF Information

IRF830APBF by Vishay Intertechnologies is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for IRF830APBF

Part # Distributor Description Stock Price Buy
DISTI # 63J7407
Newark N Channel Mosfet, 500V, 5A, To-220, Channel Type:N Channel, Drain Source Voltage Vds:500V, Continuous Drain Current Id:5A, Transistor Mounting:Through Hole, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:4.5V, Msl:- Rohs Compliant: Yes |Vishay IRF830APBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 270
  • 1 $0.7720
  • 10 $0.7720
  • 25 $0.7720
  • 50 $0.7720
  • 100 $0.7720
  • 500 $0.7720
  • 1,000 $0.7720
$0.7720 Buy Now
DISTI # IRF830APBF
Avnet Americas Power MOSFET, N Channel, 500 V, 5 A, 1.4 ohm, TO-220AB, Through Hole - Bulk (Alt: IRF830APBF) RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk 650
  • 1,000 $0.8738
  • 1,100 $0.8598
  • 2,100 $0.8462
  • 5,000 $0.8321
  • 10,000 $0.8224
$0.8224 / $0.8738 Buy Now
DISTI # 63J7407
Avnet Americas Power MOSFET, N Channel, 500 V, 5 A, 1.4 ohm, TO-220AB, Through Hole - Bulk (Alt: 63J7407) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks, 3 Days Container: Bulk 270 Partner Stock
  • 1 $1.6700
  • 10 $1.1900
  • 25 $1.1500
  • 50 $1.1200
  • 100 $1.0800
$1.0800 / $1.6700 Buy Now
DISTI # 844-IRF830APBF
Mouser Electronics MOSFETs RECOMMENDED ALT IRF8 RoHS: Compliant 1931
  • 1 $1.6800
  • 10 $1.4200
  • 25 $1.1200
  • 100 $0.9740
  • 500 $0.9620
  • 1,000 $0.9070
  • 2,000 $0.8840
  • 5,000 $0.8730
$0.8730 / $1.6800 Buy Now
DISTI # 70078864
RS MOSFET, Power, N-Ch, VDSS 500V, RDS(ON) 1.4 Ohms, ID 5A, TO-220AB, PD 74W, VGS +/-30V Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Container: Bulk 945
  • 1 $0.7700
$0.7700 Buy Now
Future Electronics Single N-Channel 500 V 1.4 Ohms Flange Mount Power Mosfet - TO-220-3 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Container: Tube 730
Tube
  • 1 $0.7350
  • 40 $0.7150
  • 150 $0.6950
  • 500 $0.6800
  • 2,000 $0.6450
$0.6450 / $0.7350 Buy Now
DISTI # 88210293
Verical Trans MOSFET N-CH 500V 5A 3-Pin(3+Tab) TO-220AB RoHS: Compliant Min Qty: 18 Package Multiple: 1 Date Code: 2513 Americas - 3707
  • 18 $0.5559
$0.5559 Buy Now
DISTI # 69063841
Verical Trans MOSFET N-CH 500V 5A 3-Pin(3+Tab) TO-220AB RoHS: Compliant Min Qty: 50 Package Multiple: 1 Date Code: 2315 Americas - 68
  • 50 $1.6400
$1.6400 Buy Now
Future Electronics Single N-Channel 500 V 1.4 Ohms Flange Mount Power Mosfet - TO-220-3 Min Qty: 1 Package Multiple: 1 730
null
  • 1 $0.6900
  • 50 $0.6750
  • 200 $0.6600
  • 750 $0.6400
  • 2,500 $0.6100
$0.6100 / $0.6900 Buy Now
DISTI # IRF830APBF
TME Transistor: N-MOSFET, unipolar, 500V, 3.2A, Idm: 20A, 74W, TO220AB Min Qty: 1 762
  • 1 $1.1200
  • 10 $0.5870
  • 100 $0.5610
  • 250 $0.5400
  • 500 $0.5040
  • 1,000 $0.4850
  • 2,000 $0.4700
$0.4700 / $1.1200 Buy Now
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 0
Stock ES - 500
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # IRF830APBF
EBV Elektronik Power MOSFET N Channel 500 V 5 A 14 ohm TO220AB Through Hole (Alt: IRF830APBF) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 9 Weeks, 0 Days EBV - 83850
Buy Now
New Advantage Corporation FixedResistor,MetalGlaze/thickFilm,0.1W,3320ohm,75V,1%+/-Tol,100ppm/Cel,SurfaceMount,0603 RoHS: Compliant Min Qty: 1 Package Multiple: 50 67100
  • 150 $1.4700
  • 67,100 $1.3600
$1.3600 / $1.4700 Buy Now

Part Details for IRF830APBF

IRF830APBF CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

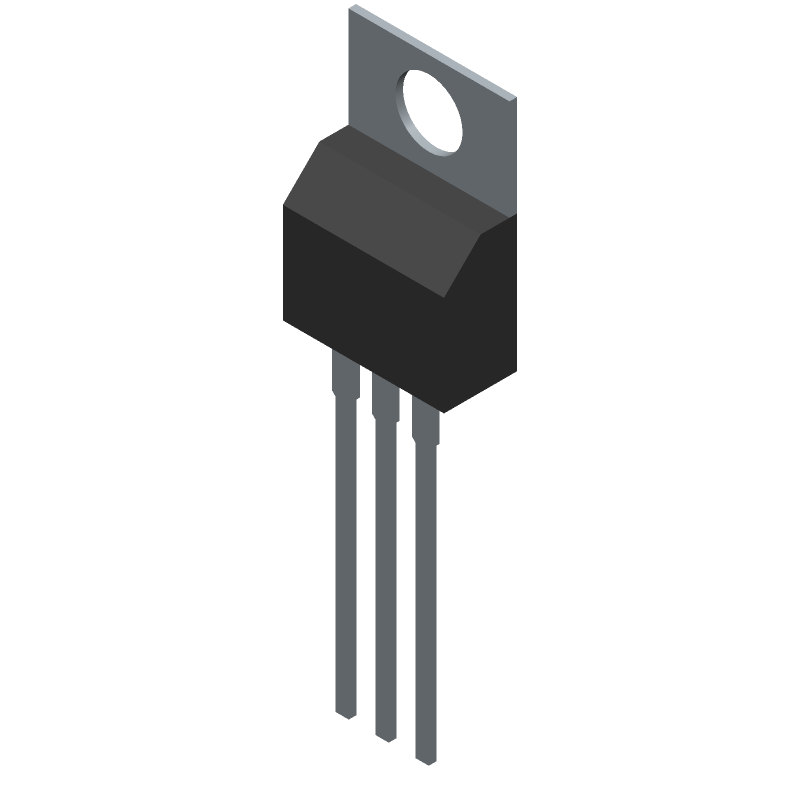

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

IRF830APBF Part Data Attributes

Parametric Data
IRF830APBF Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
IRF830APBF Vishay Intertechnologies Power Field-Effect Transistor, 5A I(D), 500V, 1.4ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, ROHS COMPLIANT PACKAGE-3
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Part Package Code TO-220AB
Pin Count 3
Reach Compliance Code not_compliant
ECCN Code EAR99
Factory Lead Time 8 Weeks
Samacsys Manufacturer Vishay
Avalanche Energy Rating (Eas) 230 mJ
Configuration SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min 500 V
Drain Current-Max (ID) 5 A
Drain-source On Resistance-Max 1.4 Ω
FET Technology METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss) 4.3 pF
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e3
Number of Elements 1
Number of Terminals 3
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 74 W
Pulsed Drain Current-Max (IDM) 20 A
Qualification Status Not Qualified
Surface Mount NO
Terminal Finish MATTE TIN
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 30
Transistor Application SWITCHING
Transistor Element Material SILICON

Alternate Parts for IRF830APBF

This table gives cross-reference parts and alternative options found for IRF830APBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IRF830APBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
IRF830A Vishay Intertechnologies Check for Price Power Field-Effect Transistor, 5A I(D), 500V, 1.4ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220AB, 3 PIN IRF830APBF vs IRF830A
Part Number Manufacturer Composite Price Description Compare
IRF830A Motorola Semiconductor Products Check for Price Power Field-Effect Transistor, 4.5A I(D), 500V, 1.5ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB IRF830APBF vs IRF830A
IRF830A Samsung Semiconductor Check for Price Power Field-Effect Transistor, 4.5A I(D), 500V, 1.5ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220, 3 PIN IRF830APBF vs IRF830A
IRF830A Motorola Mobility LLC Check for Price 4.5A, 500V, 1.5ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB IRF830APBF vs IRF830A
IRF830APBF Vishay Siliconix Check for Price Power Field-Effect Transistor, 5A I(D), 500V, 1.4ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, ROHS COMPLIANT, TO-220, 3 PIN IRF830APBF vs IRF830APBF
IRF830A International Rectifier Check for Price Power Field-Effect Transistor, 5A I(D), 500V, 1.4ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220AB, 3 PIN IRF830APBF vs IRF830A

IRF830APBF Related Parts

IRF830APBF Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the IRF830APBF is -55°C to 175°C.

  • Yes, the IRF830APBF is a logic-level MOSFET, which means it can be driven directly from a microcontroller or other low-voltage logic source.

  • The maximum current rating for the IRF830APBF is 12A.

  • Yes, the IRF830APBF is suitable for high-frequency switching applications due to its low gate charge and fast switching times.

  • The IRF830APBF comes in a TO-220AB package.
