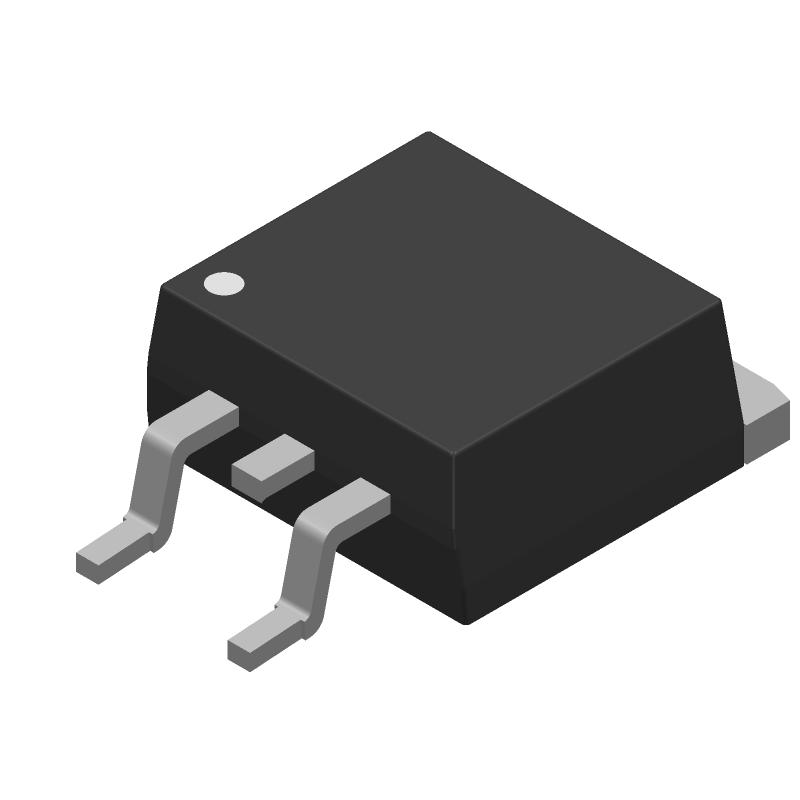

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IRF740ASPBF by Vishay Intertechnologies
Results Overview of IRF740ASPBF by Vishay Intertechnologies
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Energy and Power Systems
Renewable Energy
IRF740ASPBF Information
IRF740ASPBF by Vishay Intertechnologies is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for IRF740ASPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
8657815
|
Farnell | MOSFET, N, 400V, 10A, D2-PAK RoHS: Compliant Min Qty: 1 Lead time: 25 Weeks, 1 Days Container: Each | 369 |
|
$1.0681 / $2.7695 | Buy Now |
|
DISTI #
IRF740ASPBF
|
Avnet Americas | Power MOSFET, N Channel, 400 V, 10 A, 0.55 ohm, TO-263 (D2PAK), Surface Mount - Bulk (Alt: IRF740ASPBF) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 34 Weeks, 0 Days Container: Bulk | 0 |
|
$1.1753 / $1.2488 | Buy Now |
|
DISTI #
844-IRF740ASPBF
|
Mouser Electronics | MOSFETs N-Chan 400V 10 Amp RoHS: Compliant | 33711 |
|
$0.9890 / $2.5500 | Buy Now |
|
DISTI #
E02:0323_00193424
|
Arrow Electronics | Trans MOSFET N-CH 400V 10A 3-Pin(2+Tab) D2PAK Min Qty: 1 Package Multiple: 1 Lead time: 34 Weeks Date Code: 2511 | Europe - 1095 |
|
$0.9138 / $1.0749 | Buy Now |
|
DISTI #
88037170
|
Verical | Trans MOSFET N-CH 400V 10A 3-Pin(2+Tab) D2PAK Min Qty: 9 Package Multiple: 1 Date Code: 2511 | Americas - 1089 |
|
$0.9162 / $1.0779 | Buy Now |
|
DISTI #
IRF740ASPBF
|
TTI | MOSFETs N-Chan 400V 10 Amp RoHS: Compliant pbFree: Pb-Free Min Qty: 50 Package Multiple: 50 Container: Tube |
Americas - 1500 In Stock |
|
$1.1000 | Buy Now |
|
DISTI #
IRF740ASPBF
|
TME | Transistor: N-MOSFET, unipolar, 400V, 6.3A, 125W, D2PAK,TO263 Min Qty: 1 | 1245 |
|
$1.0300 / $2.2400 | Buy Now |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 32 |
|
$1.2500 / $1.9200 | Buy Now |
|
DISTI #
IRF740ASPBF
|
EBV Elektronik | Power MOSFET N Channel 400 V 10 A 055 ohm TO263 D2PAK Surface Mount (Alt: IRF740ASPBF) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 35 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | 400V 10A 550m10V6A 4V 1 N-channel D2PAK MOSFETs ROHS | 1354 |
|
$0.9646 / $1.2473 | Buy Now |
Part Details for IRF740ASPBF
IRF740ASPBF CAD Models
IRF740ASPBF Part Data Attributes
|
|
IRF740ASPBF
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
IRF740ASPBF
Vishay Intertechnologies
Power Field-Effect Transistor, 10A I(D), 400V, 0.55ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, LEAD FREE, PLASTIC, D2PAK-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 34 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Avalanche Energy Rating (Eas) | 630 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 400 V | |
| Drain Current-Max (ID) | 10 A | |
| Drain-source On Resistance-Max | 0.55 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 125 W | |
| Pulsed Drain Current-Max (IDM) | 40 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
Alternate Parts for IRF740ASPBF
This table gives cross-reference parts and alternative options found for IRF740ASPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IRF740ASPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| IRF740ASTRR | International Rectifier | Check for Price | Power Field-Effect Transistor, 10A I(D), 400V, 0.55ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, D2PAK-3 | IRF740ASPBF vs IRF740ASTRR |
IRF740ASPBF Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the IRF740ASPBF is -55°C to 175°C.
-
Yes, the IRF740ASPBF is a logic-level MOSFET, which means it can be driven directly from a microcontroller or other low-voltage logic source.
-
The maximum current rating for the IRF740ASPBF is 23A.
-
Yes, the IRF740ASPBF is suitable for high-frequency switching applications due to its low gate charge and fast switching times.
-
The IRF740ASPBF comes in a TO-220AB package.
