Transistors / Power Field-Effect Transistors / IRF740APBF
Datasheets
IRF740APBF by:

Power Field-Effect Transistor, 10A I(D), 400V, 0.55ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, ROHS COMPLIANT PACKAGE-3

Part Details for IRF740APBF by Vishay Intertechnologies

Results Overview of IRF740APBF by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Industrial Automation Energy and Power Systems Renewable Energy

IRF740APBF Information

IRF740APBF by Vishay Intertechnologies is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for IRF740APBF

Part # Distributor Description Stock Price Buy
DISTI # 38K2845
Newark Mosfet Transistor, N Channel, 10 A, 400 V, 550 Mohm, 10 V, 4 V Rohs Compliant: Yes |Vishay IRF740APBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 2233
  • 1 $0.5170
  • 10 $0.5170
  • 25 $0.5170
  • 50 $0.5170
  • 100 $0.5170
  • 500 $0.5170
  • 1,000 $0.5170
$0.5170 Buy Now
DISTI # IRF740APBF
Avnet Americas MOSFET N-CHANNEL 400V - Bulk (Alt: IRF740APBF) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 34 Weeks, 0 Days Container: Bulk 0
RFQ
DISTI # 38K2845
Avnet Americas MOSFET N-CHANNEL 400V - Bulk (Alt: 38K2845) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 3 Days Container: Bulk 0
  • 1 $2.8500
  • 10 $1.5100
  • 25 $1.4900
  • 50 $1.4600
  • 100 $1.4400
$1.4400 / $2.8500 Buy Now
DISTI # 844-IRF740APBF
Mouser Electronics MOSFETs TO220 400V 10A N-CH MOSFET RoHS: Compliant 2996
  • 1 $2.5300
  • 10 $2.3200
  • 25 $1.2400
  • 100 $1.1400
  • 250 $1.0100
  • 1,000 $1.0000
$1.0000 / $2.5300 Buy Now
DISTI # 70078858
RS MOSFET, Power, N-Ch, VDSS 400V, RDS(ON) 0.55Ohm, ID 10A, TO-220AB, PD 125W, VGS +/-30V Min Qty: 1 Package Multiple: 1 Container: Bulk 190
  • 1 $2.6800
  • 5 $2.4600
  • 10 $2.3600
  • 100 $2.1400
  • 250 $2.0100
$2.0100 / $2.6800 Buy Now
Future Electronics Single N-Channel 400 V 0.55 Ohms Flange Mount Power Mosfet - TO-220-3 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Container: Tube 657
Tube
  • 1 $0.7650
  • 40 $0.7400
  • 150 $0.7200
  • 500 $0.7050
  • 2,000 $0.6650
$0.6650 / $0.7650 Buy Now
DISTI # 69264713
Verical Trans MOSFET N-CH 400V 10A 3-Pin(3+Tab) TO-220AB Min Qty: 38 Package Multiple: 1 Date Code: 2321 Americas - 140
  • 38 $2.5900
$2.5900 Buy Now
DISTI # 66983968
Verical Trans MOSFET N-CH 400V 10A 3-Pin(3+Tab) TO-220AB Min Qty: 97 Package Multiple: 1 Americas - 98
  • 97 $1.2144
$1.2144 Buy Now
Bristol Electronics   28
RFQ
DISTI # IRF740APBF
TTI MOSFETs TO220 400V 10A N-CH MOSFET RoHS: Compliant pbFree: Pb-Free Min Qty: 50 Package Multiple: 50 Container: Tube Americas - 300
In Stock
  • 50 $0.9000
  • 100 $0.7000
  • 250 $0.6800
  • 500 $0.6600
  • 1,000 $0.6200
  • 2,000 $0.6100
$0.6100 / $0.9000 Buy Now
Future Electronics Single N-Channel 400 V 0.55 Ohms Flange Mount Power Mosfet - TO-220-3 Min Qty: 1 Package Multiple: 1 657
null
  • 1 $0.7650
  • 40 $0.7400
  • 150 $0.7200
  • 500 $0.7050
  • 2,000 $0.6650
$0.6650 / $0.7650 Buy Now
DISTI # IRF740APBF
TME Transistor: N-MOSFET, unipolar, 400V, 6.3A, 125W, TO220AB Min Qty: 1 516
  • 1 $1.6000
  • 10 $1.2500
  • 50 $1.1200
  • 100 $1.0700
  • 500 $0.9500
$0.9500 / $1.6000 Buy Now
DISTI # SMC-IRF740APBF
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 7515
RFQ
DISTI # IRF740APBF
Avnet Asia MOSFET N-CHANNEL 400V (Alt: IRF740APBF) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 26 Weeks, 0 Days 0
RFQ
DISTI # IRF740APBF
EBV Elektronik MOSFET NCHANNEL 400V (Alt: IRF740APBF) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 35 Weeks, 0 Days EBV - 750
Buy Now
LCSC 400V 6.3A 0.5510V6A 125W 4V 1 N-channel TO-220AB-3 MOSFETs ROHS 851
  • 1 $1.8187
  • 10 $1.5345
  • 30 $1.3561
  • 100 $1.1747
  • 500 $1.0931
  • 1,000 $1.0568
$1.0568 / $1.8187 Buy Now
Vyrian Transistors 770
RFQ

Part Details for IRF740APBF

IRF740APBF CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

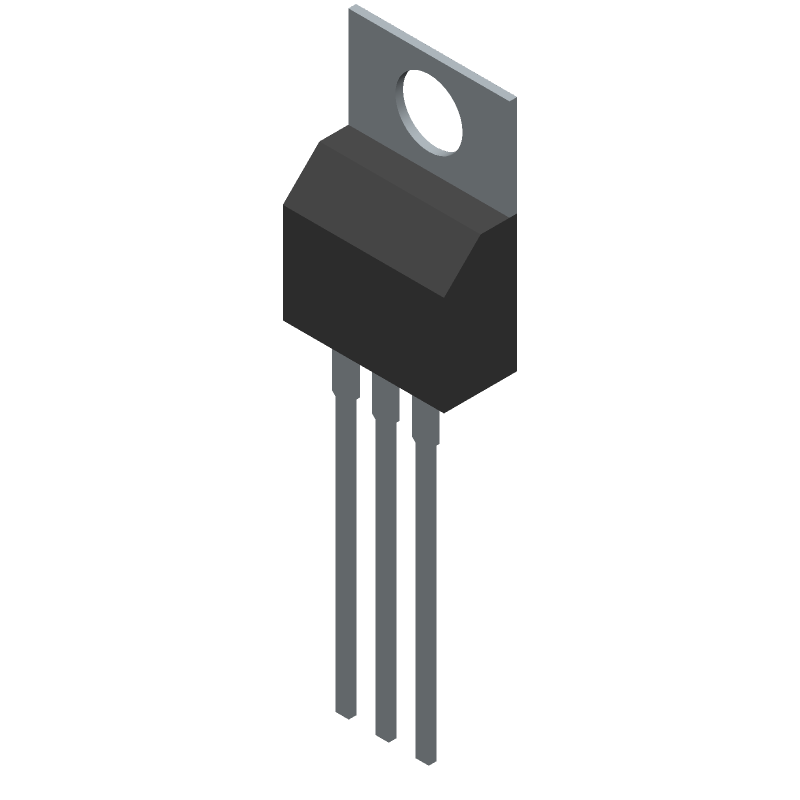

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

IRF740APBF Part Data Attributes

Parametric Data
IRF740APBF Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
IRF740APBF Vishay Intertechnologies Power Field-Effect Transistor, 10A I(D), 400V, 0.55ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, ROHS COMPLIANT PACKAGE-3
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Part Package Code TO-220AB
Pin Count 3
Reach Compliance Code not_compliant
ECCN Code EAR99
Factory Lead Time 34 Weeks
Samacsys Manufacturer Vishay
Avalanche Energy Rating (Eas) 630 mJ
Case Connection DRAIN
Configuration SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min 400 V
Drain Current-Max (ID) 10 A
Drain-source On Resistance-Max 0.55 Ω
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e3
Number of Elements 1
Number of Terminals 3
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 125 W
Pulsed Drain Current-Max (IDM) 40 A
Qualification Status Not Qualified
Surface Mount NO
Terminal Finish MATTE TIN
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Transistor Application SWITCHING
Transistor Element Material SILICON

Alternate Parts for IRF740APBF

This table gives cross-reference parts and alternative options found for IRF740APBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IRF740APBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
IRF740A Rochester Electronics LLC Check for Price 10A, 400V, 0.55ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, TO-220AB, 3 PIN IRF740APBF vs IRF740A
IRF740A International Rectifier Check for Price Power Field-Effect Transistor, 10A I(D), 400V, 0.55ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220AB, 3 PIN IRF740APBF vs IRF740A
Part Number Manufacturer Composite Price Description Compare
IRF740A Samsung Semiconductor Check for Price Power Field-Effect Transistor, 10A I(D), 400V, 0.55ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220, 3 PIN IRF740APBF vs IRF740A
IRF740A Vishay Intertechnologies Check for Price Power Field-Effect Transistor, 10A I(D), 400V, 0.55ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220AB, 3 PIN IRF740APBF vs IRF740A
IRF740APBF International Rectifier Check for Price Power Field-Effect Transistor, 10A I(D), 400V, 0.55ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, LEAD FREE PACKAGE-3 IRF740APBF vs IRF740APBF
IRF740APBF Vishay Siliconix Check for Price Power Field-Effect Transistor, 10A I(D), 400V, 0.55ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, ROHS COMPLIANT, TO-220, 3 PIN IRF740APBF vs IRF740APBF
IRF740A Motorola Mobility LLC Check for Price 10A, 400V, 0.55ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB IRF740APBF vs IRF740A
IRF740A Vishay Siliconix Check for Price Power Field-Effect Transistor, 10A I(D), 400V, 0.55ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220, 3 PIN IRF740APBF vs IRF740A

IRF740APBF Related Parts

IRF740APBF Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the IRF740APBF is -55°C to 175°C.

  • Yes, the IRF740APBF is a logic-level MOSFET, which means it can be driven directly from a microcontroller or other low-voltage logic source.

  • The maximum current rating for the IRF740APBF is 23A.

  • Yes, the IRF740APBF is suitable for high-frequency switching applications due to its low gate charge and fast switching times.

  • The typical gate threshold voltage for the IRF740APBF is 2-4V.
