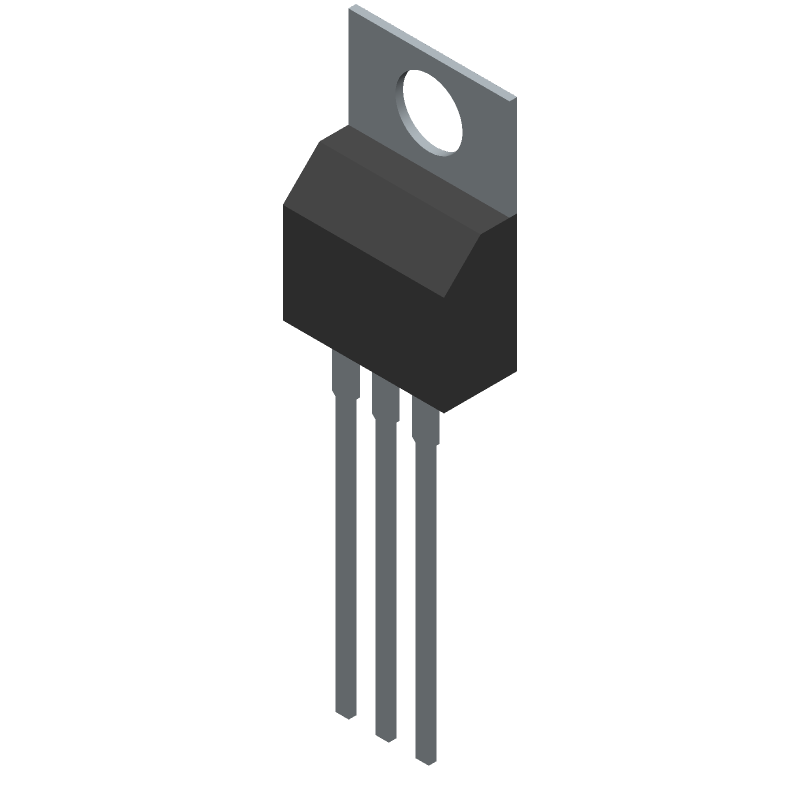

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IRF730APBF by Vishay Intertechnologies
Results Overview of IRF730APBF by Vishay Intertechnologies
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
IRF730APBF Information
IRF730APBF by Vishay Intertechnologies is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for IRF730APBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38K2841
|
Newark | Mosfet Transistor, N Channel, 5.5 A, 400 V, 1 Ohm, 10 V, 4.5 V Rohs Compliant: Yes |Vishay IRF730APBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 2746 |
|
$1.2000 / $2.2500 | Buy Now |
|
DISTI #
IRF730APBF
|
Avnet Americas | Trans MOSFET N-CH 400V 5.5A 3-Pin(3+Tab) TO-220AB - Bulk (Alt: IRF730APBF) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
RFQ | |
|
DISTI #
844-IRF730APBF
|
Mouser Electronics | MOSFETs TO220 400V 5.5A N-CH MOSFET RoHS: Compliant | 1041 |
|
$0.7730 / $1.8500 | Buy Now |
|
DISTI #
V36:1790_09218633
|
Arrow Electronics | Trans MOSFET N-CH 400V 5.5A 3-Pin(3+Tab) TO-220AB Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2345 | Americas - 320 |
|
$0.7230 / $1.1684 | Buy Now |
|
DISTI #
V99:2348_09218633
|
Arrow Electronics | Trans MOSFET N-CH 400V 5.5A 3-Pin(3+Tab) TO-220AB Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2209 | Americas - 71 |
|
$0.7856 / $0.9012 | Buy Now |
|
DISTI #
70078857
|
RS | MOSFET, Power, N-Ch, VDSS 400V, RDS(ON) 1Ohm, ID 5.5A, TO-220AB, PD 74W, VGS+/-30V,-55C Min Qty: 1 Package Multiple: 1 Container: Bulk | 540 |
|
$1.4300 / $1.9100 | Buy Now |
|
DISTI #
78817320
|
Verical | Trans MOSFET N-CH 400V 5.5A 3-Pin(3+Tab) TO-220AB Min Qty: 8 Package Multiple: 1 Date Code: 2345 | Americas - 320 |
|
$0.9285 / $1.8463 | Buy Now |
|
DISTI #
70391915
|
Verical | Trans MOSFET N-CH 400V 5.5A 3-Pin(3+Tab) TO-220AB Min Qty: 8 Package Multiple: 1 Date Code: 2209 | Americas - 71 |
|
$0.9674 / $1.8463 | Buy Now |
|
DISTI #
IRF730APBF
|
TTI | MOSFETs TO220 400V 5.5A N-CH MOSFET RoHS: Compliant pbFree: Pb-Free Min Qty: 50 Package Multiple: 50 Container: Tube |
Americas - 1000 In Stock |
|
$0.7600 / $0.8400 | Buy Now |
|
DISTI #
IRF730APBF
|
TME | Transistor: N-MOSFET, unipolar, 400V, 5.5A, Idm: 22A, 74W, TO220AB Min Qty: 1 | 0 |
|
$0.7500 / $1.5600 | RFQ |
Part Details for IRF730APBF
IRF730APBF CAD Models
IRF730APBF Part Data Attributes
|
|
IRF730APBF
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
IRF730APBF
Vishay Intertechnologies
Power Field-Effect Transistor, 5.5A I(D), 400V, 1ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, ROHS COMPLIANT PACKAGE-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Part Package Code | TO-220AB | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Avalanche Energy Rating (Eas) | 290 mJ | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 400 V | |
| Drain Current-Max (ID) | 5.5 A | |
| Drain-source On Resistance-Max | 1 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 4 pF | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 74 W | |
| Pulsed Drain Current-Max (IDM) | 22 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
IRF730APBF Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the IRF730APBF is -55°C to 175°C.
-
Yes, the IRF730APBF is a logic-level MOSFET, which means it can be driven directly from a microcontroller or other low-voltage logic source.
-
The maximum drain-source voltage (Vds) rating for the IRF730APBF is 400V.
-
Yes, the IRF730APBF is suitable for high-frequency switching applications due to its low gate charge and fast switching times.
-
No, the IRF730APBF is not a radiation-hardened device. It is not designed for use in high-radiation environments.
