Part Symbol
-

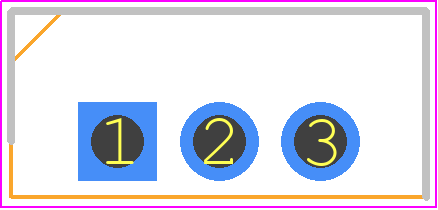

Footprint
-

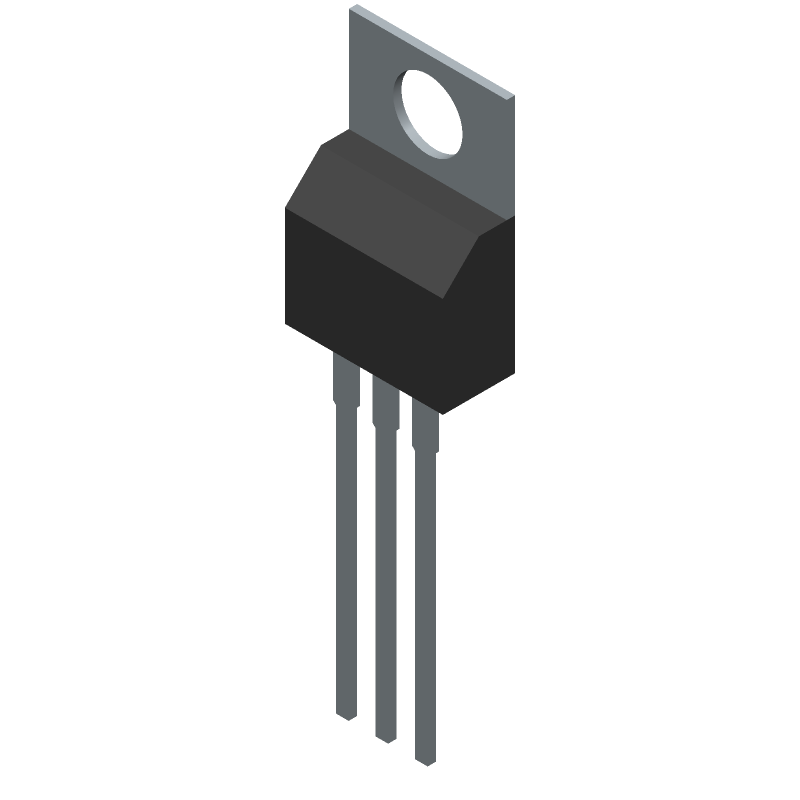

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IRF640PBF-BE3 by Vishay Intertechnologies
Results Overview of IRF640PBF-BE3 by Vishay Intertechnologies
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
IRF640PBF-BE3 Information
IRF640PBF-BE3 by Vishay Intertechnologies is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for IRF640PBF-BE3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78AH6378
|
Newark | Mosfet, N-Ch, 200V, 18A, To-220Ab, Channel Type:N Channel, Drain Source Voltage Vds:200V, Continuous Drain Current Id:18A, Transistor Mounting:Through Hole, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:4V Rohs Compliant: Yes |Vishay IRF640PBF-BE3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 427 |
|
$0.9990 | Buy Now |
|
DISTI #
IRF640PBF-BE3
|
Avnet Americas | MOSFET N-CHANNEL 200V - Rail/Tube (Alt: IRF640PBF-BE3) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Tube | 1000 |
|
$1.0576 / $1.1238 | Buy Now |
|
DISTI #
78AH6378
|
Avnet Americas | MOSFET N-CHANNEL 200V - Bulk (Alt: 78AH6378) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks, 1 Days Container: Bulk | 427 Partner Stock |
|
$1.2100 / $2.0900 | Buy Now |
|
DISTI #
78-IRF640PBF-BE3
|
Mouser Electronics | MOSFETs TO220 200V 18A N-CH MOSFET RoHS: Compliant | 5036 |
|
$0.7620 / $1.9400 | Buy Now |
|
DISTI #
E02:0323_18498729
|
Arrow Electronics | Trans MOSFET N-CH 200V 18A 3-Pin(3+Tab) TO-220AB Min Qty: 750 Package Multiple: 50 Lead time: 17 Weeks Date Code: 2236 | Europe - 750 |
|
$0.6826 / $0.7386 | Buy Now |
|
DISTI #
82745624
|
Verical | Trans MOSFET N-CH 200V 18A 3-Pin(3+Tab) TO-220AB Min Qty: 750 Package Multiple: 750 Date Code: 2236 | Americas - 750 |
|
$0.6862 / $0.7426 | Buy Now |
|
DISTI #
78951876
|
Verical | Trans MOSFET N-CH 200V 18A 3-Pin(3+Tab) TO-220AB Min Qty: 51 Package Multiple: 1 | Americas - 427 |
|
$1.1946 | Buy Now |
|
|
Bristol Electronics | 2000 |
|
RFQ | ||
|
DISTI #
IRF640PBF-BE3
|
TTI | MOSFETs TO220 200V 18A N-CH MOSFET RoHS: Compliant pbFree: Pb-Free Min Qty: 50 Package Multiple: 50 Container: Tube |
Americas - 39600 In Stock |
|
$1.1600 / $1.2300 | Buy Now |
|
DISTI #
IRF640PBF-BE3
|
TME | Transistor: N-MOSFET, unipolar, 200V, 18A, Idm: 72A, 125W, TO220AB Min Qty: 1 | 0 |
|
$0.7200 / $1.4600 | RFQ |
Part Details for IRF640PBF-BE3
IRF640PBF-BE3 CAD Models
IRF640PBF-BE3 Part Data Attributes
|
|
IRF640PBF-BE3
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
IRF640PBF-BE3
Vishay Intertechnologies
Power Field-Effect Transistor,
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 18 Weeks, 1 Day | |
| Samacsys Manufacturer | Vishay | |
| Avalanche Energy Rating (Eas) | 580 mJ | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 200 V | |
| Drain Current-Max (ID) | 18 A | |
| Drain-source On Resistance-Max | 0.18 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 130 pF | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 125 W | |
| Pulsed Drain Current-Max (IDM) | 72 A | |
| Surface Mount | NO | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
IRF640PBF-BE3 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the IRF640PBF-BE3 is -55°C to 175°C.
-
Yes, the IRF640PBF-BE3 is a logic-level MOSFET, which means it can be driven directly by a microcontroller or logic gate without the need for an additional driver circuit.
-
The maximum current rating for the IRF640PBF-BE3 is 18A, but this rating is dependent on the operating conditions and the device's thermal management.
-
Yes, the IRF640PBF-BE3 is suitable for high-frequency switching applications due to its low gate charge and fast switching times.
-
The IRF640PBF-BE3 comes in a TO-220AB package, which is a through-hole package with a heat sink tab.
