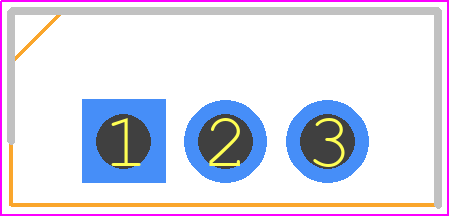

Footprint
-

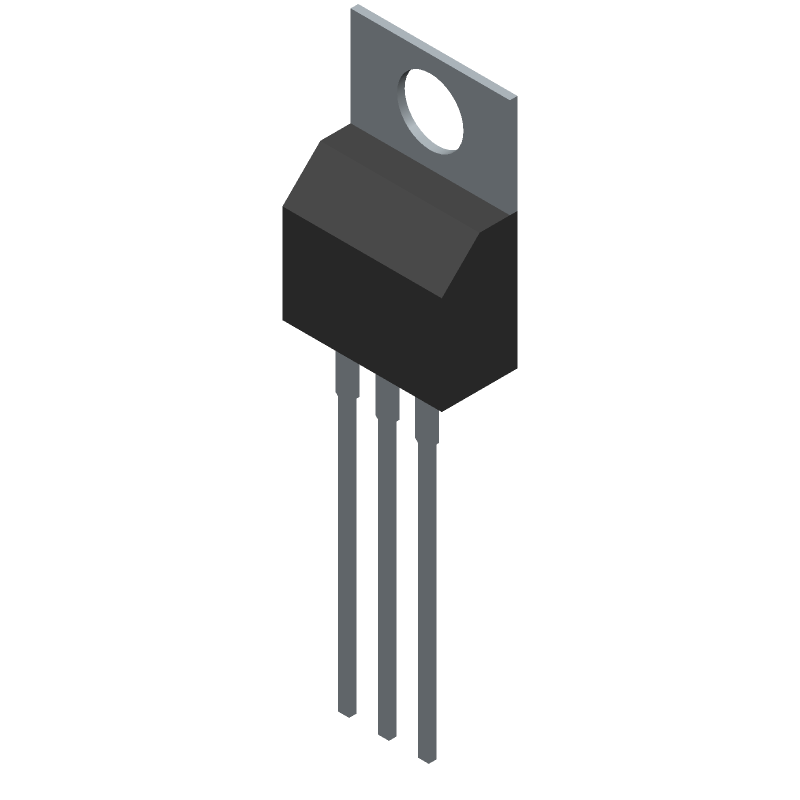

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IRF1407PBF by Infineon Technologies AG
Results Overview of IRF1407PBF by Infineon Technologies AG
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
Automotive
IRF1407PBF Information
IRF1407PBF by Infineon Technologies AG is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for IRF1407PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
63J7199
|
Newark | N Channel Mosfet, 75V, 130A, To-220Ab, Channel Type:N Channel, Drain Source Voltage Vds:75V, Continuous Drain Current Id:130A, Transistor Mounting:Through Hole, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:4V, Msl:- Rohs Compliant: Yes |Infineon IRF1407PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 2132 |
|
$1.0800 / $2.7100 | Buy Now |
|
DISTI #
IRF1407PBF-ND
|
DigiKey | MOSFET N-CH 75V 130A TO220AB Min Qty: 1 Lead time: 10 Weeks Container: Tube |
11003 In Stock |
|
$0.8695 / $2.6600 | Buy Now |
|
DISTI #
IRF1407PBF
|
Avnet Americas | Trans MOSFET N-CH 80V 130A 3-Pin(3+Tab) TO-220AB - Rail/Tube (Alt: IRF1407PBF) RoHS: Compliant Min Qty: 50 Package Multiple: 1 Lead time: 10 Weeks, 0 Days Container: Tube | 726 |
|
$0.7259 / $0.8869 | Buy Now |
|
DISTI #
63J7199
|
Avnet Americas | Trans MOSFET N-CH 80V 130A 3-Pin(3+Tab) TO-220AB - Bulk (Alt: 63J7199) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 1 Days Container: Bulk | 295 Partner Stock |
|
$1.1400 / $2.7700 | Buy Now |
|
DISTI #
942-IRF1407PBF
|
Mouser Electronics | MOSFETs MOSFT 75V 130A 7.8mOhm 160nC RoHS: Compliant | 1246 |
|
$0.8690 / $2.6600 | Buy Now |
|
DISTI #
E02:0323_00175968
|
Arrow Electronics | Trans MOSFET N-CH Si 75V 130A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2245 | Europe - 2700 |
|
$0.7301 / $1.0740 | Buy Now |
|
DISTI #
87324367
|
Verical | Trans MOSFET N-CH Si 75V 130A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 255 Package Multiple: 1 Date Code: 2201 | Americas - 11100 |
|
$1.4750 | Buy Now |
|
DISTI #
85989263
|
Verical | Trans MOSFET N-CH Si 75V 130A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 255 Package Multiple: 1 Date Code: 2101 | Americas - 3582 |
|
$1.4750 | Buy Now |
|
DISTI #
64965043
|
Verical | Trans MOSFET N-CH Si 75V 130A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 8 Package Multiple: 1 Date Code: 2245 | Americas - 2696 |
|
$1.2638 | Buy Now |
|
DISTI #
87324395
|
Verical | Trans MOSFET N-CH Si 75V 130A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 255 Package Multiple: 1 | Americas - 1285 |
|
$1.4750 | Buy Now |
Part Details for IRF1407PBF
IRF1407PBF CAD Models
IRF1407PBF Part Data Attributes
|
|
IRF1407PBF
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
IRF1407PBF
Infineon Technologies AG
Power Field-Effect Transistor, 130A I(D), 75V, 0.0078ohm, 1-Element, N-Channel, Silicon, Metal-Oxide Semiconductor FET, TO-220AB, PLASTIC, TO-220AB, 3 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 17 Weeks, 1 Day | |
| Samacsys Manufacturer | Infineon | |
| Additional Feature | AVALANCHE RATED, ULTRA-LOW RESISTANCE | |
| Avalanche Energy Rating (Eas) | 390 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 75 V | |
| Drain Current-Max (ID) | 130 A | |
| Drain-source On Resistance-Max | 0.0078 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 175 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 330 W | |
| Pulsed Drain Current-Max (IDM) | 520 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
