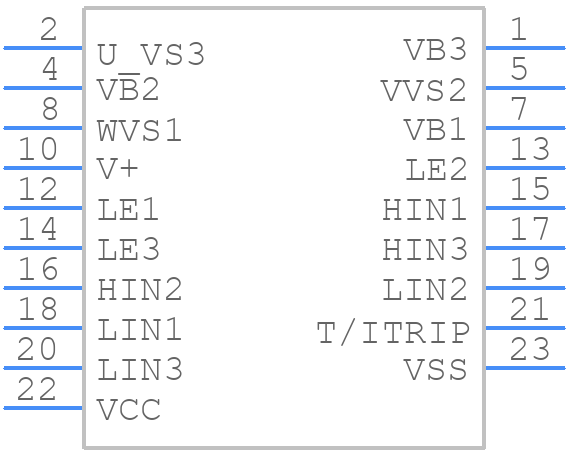

Part Symbol
-
Footprint
-

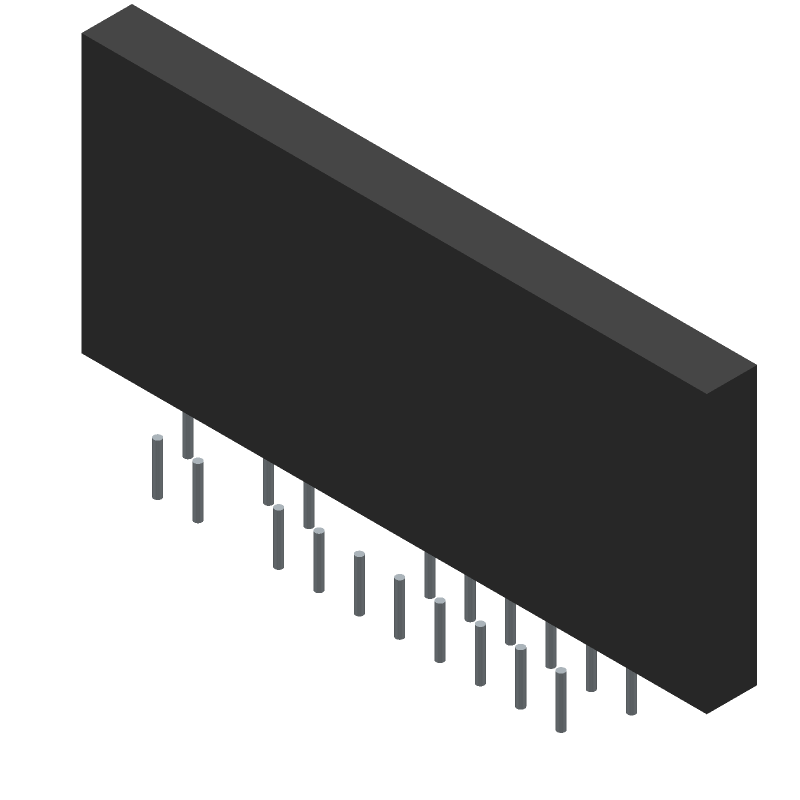

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IRAMS12UP60A by Infineon Technologies AG
Results Overview of IRAMS12UP60A by Infineon Technologies AG
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
IRAMS12UP60A Information
IRAMS12UP60A by Infineon Technologies AG is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for IRAMS12UP60A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SP001537108
|
EBV Elektronik | Integrated Power Module IC 3Phase Open Emitter 600V 12A 19Pin SIP1 (Alt: SP001537108) RoHS: Compliant Min Qty: 80 Package Multiple: 80 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Win Source Electronics | Integrated Power Hybrid IC for Appliance Motor Drive Applications | IC PWR HYBRID 600V 12A SIP2 | 5000 |
|
$43.5227 / $65.2829 | Buy Now |
Part Details for IRAMS12UP60A
IRAMS12UP60A CAD Models
IRAMS12UP60A Part Data Attributes
|
|
IRAMS12UP60A
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
IRAMS12UP60A
Infineon Technologies AG
AC Motor Controller, 18A, Hybrid, LEAD FREE, PACKAGE-23
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Package Description | LEAD FREE, PACKAGE-23 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Infineon | |
| Analog IC - Other Type | AC MOTOR CONTROLLER | |
| JESD-30 Code | R-XZFM-T23 | |
| Number of Functions | 1 | |
| Number of Terminals | 23 | |
| Output Current-Max | 18 A | |
| Package Body Material | UNSPECIFIED | |
| Package Code | ZIP | |
| Package Equivalence Code | ZIP19/23,.2,.1,78FL | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Qualification Status | Not Qualified | |
| Supply Current-Max (Isup) | 2.3 mA | |
| Supply Voltage-Max (Vsup) | 16.5 V | |
| Supply Voltage-Min (Vsup) | 13.5 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 1.98 mm | |
| Terminal Position | ZIG-ZAG |
IRAMS12UP60A Frequently Asked Questions (FAQ)
-
Infineon recommends a PCB layout with a large copper area connected to the drain pin (pin 3) to dissipate heat efficiently. A minimum of 2 oz copper thickness and a thermal via array under the device are also recommended.
-
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, including proper heat sinking, thermal interface material selection, and derating the device's power dissipation according to the ambient temperature.
-
The maximum allowed voltage on the gate-source pin (VGS) during startup is 20 V. Exceeding this voltage may damage the device.
-
Yes, the IRAMS12UP60A can be used in a half-bridge configuration. However, it's essential to ensure proper dead-time control and gate-source voltage management to prevent shoot-through currents and device damage.
-
When selecting a gate driver for the IRAMS12UP60A, consider the driver's output current capability, rise and fall times, and voltage rating. The gate driver should be able to provide a minimum of 2 A peak current and have a voltage rating of at least 20 V to ensure reliable operation.
