Part Details for IR333C-A by Everlight Electronics Co Ltd
Results Overview of IR333C-A by Everlight Electronics Co Ltd
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Request Part)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
IR333C-A Information

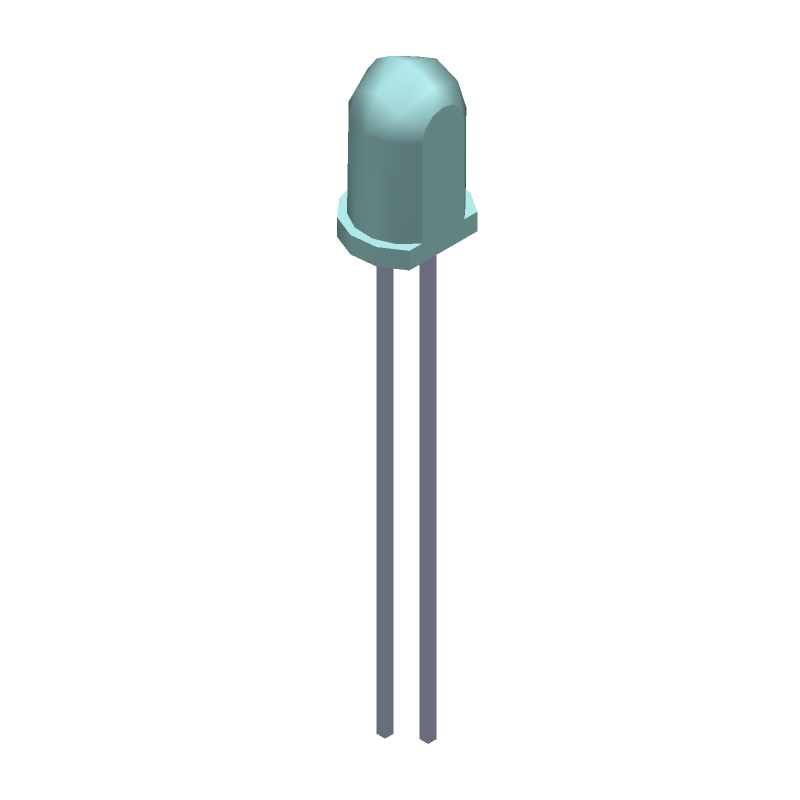

IR333C-A by Everlight Electronics Co Ltd is an Infrared LED.
Infrared LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for IR333C-A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1080-IR333C-A-ND
|
DigiKey | EMITTER Min Qty: 1500 Lead time: 22 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.1396 | Buy Now |
|
DISTI #
638-IR333C-A
|
Mouser Electronics | Infrared Emitters | 0 |
|
$0.0660 / $0.0870 | Order Now |
|
DISTI #
IR333C-A
|
TME | IR transmitter, 5mm, transparent, 20°, 1.2÷4VDC, λp max: 940nm, THT Min Qty: 5 | 0 |
|
$0.0690 / $0.1850 | RFQ |
|
DISTI #
3403330204
|
EBV Elektronik | (Alt: 3403330204) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 17 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | 15mW/sr20mA PluginD5mm Infrared LED Emitters ROHS | 53420 |
|
$0.0336 / $0.0603 | Buy Now |
Part Details for IR333C-A
IR333C-A CAD Models
IR333C-A Part Data Attributes
|
|
IR333C-A
Everlight Electronics Co Ltd
Buy Now
Datasheet
|
Compare Parts:
IR333C-A
Everlight Electronics Co Ltd
Infrared LED,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | EVERLIGHT ELECTRONICS CO LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Everlight | |
| Additional Feature | HIGH RELIABILITY | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.1 A | |
| Forward Voltage-Max | 1.5 V | |
| Mounting Feature | RADIAL MOUNT | |
| Number of Functions | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Optoelectronic Device Type | INFRARED LED | |
| Packing Method | BAG | |
| Peak Wavelength | 940 nm | |
| Reverse Voltage-Max | 5 V | |
| Semiconductor Material | GaAlAs | |
| Shape | ROUND | |
| Size | 5 mm | |
| Spectral Bandwidth | 45 m | |
| Surface Mount | NO | |
| Viewing Angle | 20 deg |
IR333C-A Frequently Asked Questions (FAQ)
-
The recommended storage temperature range for the IR333C-A is -40°C to 100°C.
-
Yes, the IR333C-A is suitable for use in high-humidity environments, but it's recommended to follow proper handling and storage procedures to prevent moisture-related issues.
-
The maximum allowable voltage for the IR333C-A is 5V, exceeding which may cause damage to the device.
-
To ensure reliability in high-temperature applications, it's recommended to follow the recommended operating temperature range, use a heat sink if necessary, and ensure good thermal design and airflow.
-
Yes, the IR333C-A is suitable for high-frequency switching applications, but it's recommended to follow proper PCB design and layout guidelines to minimize electromagnetic interference (EMI).
