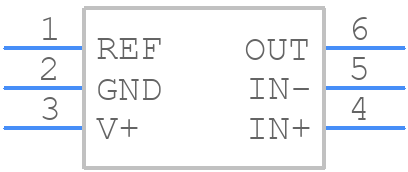

Part Symbol
-
Footprint
-

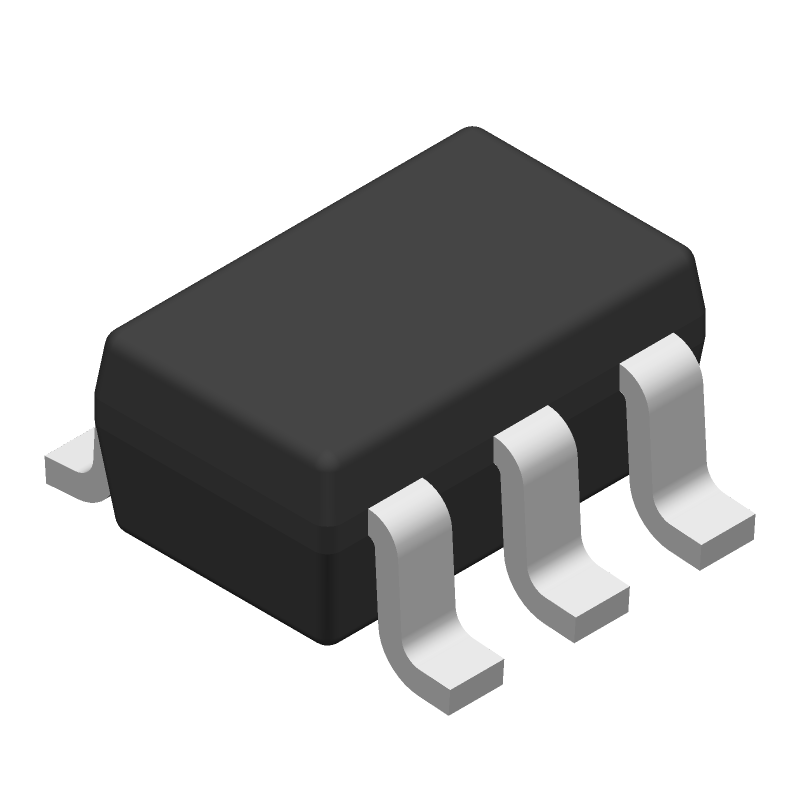

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for INA199A1DCKT by Texas Instruments
Results Overview of INA199A1DCKT by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
INA199A1DCKT Information
INA199A1DCKT by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| INA199A1DCKT | Texas Instruments | 26V, bi-directional, zero-drift, low-/high-side, voltage output current sense amplifier 6-SC70 -40 to 125 |
Price & Stock for INA199A1DCKT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-38951-1-ND
|
DigiKey | IC CURRENT SENSE 1.5% SC70-6 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
15763 In Stock |
|
$0.4825 / $1.1300 | Buy Now |
|
DISTI #
595-INA199A1DCKT
|
Mouser Electronics | Current Sense Amplifiers Vltg Output Hi/Low M smt Bi-Dir 0-Drift A 595-INA199A1DCKR RoHS: Compliant | 40768 |
|
$0.4820 / $0.8100 | Buy Now |
|
DISTI #
V72:2272_07259954
|
Arrow Electronics | SP Amp Current Sense Amp Single 26V 6-Pin SC-70 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2237 Container: Cut Strips | Americas - 423 |
|
$0.4745 / $0.5385 | Buy Now |
|
DISTI #
63510455
|
Verical | SP Amp Current Sense Amp Single 26V 6-Pin SC-70 T/R RoHS: Compliant Min Qty: 13 Package Multiple: 1 Date Code: 2237 | Americas - 423 |
|
$0.4745 / $0.4940 | Buy Now |
|
DISTI #
INA199A1DCKT
|
TME | IC: instrumentation amplifier, 80kHz, Ch: 1, SC70-6, 50V/V, 5uV Min Qty: 1 | 0 |
|
$0.6260 / $0.9740 | RFQ |
|
|
Vyrian | Other Function Semiconductors | 39193 |
|
RFQ | |
|
|
Win Source Electronics | IC OPAMP CURR SENSE 14KHZ SC70-6 | 67750 |
|
$0.1667 / $0.2153 | Buy Now |
Part Details for INA199A1DCKT
INA199A1DCKT CAD Models
INA199A1DCKT Part Data Attributes
|
|
INA199A1DCKT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
INA199A1DCKT
Texas Instruments
26V, bi-directional current sense amplifier 6-SC70 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SC-70, 6 PIN | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Supply Current-Max (Isup) | 5 mA | |
| Supply Voltage-Max (Vsup) | 26 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
Alternate Parts for INA199A1DCKT
This table gives cross-reference parts and alternative options found for INA199A1DCKT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of INA199A1DCKT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| INA199A1RSWR | Texas Instruments | $0.2395 | 26V, bi-directional current sense amplifier 10-UQFN -40 to 125 | INA199A1DCKT vs INA199A1RSWR |
| INA199B1RSWR | Texas Instruments | $0.2593 | 26V, bi-directional current sense amplifier 10-UQFN -40 to 125 | INA199A1DCKT vs INA199B1RSWR |
| INA199B1QDCKRQ1 | Texas Instruments | $0.3025 | AEC-Q100, 26V, bi-directional current sense amplifier 6-SC70 -40 to 125 | INA199A1DCKT vs INA199B1QDCKRQ1 |
| INA199B1DCKT | Texas Instruments | $0.3551 | 26V, bi-directional current sense amplifier 6-SC70 -40 to 125 | INA199A1DCKT vs INA199B1DCKT |
| INA199A1RSWT | Texas Instruments | $0.3551 | 26V, bi-directional current sense amplifier 10-UQFN -40 to 125 | INA199A1DCKT vs INA199A1RSWT |
| INA199A1DCKR | Texas Instruments | $0.4187 | 26V, bi-directional current sense amplifier 6-SC70 -40 to 125 | INA199A1DCKT vs INA199A1DCKR |
| ADL5317ACPZ-WP | Rochester Electronics LLC | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, QCC16, 3 X 3 MM, LEAD FREE, MO-220VEED-2, LFCSP-16 | INA199A1DCKT vs ADL5317ACPZ-WP |
| ADL5317ACPZ-REEL7 | Analog Devices Inc | Check for Price | Avalanche Photodiode Bias Controller and Wide-range (5 nA - 5 mA) Current Monitor | INA199A1DCKT vs ADL5317ACPZ-REEL7 |
INA199A1DCKT Frequently Asked Questions (FAQ)
-
The maximum voltage that can be applied to the input pins is ±40V, but it's recommended to keep it within ±20V for optimal performance.
-
The gain of the INA199A1DCKT is fixed at 20V/V. You can calculate the output voltage using the formula: Vout = (Vin x Gain) + Vref, where Vin is the input voltage and Vref is the reference voltage.
-
The REF pin is used to set the reference voltage for the INA199A1DCKT. You can connect it to a voltage source or a voltage divider to set the reference voltage, which determines the output voltage range.
-
The INA199A1DCKT has a bandwidth of 2.5MHz, making it suitable for low-to-medium frequency applications. However, it's not recommended for high-frequency applications above 1MHz.
-
To ensure accurate measurements, make sure to follow proper PCB layout and grounding techniques, use a low-noise power supply, and minimize electromagnetic interference (EMI) in your circuit.
