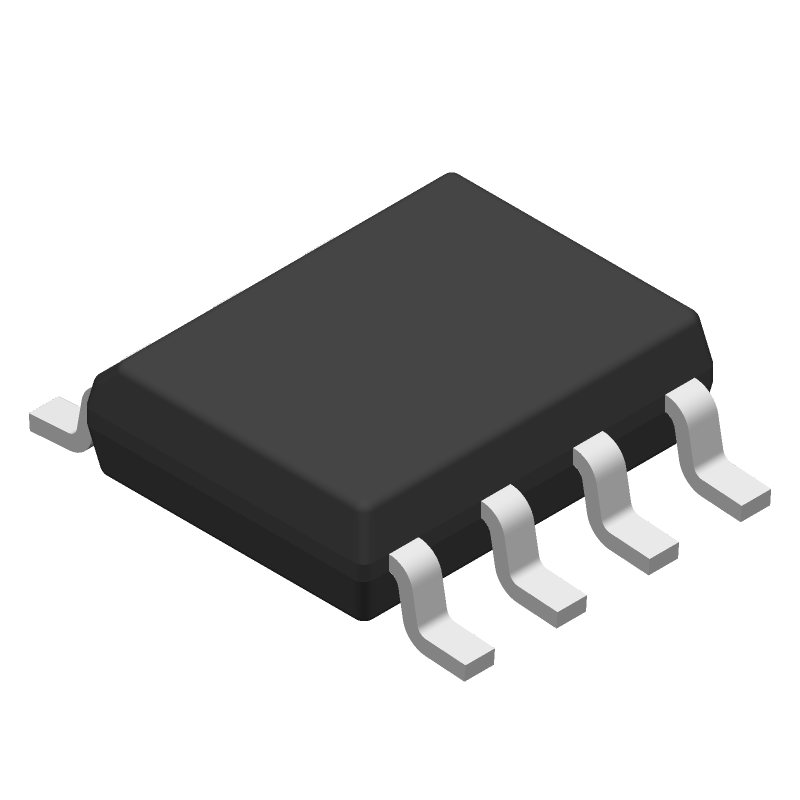

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for INA137UAG4 by Texas Instruments
Results Overview of INA137UAG4 by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
INA137UAG4 Information
INA137UAG4 by Texas Instruments is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| INA137UAG4 | Texas Instruments | Audio Differential Line Receivers, +-6dB (G=1/2 or 2) 8-SOIC |
Price & Stock for INA137UAG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Other Function Semiconductors | 271 |
|
RFQ |
Part Details for INA137UAG4
INA137UAG4 CAD Models
INA137UAG4 Part Data Attributes
|
|
INA137UAG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
INA137UAG4
Texas Instruments
Single, Audio Differential Line Receivers, +-6dB (G=1/2 or 2) 8-SOIC -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO OPERATES WITH 8V TO 36V SINGLE SUPPLY | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| Input Voltage-Min | 8 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 3 | |
| Neg Supply Voltage-Max (Vsup) | -18 V | |
| Neg Supply Voltage-Min (Vsup) | -4 V | |
| Neg Supply Voltage-Nom (Vsup) | -18 V | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 36 V | |
| Supply Voltage-Min (Vsup) | 8 V | |
| Supply Voltage-Nom (Vsup) | 18 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for INA137UAG4
This table gives cross-reference parts and alternative options found for INA137UAG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of INA137UAG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| INA137UA | Texas Instruments | $1.5615 | Single, Audio Differential Line Receivers, +-6dB (G=1/2 or 2) 8-SOIC -40 to 85 | INA137UAG4 vs INA137UA |
INA137UAG4 Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the INA137UAG4 is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (RθJA) of 125°C/W.
-
To minimize noise and ensure accurate measurements, it is recommended to follow proper PCB layout techniques, such as separating analog and digital grounds, using a solid ground plane, and keeping sensitive analog signals away from noisy digital signals. Additionally, the INA137UAG4 should be placed close to the signal source and the input pins should be connected to the signal source using short, low-impedance traces.
-
The recommended input impedance for the INA137UAG4 is 1kΩ or higher. This ensures that the input voltage is not loaded down by the amplifier's input impedance, which can affect the accuracy of the measurement.
-
The INA137UAG4 is designed for low-frequency applications, such as measuring DC or low-frequency AC signals. It has a bandwidth of 35kHz, which may not be suitable for high-frequency signal measurements. For high-frequency signal measurements, a different amplifier with a higher bandwidth should be used.
-
The gain error of the INA137UAG4 can be calculated using the formula: Gain Error (%) = (Vout / (Vin * Gain)) * 100, where Vout is the output voltage, Vin is the input voltage, and Gain is the gain of the amplifier. The gain error is typically specified as a percentage of the full-scale output voltage.
