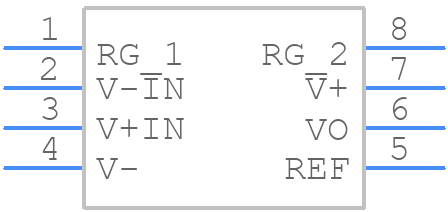

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for INA129MDREP by Texas Instruments
Results Overview of INA129MDREP by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
INA129MDREP Information
INA129MDREP by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for INA129MDREP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-25555-1-ND
|
DigiKey | IC INST AMP 1 CIRCUIT 8SOIC Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2517 In Stock |
|
$12.5009 / $20.0600 | Buy Now |
|
DISTI #
595-INA129MDREP
|
Mouser Electronics | Instrumentation Amplifiers EP Prec Low Pwr Inst rum Amp RoHS: Compliant | 1249 |
|
$13.8700 / $21.8100 | Buy Now |
|
DISTI #
INA129MDREP
|
TME | IC: instrumentation amplifier, 1.3MHz, Ch: 1, SO8, 1V/V,10kV/V Min Qty: 1 | 0 |
|
$14.1600 / $24.0100 | RFQ |
|
|
LCSC | 2nA 150uV 200kHz 95dB Single channel SOIC-8 Instrumentation Amplifiers ROHS | 2 |
|
$20.5161 / $21.4398 | Buy Now |
|
|
Vyrian | Amplifiers | 2133 |
|
RFQ |
Part Details for INA129MDREP
INA129MDREP CAD Models
INA129MDREP Part Data Attributes
|
|
INA129MDREP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
INA129MDREP
Texas Instruments
Enhanced Product Precision, Low Power Instrumentation Amplifiers 8-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | CURRENT-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.008 µA | |
| Bandwidth (3dB)-Nom | 1.3 MHz | |
| Bias Current-Max (IIB) @25C | 0.008 µA | |
| Common-mode Reject Ratio-Min | 113 dB | |
| Common-mode Reject Ratio-Nom | 130 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.008 µA | |
| Input Offset Voltage-Max | 100 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Low-Bias | NO | |
| Low-Offset | YES | |
| Micropower | NO | |
| Moisture Sensitivity Level | 3 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Non-linearity-Max | 0.0055% | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 4 V/us | |
| Supply Current-Max | 1.2 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 1300 | |
| Voltage Gain-Max | 10000 | |
| Voltage Gain-Min | 1 | |
| Wideband | NO | |
| Width | 3.9 mm |
INA129MDREP Frequently Asked Questions (FAQ)
-
The INA129 can handle input voltages up to ±650mV, but it's recommended to keep the input voltage within ±500mV to ensure accurate measurements.
-
The gain resistor (Rg) should be chosen based on the desired gain and input voltage range. A smaller Rg value results in higher gain, but may also increase noise. A larger Rg value results in lower gain, but may also reduce noise. Consult the datasheet for a gain calculation formula.
-
The REF pin is the reference voltage input for the INA129. It should be connected to a stable voltage source, such as a voltage regulator or a voltage reference IC. The REF pin sets the output voltage of the INA129, and it's typically connected to a voltage divider or a voltage reference circuit.
-
To filter out noise and interference, add capacitors (e.g., 10nF to 100nF) between the input pins and GND, and between the output pin and GND. You can also add a low-pass filter (e.g., RC filter) between the output pin and the load. Additionally, use a shielded cable and keep the INA129 circuit away from noise sources.
-
The INA129 can drive up to 10mA of output current. However, the output current should be limited to 5mA or less to ensure accurate measurements and to prevent overheating.
