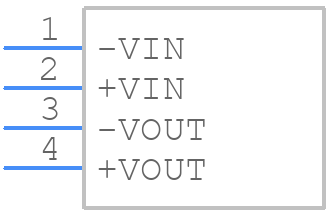

Part Symbol
-

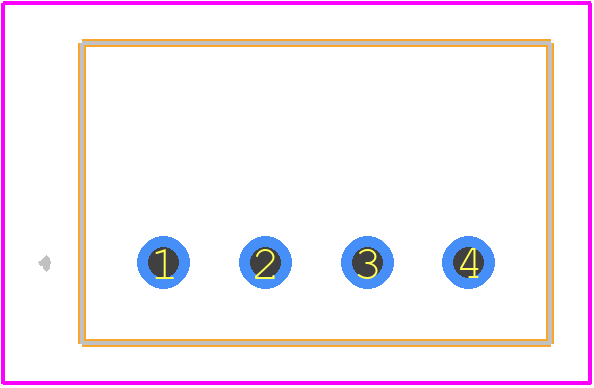

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IL1209S by XP Power
Results Overview of IL1209S by XP Power
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
IL1209S Information
IL1209S by XP Power is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for IL1209S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
88M0771
|
Newark | Dc-Dc Converter, Iso Pol, 1 O/P, 2W, 222Ma, 9V, Power Supply Applications:Ite, Dc/Dc Converter Type:Sip, Input Ratio:1:1, Output Power Max:2W, No. Of Outputs:1 Output, Output Voltage - Output 1:9V, Output Current - Output 1:222Ma Rohs Compliant: Yes |Xp Power IL1209S RoHS: Compliant Min Qty: 40 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$8.2100 / $8.8000 | Buy Now |
|
DISTI #
38K2369
|
Newark | Isolated Board Mount Dc/Dc Converter, Sip, Fixed, Through Hole, 2 W, 9 V, 222 Ma Rohs Compliant: Yes |Xp Power IL1209S RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$10.1300 / $12.0500 | Buy Now |
|
DISTI #
1470-1483-5-ND
|
DigiKey | DC DC CONVERTER 9V 2W Min Qty: 1 Lead time: 12 Weeks Container: Tube |
42 In Stock |
|
$8.2068 / $9.7700 | Buy Now |
|
DISTI #
209-IL1209S
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole DC-DC, 2W, unreg., single output, SIP RoHS: Compliant | 261 |
|
$8.0500 / $9.5800 | Buy Now |
|
DISTI #
70808966
|
RS | DC-DC Converter, 2W, unreg., Single Output, SIP Min Qty: 40 Package Multiple: 1 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$7.7700 / $8.2700 | RFQ |
|
DISTI #
87607534
|
Verical | IL1209S Min Qty: 7 Package Multiple: 1 | Americas - 27 |
|
$9.3800 / $10.7520 | Buy Now |
|
DISTI #
IL1209S
|
TME | Converter: DC/DC, 2W, Uin: 12VDC, Uout: 9VDC, Iout: 222mA, SIP, THT, IL Min Qty: 1 | 14 |
|
$7.2500 / $9.5900 | Buy Now |
Part Details for IL1209S
IL1209S CAD Models
IL1209S Part Data Attributes
|
|
IL1209S
XP Power
Buy Now
Datasheet
|
Compare Parts:
IL1209S
XP Power
DC-DC Regulated Power Supply Module, 1 Output, 2W, Hybrid, SIP-4
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | XP POWER LTD | |
| Part Package Code | MODULE | |
| Package Description | SIP-4 | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | XP POWER | |
| Additional Feature | LG-MAX | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 13.2 V | |
| Input Voltage-Min | 10.8 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-XSMA-T4 | |
| Length | 11.68 mm | |
| Load Regulation-Max | 10% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.222 A | |
| Output Voltage-Max | 9.27 V | |
| Output Voltage-Min | 8.73 V | |
| Output Voltage-Nom | 9 V | |
| Package Body Material | UNSPECIFIED | |
| Package Equivalence Code | SIP4,.24 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 10.16 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 2 W | |
| Trim/Adjustable Output | NO | |
| Width | 7.5 mm |
IL1209S Frequently Asked Questions (FAQ)
-
XP Power recommends a PCB layout with a large copper area connected to the tab of the device to dissipate heat efficiently. A minimum of 1 square inch of copper is recommended.
-
XP Power recommends using a soldering iron with a temperature of 250°C to 270°C and a solder with a melting point of 180°C to 200°C. The device should be soldered within 3 seconds to prevent thermal damage.
-
The IL1209S can operate up to 80% of its maximum rated voltage without derating. However, for reliable operation, XP Power recommends derating the voltage by 10% to 15% to ensure optimal performance and reliability.
-
The IL1209S is not hermetically sealed, so it's not recommended for use in high-humidity environments. However, XP Power offers a conformal coating option to improve the device's moisture resistance. Contact XP Power for more information.
-
XP Power recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, depending on the input voltage and output current requirements. The capacitor should be placed as close to the device as possible to minimize noise and ripple.
