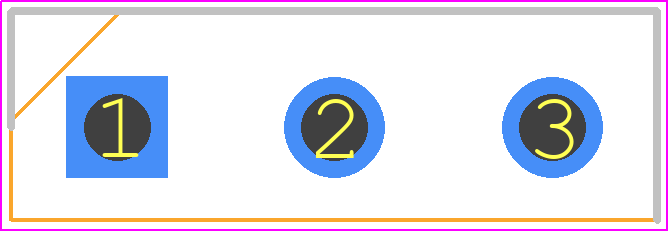

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IKW75N60T by Infineon Technologies AG
Results Overview of IKW75N60T by Infineon Technologies AG
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Motor control systems
IKW75N60T Information
IKW75N60T by Infineon Technologies AG is an IGBT.
IGBTs are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for IKW75N60T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
726-IKW75N60T
|
Mouser Electronics | IGBTs LOW LOSS DuoPack 600V 75A RoHS: Compliant | 498 |
|
$4.0400 / $7.2900 | Buy Now |
|
DISTI #
69752297
|
Verical | Trans IGBT Chip N-CH 600V 80A 428W 3-Pin(3+Tab) TO-247 Tube RoHS: Compliant Min Qty: 9 Package Multiple: 1 Date Code: 2101 | Americas - 1180 |
|
$7.0537 / $8.6855 | Buy Now |
|
DISTI #
IKW75N60T
|
TME | Transistor: IGBT, 600V, 75A, 428W, TO247-3 Min Qty: 1 | 18 |
|
$5.7500 / $7.7600 | Buy Now |
|
|
MacroQuest Electronics | STOCK | 6000 |
|
RFQ | |
|
|
Vyrian | Transistors | 308 |
|
RFQ | |
|
|
Win Source Electronics | Low Loss DuoPack : IGBT in Trench and Fieldstop technology with soft, fast recovery anti-parallel EmCon HE diode | 57330 |
|
$2.9884 / $3.8602 | Buy Now |
Part Details for IKW75N60T
IKW75N60T CAD Models
IKW75N60T Part Data Attributes
|
|
IKW75N60T
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
IKW75N60T
Infineon Technologies AG
Insulated Gate Bipolar Transistor, 80A I(C), 600V V(BR)CES, N-Channel, TO-247AD, GREEN, PLASTIC, TO-247, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Part Package Code | TO-247AD | |
| Package Description | GREEN, PLASTIC, TO-247, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Infineon | |
| Additional Feature | HIGH SWITCHING SPEED | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 80 A | |
| Collector-Emitter Voltage-Max | 600 V | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| Gate-Emitter Thr Voltage-Max | 5.7 V | |
| Gate-Emitter Voltage-Max | 20 V | |
| JEDEC-95 Code | TO-247AD | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 428 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Application | POWER CONTROL | |
| Transistor Element Material | SILICON | |
| Turn-off Time-Nom (toff) | 401 ns | |
| Turn-on Time-Nom (ton) | 69 ns |
Alternate Parts for IKW75N60T
This table gives cross-reference parts and alternative options found for IKW75N60T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IKW75N60T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| IKW75N60TXK | Infineon Technologies AG | Check for Price | Insulated Gate Bipolar Transistor, 80A I(C), 600V V(BR)CES, N-Channel, TO-247AD, GREEN, PLASTIC, TO-247, 3 PIN | IKW75N60T vs IKW75N60TXK |
IKW75N60T Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the IKW75N60T is -40°C to 150°C.
-
To ensure reliability, follow proper thermal management, use a suitable heat sink, and ensure the device is operated within the recommended voltage and current ratings.
-
The recommended gate resistor value for the IKW75N60T is typically between 10 ohms to 100 ohms, depending on the specific application and switching frequency.
-
Yes, the IKW75N60T can be used in a parallel configuration to increase current handling, but ensure that the devices are properly matched and the layout is designed to minimize current imbalance.
-
Use a suitable overvoltage protection circuit, such as a TVS diode or a zener diode, and implement overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
