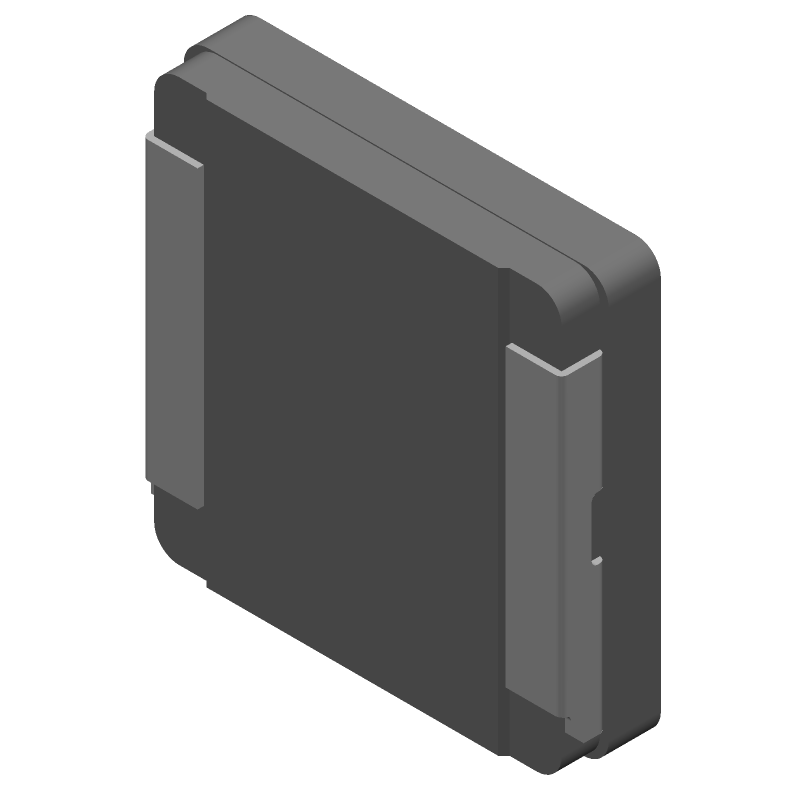

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IHLP6767DZER470M11 by Vishay Intertechnologies
Results Overview of IHLP6767DZER470M11 by Vishay Intertechnologies
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Industrial Automation
IHLP6767DZER470M11 Information
IHLP6767DZER470M11 by Vishay Intertechnologies is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for IHLP6767DZER470M11
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01T1372
|
Newark | Inductor, Shielded, 47Uh, 4.3A, Smd, Inductance:47Μh, Rms Current (Irms):5A, Inductor Construction:Shielded, Saturation Current (Isat):4.3A, Product Range:Ihlp-6767Dz-11 Series, Inductor Case/Package:-, Dc Resistance Max:0.1085Ohm Rohs Compliant: Yes |Vishay IHLP6767DZER470M11 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2 |
|
$0.8450 | Buy Now |
|
DISTI #
01T1373
|
Newark | Inductor, Shielded, 47Uh, 4.3A, Smd, Full Reel, Inductance:47Μh, Rms Current (Irms):5A, Inductor Construction:Shielded, Saturation Current (Isat):4.3A, Product Range:Ihlp-6767Dz-11 Series, Inductor Case/Package:- Rohs Compliant: Yes |Vishay IHLP6767DZER470M11 RoHS: Compliant Min Qty: 250 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.9200 / $2.3700 | Buy Now |
|
DISTI #
01T1372
|
Avnet Americas | Power Inductor (SMD), 47 ?H, 5 A, Shielded, 4.3 A, IHLP-6767DZ-11 Series - Product that comes on tape, but is not reeled (Alt: 01T1372) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks, 3 Days Container: Ammo Pack | 2 Partner Stock |
|
$3.2900 | Buy Now |
|
DISTI #
IHLP6767DZER470M11
|
Avnet Americas | Power Inductor (SMD), 47 ?H, 5 A, Shielded, 4.3 A, IHLP-6767DZ-11 Series - Tape and Reel (Alt: IHLP6767DZER470M11) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$1.0529 / $1.1187 | Buy Now |
|
DISTI #
70-IHLP6767DZER470M1
|
Mouser Electronics | Power Inductors - SMD 47uH 20% RoHS: Compliant | 3265 |
|
$1.5500 / $2.5300 | Buy Now |
|
DISTI #
V36:1790_09490828
|
Arrow Electronics | Power Choke Shielded Wirewound 47uH 20% 100KHz Powdered Iron 5A 0.10846Ohm DCR 6767 T/R RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 10 Weeks Date Code: 2423 | Americas - 250 |
|
$1.4820 / $1.5740 | Buy Now |
|
|
Future Electronics | FIXED IND 47UH 5A 108.46 MOHM RoHS: Compliant pbFree: Yes Min Qty: 250 Package Multiple: 250 Lead time: 10 Weeks Container: Reel | 250Reel |
|
$1.2200 / $1.2400 | Buy Now |
|
DISTI #
83354648
|
Verical | Power Choke Shielded Wirewound 47uH 20% 100KHz Powdered Iron 5A 0.10846Ohm DCR 6767 T/R RoHS: Compliant Min Qty: 250 Package Multiple: 250 Date Code: 2423 | Americas - 250 |
|
$1.4820 / $1.5740 | Buy Now |
|
|
Quest Components | 400 |
|
$1.3000 / $4.0000 | Buy Now | |
|
|
Quest Components | 16 |
|
$2.6576 / $3.6240 | Buy Now |
Part Details for IHLP6767DZER470M11
IHLP6767DZER470M11 CAD Models
IHLP6767DZER470M11 Part Data Attributes
|
|
IHLP6767DZER470M11
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
IHLP6767DZER470M11
Vishay Intertechnologies
General Purpose Inductor, 47uH, 20%, 1 Element, Composite-Core, SMD, 6767, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 11 Weeks, 3 Days | |
| Samacsys Manufacturer | Vishay | |
| Case/Size Code | 6767 | |
| Construction | Rectangular | |
| Core Material | COMPOSITE | |
| DC Resistance | 0.10846 Ω | |
| Inductance-Nom (L) | 47 µH | |
| Inductor Application | HIGH CURRENT INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 4 mm | |
| Package Length | 17.15 mm | |
| Package Style | SMT | |
| Package Width | 17.15 mm | |
| Packing Method | TR, 13 Inch | |
| Rated Current-Max | 5 A | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
IHLP6767DZER470M11 Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for the IHLP6767DZER470M11 is a pad size of 7.3 mm x 6.5 mm with a 1.5 mm hole in the center. The pad should be solder-mask defined (SMD) with a non-solder-mask-defined (NSMD) connection to the internal pads.
-
The IHLP6767DZER470M11 has a maximum operating temperature of 125°C. Ensure good airflow around the inductor, and consider using a heat sink or thermal interface material if the inductor will be operating near its maximum temperature rating.
-
The self-resonant frequency of the IHLP6767DZER470M11 is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. A rough estimate can be calculated using the formula: Fsr = 1 / (2 * π * sqrt(L * C)), where L is the inductance and C is the capacitance.
-
The IHLP6767DZER470M11 is designed to withstand moderate vibration, but it's essential to ensure the inductor is properly secured to the PCB and that the PCB is designed to withstand the vibration. Consult the datasheet and application notes for more information on vibration testing and PCB design considerations.
-
The saturation current of the IHLP6767DZER470M11 can be determined by consulting the inductor's BH curve, which is typically provided in the datasheet or application notes. The BH curve shows the relationship between the inductor's magnetic field strength (H) and magnetic flux density (B). The saturation current is the point at which the inductor's inductance begins to decrease significantly.
