IHLP3232DZERR22M51 Information
IHLP3232DZERR22M51 by Vishay Intertechnologies is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for IHLP3232DZERR22M51
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AM3630
|
Newark | Ihlp-3232Dz-51 .22 20% Er E3 Rohs Compliant: Yes |Vishay IHLP3232DZERR22M51 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel | 1500 |
|
$0.3140 / $0.3430 | Buy Now |
|
DISTI #
73W9853
|
Newark | Ihlp-3232Dz-51 .22 20% Er E3 Rohs Compliant: Yes |Vishay IHLP3232DZERR22M51 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.6970 / $0.8570 | Buy Now |
|
DISTI #
IHLP3232DZERR22M51
|
Avnet Americas | IHLP-3232DZ-51 .22 20% ER E3 - Tape and Reel (Alt: IHLP3232DZERR22M51) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 18 Weeks, 0 Days Container: Reel | 1500 |
|
$0.3028 / $0.3425 | Buy Now |
|
DISTI #
70-IHLP3232DZRR22M51
|
Mouser Electronics | Power Inductors - SMD .22uH 20% RoHS: Compliant | 605 |
|
$0.5420 / $1.4100 | Buy Now |
|
DISTI #
IHLP3232DZERR22M51
|
TTI | Power Inductors - SMD .22uH 20% RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 500 Container: Reel | Americas - 0 |
|
$0.4350 / $0.4620 | Buy Now |
|
DISTI #
IHLP3232DZERR22M51
|
Avnet Abacus | IHLP3232DZ51 22 20 ER E3 (Alt: IHLP3232DZERR22M51) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 16 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for IHLP3232DZERR22M51

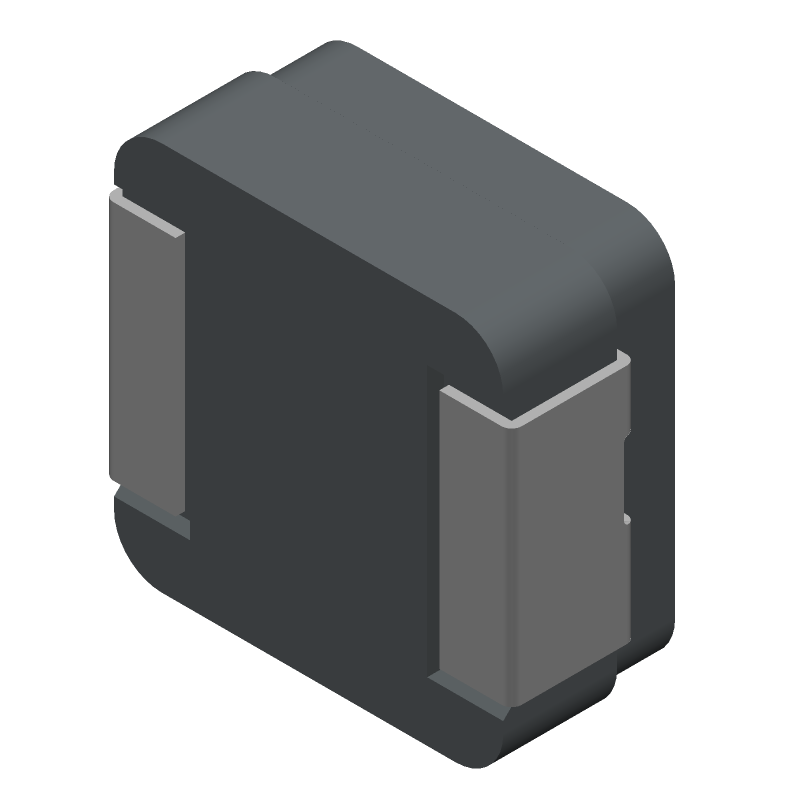

IHLP3232DZERR22M51 CAD Models
IHLP3232DZERR22M51 Part Data Attributes
|
|
IHLP3232DZERR22M51
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
IHLP3232DZERR22M51
Vishay Intertechnologies
General Purpose Inductor, 0.22uH, 20%, Iron-Core, 3432,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Case/Size Code | 3232 | |
| Construction | Rectangular | |
| Core Material | COMPOSITE | |
| DC Resistance | 0.00186 Ω | |
| Inductance-Nom (L) | 0.22 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 4 mm | |
| Package Length | 8.18 mm | |
| Package Style | SMT | |
| Package Width | 8.18 mm | |
| Packing Method | TR, 13 Inch | |
| Rated Current-Max | 36 A | |
| Self Resonance Frequency | 117 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
IHLP3232DZERR22M51 Frequently Asked Questions (FAQ)
-
The recommended PCB land pattern for the IHLP3232DZERR22M51 can be found in the Vishay Intertechnologies' application note AN2002, which provides guidelines for PCB layout and land pattern design for IHLP inductors.
-
The thermal derating of the IHLP3232DZERR22M51 can be handled by following the guidelines provided in the datasheet, which specifies the maximum operating temperature and the corresponding derating curves. Additionally, the application note AN2001 provides more detailed information on thermal management and derating for IHLP inductors.
-
The self-resonant frequency of the IHLP3232DZERR22M51 is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance value and the parasitic capacitance. A rough estimate can be made using the formula: f_res = 1 / (2 * pi * sqrt(L * C)), where L is the inductance value and C is the parasitic capacitance.
-
The IHLP3232DZERR22M51 is designed for high-frequency applications, but its performance may degrade above a certain frequency due to the skin effect and proximity effect. The datasheet provides a graph showing the inductor's impedance vs. frequency, which can be used to determine its suitability for a specific high-frequency application.
-
To ensure the reliability of the IHLP3232DZERR22M51 in a high-reliability application, it is recommended to follow the guidelines provided in the Vishay Intertechnologies' application note AN2003, which provides information on reliability testing, screening, and qualification for IHLP inductors.
