IHLP3232DZER470M51 Information
IHLP3232DZER470M51 by Vishay Intertechnologies is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for IHLP3232DZER470M51
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3780000RL
|
Farnell | INDUCTOR, 47UH, SHIELDED, 2.4A RoHS: Compliant Min Qty: 100 Lead time: 15 Weeks, 0 Days Container: Reel | 375 |
|
$0.7442 / $0.7588 | Buy Now |
|
DISTI #
3780000
|
Farnell | INDUCTOR, 47UH, SHIELDED, 2.4A RoHS: Compliant Min Qty: 1 Lead time: 15 Weeks, 0 Days Container: Cut Tape | 375 |
|
$0.7442 / $1.4857 | Buy Now |
|
DISTI #
IHLP3232DZER470M51
|
Avnet Americas | IHLP-3232DZ-51 47 20% ER E3 - Tape and Reel (Alt: IHLP3232DZER470M51) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 10 Weeks, 0 Days Container: Reel | 500 |
|
RFQ | |
|
DISTI #
70-IHLP3232DZER470M5
|
Mouser Electronics | Power Inductors - SMD 47uH 20% RoHS: Compliant | 2278 |
|
$0.5430 / $1.1600 | Buy Now |
|
DISTI #
V79:2366_26615500
|
Arrow Electronics | Power Choke Shielded Wirewound 47uH 20% 100KHz Powdered Iron 2.4A 0.26964Ohm DCR 3232 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2138 | Americas - 36779 |
|
$0.4784 | Buy Now |
|
DISTI #
V36:1790_09326781
|
Arrow Electronics | Power Choke Shielded Wirewound 47uH 20% 100KHz Powdered Iron 2.4A 0.26964Ohm DCR 3232 T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 10 Weeks Date Code: 2420 | Americas - 1000 |
|
$0.4890 / $0.5432 | Buy Now |
|
|
Future Electronics | FIXED IND 47UH 2.4A 269.64 MOHM RoHS: Compliant pbFree: Yes Min Qty: 500 Package Multiple: 500 Lead time: 10 Weeks Container: Reel | 1000Reel |
|
$0.3900 / $0.4050 | Buy Now |
|
DISTI #
65163226
|
Verical | Power Choke Shielded Wirewound 47uH 20% 100KHz Powdered Iron 2.4A 0.26964Ohm DCR 3232 T/R RoHS: Compliant Min Qty: 13 Package Multiple: 1 Date Code: 2138 | Americas - 36779 |
|
$0.4784 | Buy Now |
|
DISTI #
IHLP3232DZER470M51
|
TTI | Power Inductors - SMD 47uH 20% pbFree: Pb-Free Min Qty: 500 Package Multiple: 500 Container: Reel |
Americas - 1500 In Stock |
|
$0.3260 / $0.4060 | Buy Now |
|
|
Future Electronics | FIXED IND 47UH 2.4A 269.64 MOHM Min Qty: 500 Package Multiple: 500 |
1000 null |
|
$0.3900 / $0.4050 | Buy Now |
Part Details for IHLP3232DZER470M51

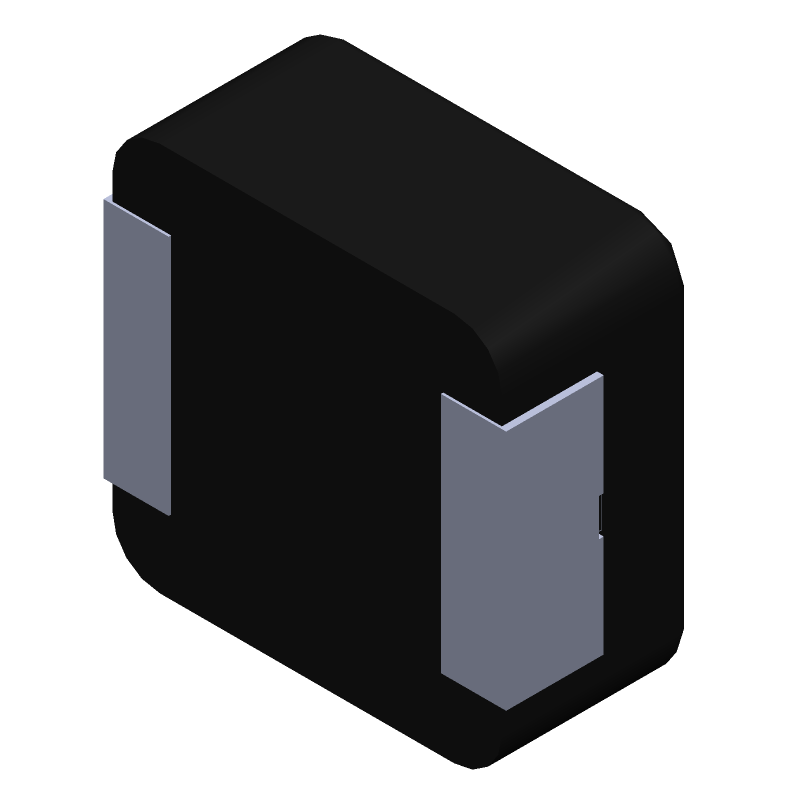

IHLP3232DZER470M51 CAD Models
IHLP3232DZER470M51 Part Data Attributes
|
|
IHLP3232DZER470M51
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
IHLP3232DZER470M51
Vishay Intertechnologies
General Purpose Inductor, 47uH, 20%, Iron-Core, 3432,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Case/Size Code | 3232 | |
| Construction | Rectangular | |
| Core Material | COMPOSITE | |
| DC Resistance | 0.26964 Ω | |
| Inductance-Nom (L) | 47 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 4 mm | |
| Package Length | 8.18 mm | |
| Package Style | SMT | |
| Package Width | 8.18 mm | |
| Packing Method | TR, 13 Inch | |
| Rated Current-Max | 2.4 A | |
| Self Resonance Frequency | 5.5 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Finish | TIN OVER NICKEL | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
