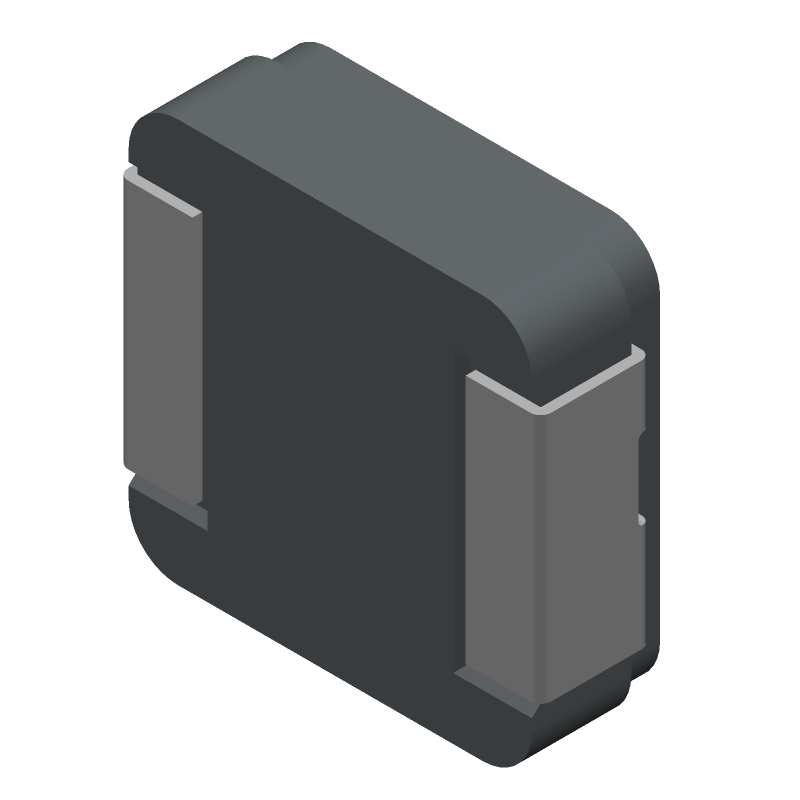

IHLP3232CZERR22M01 by:

General Purpose Inductor, 0.22uH, 20%, 1 Element, Composite-Core, SMD, 3232, CHIP

Part Details for IHLP3232CZERR22M01 by Vishay Intertechnologies

Results Overview of IHLP3232CZERR22M01 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

IHLP3232CZERR22M01 Information

IHLP3232CZERR22M01 by Vishay Intertechnologies is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.

Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
