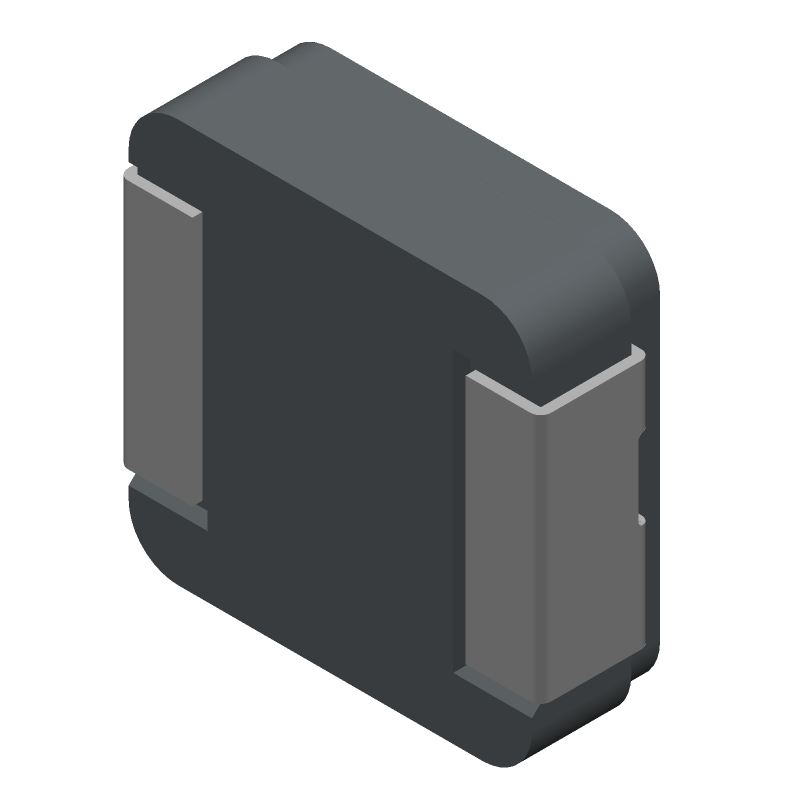

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IHLP3232CZER5R6MA1 by Vishay Intertechnologies
Results Overview of IHLP3232CZER5R6MA1 by Vishay Intertechnologies
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
IHLP3232CZER5R6MA1 Information
IHLP3232CZER5R6MA1 by Vishay Intertechnologies is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for IHLP3232CZER5R6MA1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
92AH3097
|
Newark | Ihlp-3232Cz-A1 |Vishay IHLP3232CZER5R6MA1 RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
IHLP3232CZER5R6MA1
|
Avnet Americas | IHLP-3232CZ-A1 5.6 20% ER E3 - Tape and Reel (Alt: IHLP3232CZER5R6MA1) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.5453 / $0.6243 | Buy Now |
|
DISTI #
70-IHLP3232CZR5R6MA1
|
Mouser Electronics | Power Inductors - SMD 5.6uH 20% AEC-Q200 RoHS: Compliant | 0 |
|
$0.5680 / $1.2800 | Order Now |
Part Details for IHLP3232CZER5R6MA1
IHLP3232CZER5R6MA1 CAD Models
IHLP3232CZER5R6MA1 Part Data Attributes
|
|
IHLP3232CZER5R6MA1
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
IHLP3232CZER5R6MA1
Vishay Intertechnologies
General Purpose Inductor, 5.6uH, 20%, 1 Element, Composite-Core, SMD, 3232, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Case/Size Code | 3232 | |
| Construction | RECTANGULAR PACKAGE | |
| Core Material | COMPOSITE | |
| DC Resistance | 0.0372 Ω | |
| Inductance-Nom (L) | 5.6 µH | |
| Inductor Application | HIGH CURRENT INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 3 mm | |
| Package Length | 8.18 mm | |
| Package Style | SMT | |
| Package Width | 8.18 mm | |
| Packing Method | TR, 13 Inch | |
| Rated Current-Max | 6.3 A | |
| Reference Standard | AEC-Q200 | |
| Self Resonance Frequency | 21 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Finish | TIN OVER NICKEL | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
