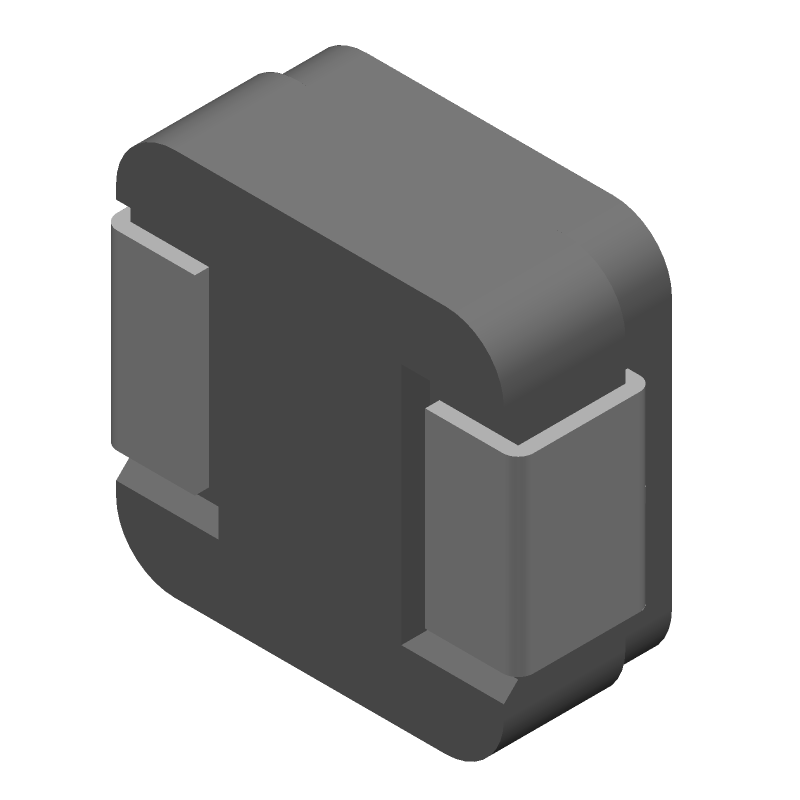

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IHLP1616BZERR22M11 by Vishay Intertechnologies
Results Overview of IHLP1616BZERR22M11 by Vishay Intertechnologies
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Industrial Automation
IHLP1616BZERR22M11 Information
IHLP1616BZERR22M11 by Vishay Intertechnologies is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for IHLP1616BZERR22M11
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AM3574
|
Newark | Ihlp-1616Bz-11 .22 20% Er E3 |Vishay IHLP1616BZERR22M11 RoHS: Not Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2430 / $0.2480 | Buy Now |
|
DISTI #
56AC1010
|
Newark | Inductor, Shielded, 220Nh, 9A, Inductance:220Nh, Rms Current (Irms):9A, Inductor Construction:Shielded, Saturation Current (Isat):9A, Product Range:Ihlp-1616Bz-11 Series, Inductor Case/Package:-, Dc Resistance Max:0.007Ohm Rohs Compliant: Yes |Vishay IHLP1616BZERR22M11 RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.7510 | Buy Now |
|
DISTI #
45M5858
|
Newark | Inductor, Shielded, 220Nh, 9A, Smd, Full Reel, Inductance:220Nh, Rms Current (Irms):9A, Inductor Construction:Shielded, Saturation Current (Isat):9A, Product Range:Ihlp-1616Bz-11 Series, Inductor Case/Package:-, Product Height:2Mm Rohs Compliant: Yes |Vishay IHLP1616BZERR22M11 RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.5280 / $0.5550 | Buy Now |
|
DISTI #
IHLP1616BZERR22M11
|
Avnet Americas | IHLP-1616BZ-11 .22 20% ER E3 - Tape and Reel (Alt: IHLP1616BZERR22M11) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 10 Weeks, 0 Days Container: Reel | 16000 |
|
$0.2400 / $0.2475 | Buy Now |
|
DISTI #
70-IHLP1616BZERR22M1
|
Mouser Electronics | Power Inductors - SMD 0.22uH 20% RoHS: Compliant | 4150 |
|
$0.4280 / $0.9400 | Buy Now |
|
|
Bristol Electronics | 4000 |
|
RFQ | ||
|
|
Quest Components | 3200 |
|
$0.9900 / $2.6400 | Buy Now | |
|
|
Quest Components | 796 |
|
$0.5200 / $2.0000 | Buy Now | |
|
DISTI #
IHLP1616BZERR22M11
|
TTI | Power Inductors - SMD 0.22uH 20% pbFree: Pb-Free Min Qty: 4000 Package Multiple: 4000 Container: Reel |
Americas - 4000 In Stock |
|
$0.3170 / $0.3360 | Buy Now |
|
DISTI #
IHLP1616BZERR22M11
|
Avnet Abacus | IHLP1616BZ11 22 20 ER E3 - Tape and Reel (Alt: IHLP1616BZERR22M11) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 16 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for IHLP1616BZERR22M11
IHLP1616BZERR22M11 CAD Models
IHLP1616BZERR22M11 Part Data Attributes
|
|
IHLP1616BZERR22M11
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
IHLP1616BZERR22M11
Vishay Intertechnologies
General Purpose Inductor, 0.22uH, 20%, 1 Element, Composite-Core, SMD, 1616, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Case/Size Code | 1616 | |
| Construction | Shielded | |
| Core Material | COMPOSITE | |
| DC Resistance | 0.007 Ω | |
| Inductance-Nom (L) | 0.22 µH | |
| Inductor Application | HIGH CURRENT INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 2 mm | |
| Package Length | 4.06 mm | |
| Package Style | SMT | |
| Package Width | 4.06 mm | |
| Packing Method | TR, 13 Inch | |
| Rated Current-Max | 9 A | |
| Self Resonance Frequency | 158 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
Alternate Parts for IHLP1616BZERR22M11
This table gives cross-reference parts and alternative options found for IHLP1616BZERR22M11. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IHLP1616BZERR22M11, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| IHLP1616BZERR22M11 | Vishay Dale | Check for Price | General Fixed Inductor, 1 ELEMENT, 0.22 uH, COMPOSITE-CORE, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 1616, HALOGEN FREE AND ROHS COMPLIANT | IHLP1616BZERR22M11 vs IHLP1616BZERR22M11 |
IHLP1616BZERR22M11 Frequently Asked Questions (FAQ)
-
The recommended land pattern for the IHLP1616BZERR22M11 is a rectangular pad with a size of 1.6 mm x 1.6 mm, with a non-solder mask defined (NSMD) pad shape.
-
The IHLP1616BZERR22M11 has a maximum operating temperature of 125°C. Ensure good airflow around the inductor, and consider using a heat sink or thermal interface material if the inductor will be operating near its maximum temperature rating.
-
The SRF of the IHLP1616BZERR22M11 is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. A rough estimate can be made using the formula SRF ≈ 1 / (2 * π * √(L * C)), where L is the inductance and C is the capacitance.
-
The IHLP1616BZERR22M11 is designed for high-frequency applications, but its performance may degrade above 100 MHz. Be sure to evaluate the inductor's impedance and loss characteristics at the specific frequency of operation.
-
Follow proper PCB design and assembly guidelines, ensure the inductor is operated within its specified ratings, and avoid exposing the inductor to mechanical stress, moisture, or extreme temperatures.
