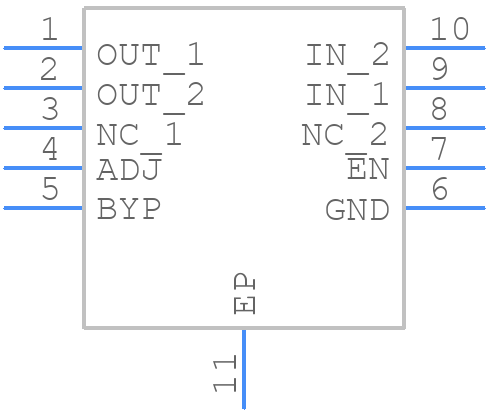

Part Symbol
-
Footprint
-

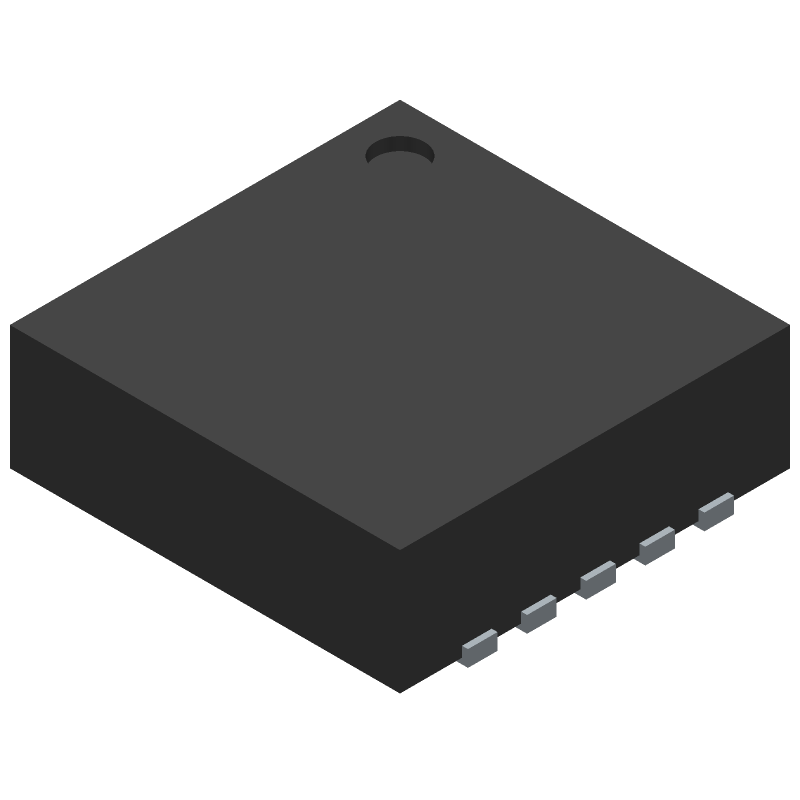

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IFX1763LDVXUMA1 by Infineon Technologies AG
Results Overview of IFX1763LDVXUMA1 by Infineon Technologies AG
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
IFX1763LDVXUMA1 Information
IFX1763LDVXUMA1 by Infineon Technologies AG is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for IFX1763LDVXUMA1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3294644
|
Farnell | LDO, ADJ, 1.22-20V, 0.5A, -40 TO 125DEGC RoHS: Compliant Min Qty: 1 Lead time: 51 Weeks, 1 Days Container: Cut Tape | 787 |
|
$1.1477 / $1.4744 | Buy Now |
|
DISTI #
3294644RL
|
Farnell | LDO, ADJ, 1.22-20V, 0.5A, -40 TO 125DEGC RoHS: Compliant Min Qty: 100 Lead time: 51 Weeks, 1 Days Container: Reel | 787 |
|
$1.1477 / $1.1902 | Buy Now |
|
DISTI #
87030942
|
Verical | LDO Regulator Pos 1.22V to 20V 0.5A 10-Pin TSON EP T/R RoHS: Compliant Min Qty: 424 Package Multiple: 1 Date Code: 2101 | Americas - 10000 |
|
$0.5496 / $0.8865 | Buy Now |
|
DISTI #
87030917
|
Verical | LDO Regulator Pos 1.22V to 20V 0.5A 10-Pin TSON EP T/R RoHS: Compliant Min Qty: 424 Package Multiple: 1 Date Code: 2201 | Americas - 4456 |
|
$0.5496 / $0.8865 | Buy Now |
|
DISTI #
87045034
|
Verical | LDO Regulator Pos 1.22V to 20V 0.5A 10-Pin TSON EP T/R RoHS: Compliant Min Qty: 424 Package Multiple: 1 Date Code: 2001 | Americas - 3823 |
|
$0.5496 / $0.8865 | Buy Now |
|
|
Rochester Electronics | Linear Voltage Regulator RoHS: Compliant Status: Obsolete Min Qty: 1 | 18279 |
|
$0.4397 / $0.7092 | Buy Now |
|
DISTI #
SP000937458
|
EBV Elektronik | Linear Voltage Regulators (Alt: SP000937458) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Win Source Electronics | IC REG LIN POS ADJ 500MA TSON-10 / Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA PG-TSON-10 | 18612 |
|
$2.1148 / $3.1721 | Buy Now |
Part Details for IFX1763LDVXUMA1
IFX1763LDVXUMA1 CAD Models
IFX1763LDVXUMA1 Part Data Attributes
|
|
IFX1763LDVXUMA1
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
IFX1763LDVXUMA1
Infineon Technologies AG
Adjustable Positive LDO Regulator, 1.22V Min, 20V Max, 0.45V Dropout, PDSO10, GREEN, PLASTIC, TSON-10
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Package Description | GREEN, PLASTIC, TSON-10 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Infineon | |
| Dropout Voltage1-Max | 0.45 V | |
| JESD-30 Code | S-PDSO-N10 | |
| JESD-609 Code | e3 | |
| Length | 3.3 mm | |
| Moisture Sensitivity Level | 2A | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.5 A | |
| Output Voltage1-Max | 20 V | |
| Output Voltage1-Min | 1.22 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.15 mm | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Width | 3.3 mm |
IFX1763LDVXUMA1 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 100nF) close to the device.
-
Use a stable power supply with a low ripple (< 1%) and a voltage regulator (e.g., LDO) to regulate the voltage. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device, and consider adding a ferrite bead or a pi-filter for noise reduction.
-
The recommended operating temperature range is -40°C to 125°C. However, the device can operate up to 150°C for short periods (e.g., during automotive load dump conditions).
-
To configure the device for low-power mode, set the EN pin low, and ensure the device is in shutdown mode. This reduces the current consumption to < 10uA. Additionally, consider using a low-power oscillator and reducing the clock frequency to minimize power consumption.
-
Use ESD protection devices (e.g., TVS diodes or ESD arrays) on the input and output pins to protect against electrostatic discharge. Ensure the ESD protection devices are rated for the maximum voltage and current of the application.
