IFSC0806AZER100M01 by:

General Purpose Inductor, 10uH, 20%, 1 Element, SMD, 0806, CHIP, 0806, HALOGEN FREE AND ROHS COMPLIANT

Part Details for IFSC0806AZER100M01 by Vishay Intertechnologies

Results Overview of IFSC0806AZER100M01 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

IFSC0806AZER100M01 Information

IFSC0806AZER100M01 by Vishay Intertechnologies is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.

Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.

Price & Stock for IFSC0806AZER100M01

Part # Distributor Description Stock Price Buy
DISTI # 47T5088
Newark Inductor, Shielded, 10Uh, 620Ma, Smd, Inductance:10Μh, Rms Current (Irms):450Ma, Inductor Construction:Shielded, Saturation Current (Isat):620Ma, Product Range:Ifsc-0806Az-01 Series, Inductor Case/Package:0806 [2016 Metric] Rohs Compliant: Yes |Vishay IFSC0806AZER100M01 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 2
  • 1 $0.4950
  • 25 $0.3940
  • 50 $0.3570
  • 100 $0.3200
  • 250 $0.3070
  • 500 $0.2950
  • 1,000 $0.2820
$0.2820 / $0.4950 Buy Now
DISTI # 47T5088
Avnet Americas IFSC-0806AZ-01 10 20% ER E3 - Product that comes on tape, but is not reeled (Alt: 47T5088) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks, 3 Days Container: Ammo Pack 2 Partner Stock
  • 1 $0.3200
$0.3200 Buy Now
DISTI # IFSC0806AZER100M01
Avnet Americas IFSC-0806AZ-01 10 20% ER E3 - Tape and Reel (Alt: IFSC0806AZER100M01) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 18 Weeks, 0 Days Container: Reel 0
  • 3,000 $0.2087
  • 6,000 $0.1921
  • 12,000 $0.1911
  • 18,000 $0.1901
  • 24,000 $0.1891
$0.1891 / $0.2087 Buy Now
DISTI # 70-IFSC0806AZER100M0
Mouser Electronics Power Inductors - SMD 10uH 20% RoHS: Compliant 8368
  • 1 $0.4500
  • 10 $0.3690
  • 100 $0.3040
  • 1,000 $0.2460
  • 3,000 $0.2270
  • 6,000 $0.2190
  • 9,000 $0.2120
$0.2120 / $0.4500 Buy Now
DISTI # V72:2272_09489231
Arrow Electronics Shielded Power Inductor Small case size, High Current RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2132 Container: Cut Strips Americas - 7
  • 1 $0.2280
$0.2280 Buy Now
DISTI # 65149198
Verical Shielded Power Inductor Small case size, High Current RoHS: Compliant Min Qty: 138 Package Multiple: 1 Americas - 1250
  • 138 $0.2600
$0.2600 Buy Now
DISTI # IFSC0806AZER100M01
TTI Power Inductors - SMD 10uH 20% pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel Americas - 0
  • 3,000 $0.2550
  • 6,000 $0.2500
  • 12,000 $0.2380
  • 24,000 $0.2330
$0.2330 / $0.2550 Buy Now
DISTI # IFSC0806AZER100M01
Avnet Abacus IFSC0806AZ01 10 20 ER E3 - Tape and Reel (Alt: IFSC0806AZER100M01) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 21 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # IFSC0806AZER100M01
Avnet Asia IFSC-0806AZ-01 10 20% ER E3 (Alt: IFSC0806AZER100M01) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days 0
  • 3,000 $0.2352
  • 6,000 $0.2319
  • 9,000 $0.2288
  • 15,000 $0.2257
  • 30,000 $0.2197
  • 75,000 $0.2141
  • 150,000 $0.2087
$0.2087 / $0.2352 Buy Now
DISTI # IFSC0806AZER100M01
Chip One Stop Passives RoHS: Compliant Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 1250
  • 5 $0.2600
$0.2600 Buy Now

Part Details for IFSC0806AZER100M01

IFSC0806AZER100M01 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

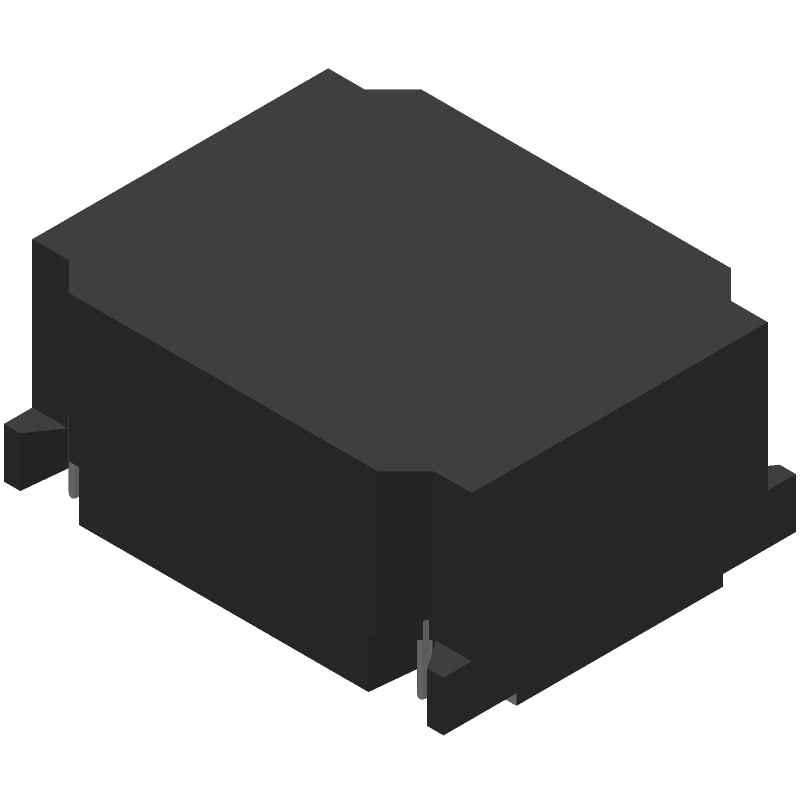

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

IFSC0806AZER100M01 Part Data Attributes

Parametric Data
IFSC0806AZER100M01 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
IFSC0806AZER100M01 Vishay Intertechnologies General Purpose Inductor, 10uH, 20%, 1 Element, SMD, 0806, CHIP, 0806, HALOGEN FREE AND ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8504.50.80.00
Factory Lead Time 19 Weeks, 3 Days
Samacsys Manufacturer Vishay
Case/Size Code 0806
Construction Rectangular
DC Resistance 1.119 Ω
Inductance-Nom (L) 10 µH
Inductor Application HIGH CURRENT INDUCTOR
Inductor Type GENERAL PURPOSE INDUCTOR
JESD-609 Code e3
Number of Functions 1
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 1 mm
Package Length 2 mm
Package Style SMT
Package Width 1.6 mm
Packing Method TR, 7 Inch
Rated Current-Max 0.42 A
Shape/Size Description RECTANGULAR PACKAGE
Shielded YES
Surface Mount YES
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Placement DUAL ENDED
Terminal Shape WRAPAROUND
Test Frequency 0.1 MHz
Tolerance 20%
