Memory / FIFOs / IDT7204L12SOG
Datasheets
IDT7204L12SOG by:

FIFO, 4KX9, 12ns, Asynchronous, CMOS, PDSO28

Part Details for IDT7204L12SOG by Renesas Electronics Corporation

Results Overview of IDT7204L12SOG by Renesas Electronics Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

IDT7204L12SOG Information

IDT7204L12SOG by Renesas Electronics Corporation is an FIFO.
FIFOs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Part Details for IDT7204L12SOG

IDT7204L12SOG CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

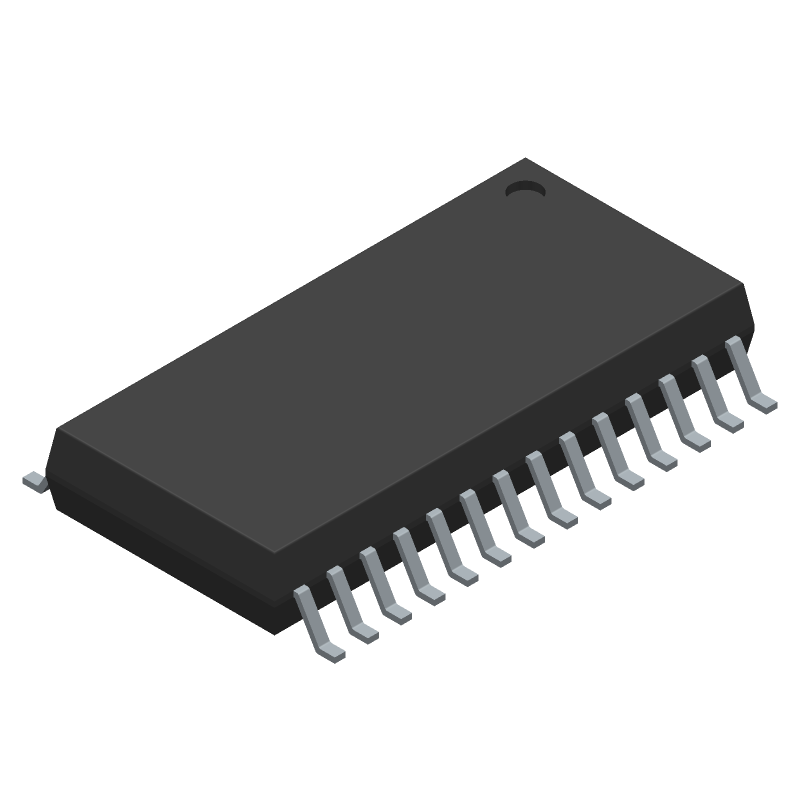

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

IDT7204L12SOG Part Data Attributes

Parametric Data
IDT7204L12SOG Renesas Electronics Corporation
Buy Now Datasheet
Compare Parts:
IDT7204L12SOG Renesas Electronics Corporation FIFO, 4KX9, 12ns, Asynchronous, CMOS, PDSO28
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer RENESAS ELECTRONICS CORP
Package Description GREEN, PLASTIC, SOIC-28
Reach Compliance Code compliant
Samacsys Manufacturer Renesas Electronics
Access Time-Max 12 ns
Additional Feature RETRANSMIT
Cycle Time 20 ns
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 18.3642 mm
Memory Density 36864 bit
Memory IC Type OTHER FIFO
Memory Width 9
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 28
Number of Words 4096 words
Number of Words Code 4000
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 70 °C
Operating Temperature-Min
Organization 4KX9
Output Characteristics 3-STATE
Output Enable NO
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 3.048 mm
Supply Current-Max 0.12 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 8.763 mm

Alternate Parts for IDT7204L12SOG

This table gives cross-reference parts and alternative options found for IDT7204L12SOG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IDT7204L12SOG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
7204L12SOG8 Integrated Device Technology Inc Check for Price SOIC-28, Reel IDT7204L12SOG vs 7204L12SOG8
7203L12SOG Integrated Device Technology Inc Check for Price FIFO IDT7204L12SOG vs 7203L12SOG
IDT7204S12SO8 Integrated Device Technology Inc Check for Price FIFO, 4KX9, 12ns, Asynchronous, CMOS, PDSO28, PLASTIC, SOIC-28 IDT7204L12SOG vs IDT7204S12SO8
7204L12SO Integrated Device Technology Inc Check for Price SOIC-28, Tube IDT7204L12SOG vs 7204L12SO
IDT7204L12SO8 Integrated Device Technology Inc Check for Price FIFO, 4KX9, 12ns, Asynchronous, CMOS, PDSO28, SOIC-28 IDT7204L12SOG vs IDT7204L12SO8
7204L12SOG8 Renesas Electronics Corporation Check for Price 4K x 9 AsyncFIFO, 5.0V, SOIC0/Reel IDT7204L12SOG vs 7204L12SOG8
IDT7204L12SO Rochester Electronics LLC Check for Price FIFO, 4KX9, 12ns, Asynchronous, CMOS, PDSO28, SOIC-28 IDT7204L12SOG vs IDT7204L12SO
Part Number Manufacturer Composite Price Description Compare
IDT7204S12SO Rochester Electronics LLC Check for Price FIFO, 4KX9, 12ns, Asynchronous, CMOS, PDSO28, 0.330 INCH, 0.050 INCH PITCH, SOIC-28 IDT7204L12SOG vs IDT7204S12SO
7203L12SOG8 Integrated Device Technology Inc Check for Price FIFO IDT7204L12SOG vs 7203L12SOG8
IDT7204L12SOG8 Integrated Device Technology Inc Check for Price FIFO, 4KX9, 12ns, Asynchronous, CMOS, PDSO28, SOIC-28 IDT7204L12SOG vs IDT7204L12SOG8
IDT7204S12D Integrated Device Technology Inc Check for Price FIFO, 4KX9, 12ns, Asynchronous, CMOS, CDIP28, 0.600 INCH, CERDIP-28 IDT7204L12SOG vs IDT7204S12D
7204L12TD Integrated Device Technology Inc Check for Price FIFO, 4KX9, 12ns, Asynchronous, CMOS, CDIP28, CERAMIC, DIP-28 IDT7204L12SOG vs 7204L12TD
7204L12SOG Renesas Electronics Corporation Check for Price 4K x 9 AsyncFIFO, 5.0V, SOIC26/Tube IDT7204L12SOG vs 7204L12SOG
IDT7204L12P Integrated Device Technology Inc Check for Price FIFO, 4KX9, 12ns, Asynchronous, CMOS, PDIP28, PLASTIC, DIP-28 IDT7204L12SOG vs IDT7204L12P
IDT7204S12D Rochester Electronics LLC Check for Price FIFO, 4KX9, 12ns, Asynchronous, CMOS, CDIP28, 0.600 INCH, CERDIP-28 IDT7204L12SOG vs IDT7204S12D
7204L12TPG Integrated Device Technology Inc Check for Price PDIP-28, Tube IDT7204L12SOG vs 7204L12TPG
7204L12TDG Integrated Device Technology Inc Check for Price FIFO, 4KX9, 12ns, Asynchronous, CMOS, CDIP28, GREEN, CERAMIC, DIP-28 IDT7204L12SOG vs 7204L12TDG
