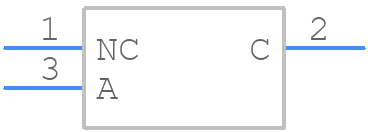

Part Symbol
-

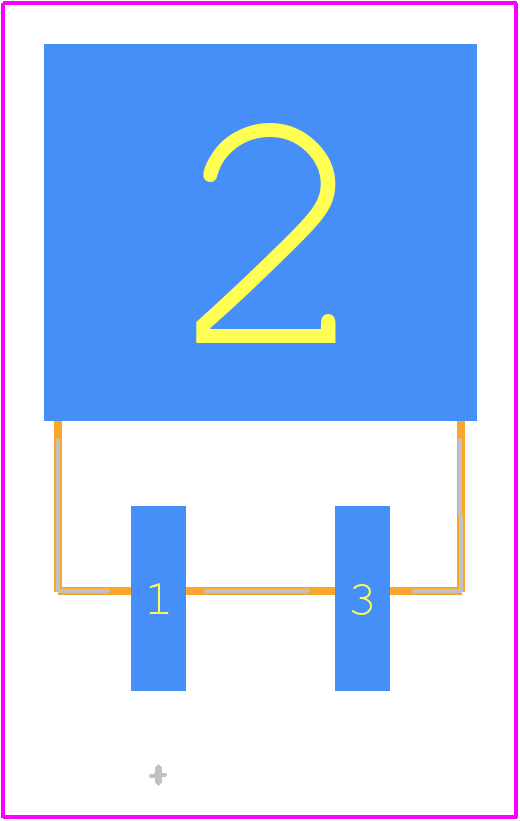

Footprint
-

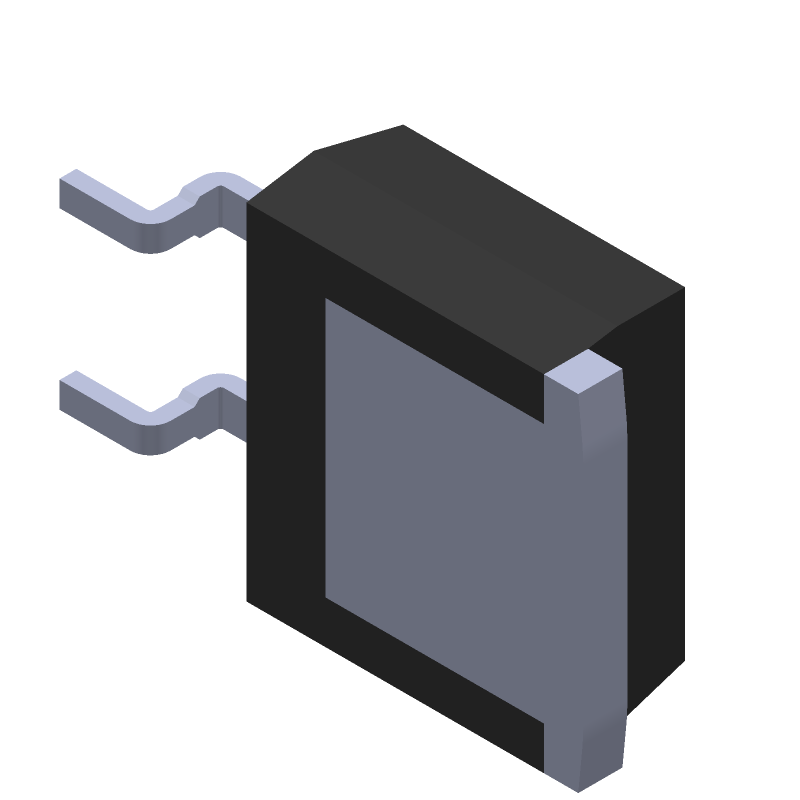

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IDB30E120 by Infineon Technologies AG
Results Overview of IDB30E120 by Infineon Technologies AG
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
IDB30E120 Information
IDB30E120 by Infineon Technologies AG is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for IDB30E120
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
726-IDB30E120
|
Mouser Electronics | Small Signal Switching Diodes FAST SWITCH EMCON DIODE 1200V 30A RoHS: Compliant | 1277 |
|
$0.7680 / $2.1100 | Buy Now |
Part Details for IDB30E120
IDB30E120 CAD Models
IDB30E120 Part Data Attributes
|
|
IDB30E120
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
IDB30E120
Infineon Technologies AG
Rectifier Diode, 1 Phase, 1 Element, 50A, 1200V V(RRM), Silicon, TO-263AB, GREEN, PLASTIC, TO-263, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Part Package Code | D2PAK | |
| Package Description | GREEN, PLASTIC, TO-263, 3 PIN | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | Infineon | |
| Application | FAST RECOVERY | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 2.15 V | |
| JEDEC-95 Code | TO-263AB | |
| JESD-30 Code | R-PSSO-G2 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 102 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 50 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Power Dissipation-Max | 138 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 1200 V | |
| Reverse Recovery Time-Max | 0.243 µs | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
IDB30E120 Frequently Asked Questions (FAQ)
-
Infineon provides a recommended PCB layout in their application note AN2019-03, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
-
Infineon recommends using a gate driver with a minimum output current of 2A and a voltage rating that matches the IDB30E120's VCC voltage. The driver should also have a propagation delay of less than 50ns to ensure proper switching.
-
According to Infineon's application note AN2019-03, the maximum allowed voltage overshoot during turn-on and turn-off is 10% of the DC-link voltage, but not exceeding 50V.
-
Infineon recommends following the guidelines in their application note AN2019-03, which includes tips on PCB layout, component selection, and shielding to ensure EMC compliance.
-
Infineon recommends using a heat sink with a thermal resistance of less than 1K/W and a fan with a minimum airflow of 200LFM to ensure proper cooling in high-power applications.
