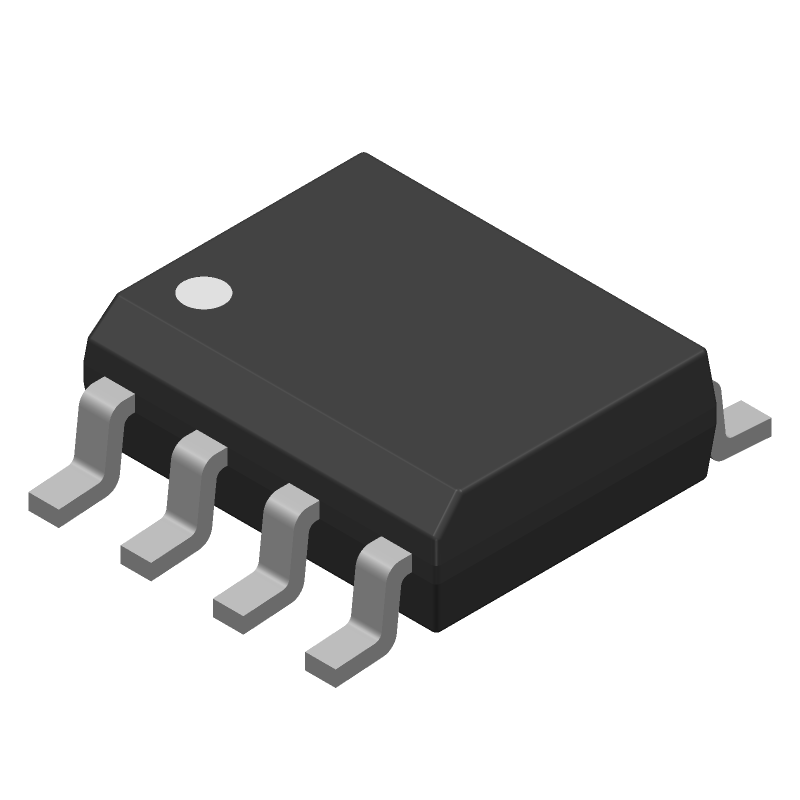

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ICM7555ISA+ by Analog Devices Inc
Results Overview of ICM7555ISA+ by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
ICM7555ISA+ Information
ICM7555ISA+ by Analog Devices Inc is an Analog Waveform Generation Function.
Analog Waveform Generation Functions are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ICM7555ISA+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2519395
|
Farnell | TIMER, -20 TO 85DEG C, SOIC-8 RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each | 44 |
|
$2.0320 / $3.1343 | Buy Now |
|
DISTI #
700-ICM7555ISA
|
Mouser Electronics | Timers & Support Products Low-Power, General-Purpose Timer RoHS: Compliant | 9973 |
|
$1.9000 / $3.0800 | Buy Now |
|
DISTI #
V36:1790_26372050
|
Arrow Electronics | Standard Timer Single -20°C 85°C 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 200 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2347 | Americas - 2000 |
|
$1.8410 / $2.7000 | Buy Now |
|
|
Analog Devices Inc | Low-Power, General-Purpose Tim Package Multiple: 1 | 4483 |
|
$1.5400 / $3.2600 | Buy Now |
|
DISTI #
ICM7555ISA+
|
TME | IC: peripheral circuit, astable,monostable,RC timer, CMOS, SO8 Min Qty: 1 | 128 |
|
$4.0300 / $5.8600 | Buy Now |
Part Details for ICM7555ISA+
ICM7555ISA+ CAD Models
ICM7555ISA+ Part Data Attributes
|
|
ICM7555ISA+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ICM7555ISA+
Analog Devices Inc
General-Purpose Timers, 8-SOIC_N-150_MIL, 8 Pins, -20 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 8-SOIC_N-150_MIL | |
| Package Description | SO-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-SOIC_N-150_MIL | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1999-05-28 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SQUARE | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -20 °C | |
| Output Frequency-Max | 0.5 MHz | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for ICM7555ISA+
This table gives cross-reference parts and alternative options found for ICM7555ISA+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ICM7555ISA+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ICM7555IBAZ-T | Renesas Electronics Corporation | $0.3198 | General Purpose Timers, SOICN, /Reel | ICM7555ISA+ vs ICM7555IBAZ-T |
| ICM7555IBAZ | Renesas Electronics Corporation | $0.3727 | General Purpose Timers, SOICN, /Tube | ICM7555ISA+ vs ICM7555IBAZ |
| ICM7555IBA | General Electric Solid State | Check for Price | Analog Waveform Generation Function, CMOS, PDSO8, | ICM7555ISA+ vs ICM7555IBA |
| ICM7555CBA | Rochester Electronics LLC | Check for Price | 1 Func, 0.1MHz, PDSO8 | ICM7555ISA+ vs ICM7555CBA |
| ICM7555IBAZ-T | Intersil Corporation | Check for Price | General Purpose Timers; PDIP8, SOIC8; Temp Range: See Datasheet | ICM7555ISA+ vs ICM7555IBAZ-T |
| ICM7555ISA+ | Maxim Integrated Products | Check for Price | 1 Func, 0.5MHz, CMOS, PDSO8, SO-8 | ICM7555ISA+ vs ICM7555ISA+ |
| ICM7555CBA-T | Harris Semiconductor | Check for Price | Analog Waveform Generation Function, CMOS, PDSO8 | ICM7555ISA+ vs ICM7555CBA-T |
| ICM7555IBA | Rochester Electronics LLC | Check for Price | 1 Func, 0.1MHz, PDSO8 | ICM7555ISA+ vs ICM7555IBA |
ICM7555ISA+ Frequently Asked Questions (FAQ)
-
The recommended power-on sequence is to apply VCC first, followed by VDD. This ensures that the internal voltage regulators are properly initialized.
-
Make sure to provide adequate heat sinking and thermal management to keep the device within its specified operating temperature range of -40°C to +85°C.
-
The ICM7555ISA+ can drive capacitive loads up to 1000pF. Exceeding this limit may cause oscillations or instability.
-
Yes, the ICM7555ISA+ can be used in switching power supply applications, but it's essential to ensure that the device is properly bypassed and decoupled to prevent noise and oscillations.
-
Check the power supply decoupling, layout, and grounding. Ensure that the device is properly bypassed, and the output capacitors are of sufficient value and type. Also, verify that the input voltage is within the specified range.
