Drivers And Interfaces / Line Driver or Receivers / ICL3241EIAZ-T
Datasheets
ICL3241EIAZ-T by:
Renesas Electronics Corporation

±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transmitters/Receivers, SSOP, /Reel

Part Details for ICL3241EIAZ-T by Renesas Electronics Corporation

Results Overview of ICL3241EIAZ-T by Renesas Electronics Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

ICL3241EIAZ-T Information

ICL3241EIAZ-T by Renesas Electronics Corporation is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for ICL3241EIAZ-T

Part # Distributor Description Stock Price Buy
DISTI # 61J6178
Newark Ic, line Transceiver, cmos,3 Driver,5 Rcvr, ssop,28Pin, plastic Rohs Compliant: Yes |Renesas ICL3241EIAZ-T RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # 20-ICL3241EIAZ-TCT-ND
DigiKey IC TRANSCEIVER FULL 3/5 28SSOP Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) Temporarily Out of Stock
  • 1 $4.4100
  • 10 $2.9200
  • 25 $2.5336
  • 100 $2.0993
  • 250 $1.8882
  • 500 $1.7596
  • 2,000 $1.4750
$1.4750 / $4.4100 Buy Now
DISTI # ICL3241EIAZ-T
Avnet Americas Triple Transmitter Quint Receiver RS-232 28-Pin SSOP T/R - Tape and Reel (Alt: ICL3241EIAZ-T) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 1 $2.8000
$2.8000 Buy Now
DISTI # 968-ICL3241EIAZ-T
Mouser Electronics RS-232 Interface IC RS232 3V 3D/5R 15KV SHTDWN INDEL RoHS: Compliant 975
  • 1 $4.5000
  • 10 $2.9800
  • 25 $2.7100
  • 100 $2.3300
  • 250 $2.2100
  • 500 $1.9800
  • 1,000 $1.6600
  • 2,000 $1.4700
$1.4700 / $4.5000 Buy Now
DISTI # ICL3241EIAZ-T
IBS Electronics ICL3241EIAZ-T by Renesas is a RS-232 transceiver with 15 kV ESD protection, 5.5 V max supply, 250 kbps data rate, and operates in the ICL3241E series. Min Qty: 2000 Package Multiple: 1 0
  • 2,000 $1.7940
  • 2,000 $1.7810
  • 3,000 $1.7680
  • 4,000 $1.7680
  • 5,000 $1.7550
$1.7550 / $1.7940 Buy Now
DISTI # ICL3241EIAZ-T
Avnet Silica Triple Transmitter Quint Receiver RS232 28Pin SSOP TR (Alt: ICL3241EIAZ-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now

Part Details for ICL3241EIAZ-T

ICL3241EIAZ-T CAD Models

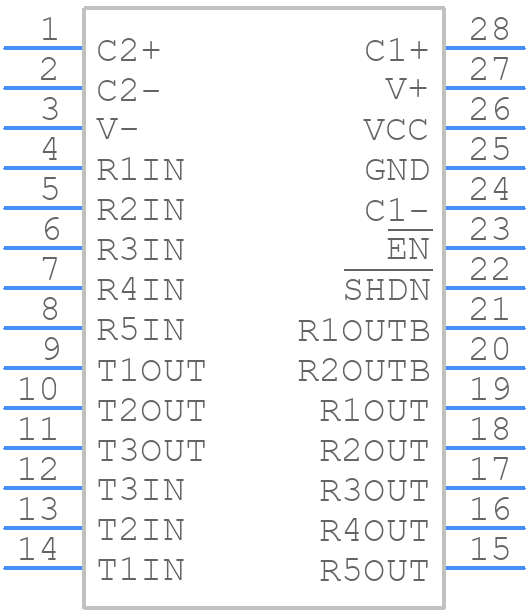

  • Part Symbol

    Part Symbol

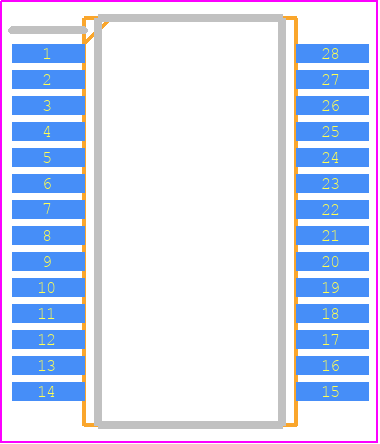

  • Footprint

    footprint

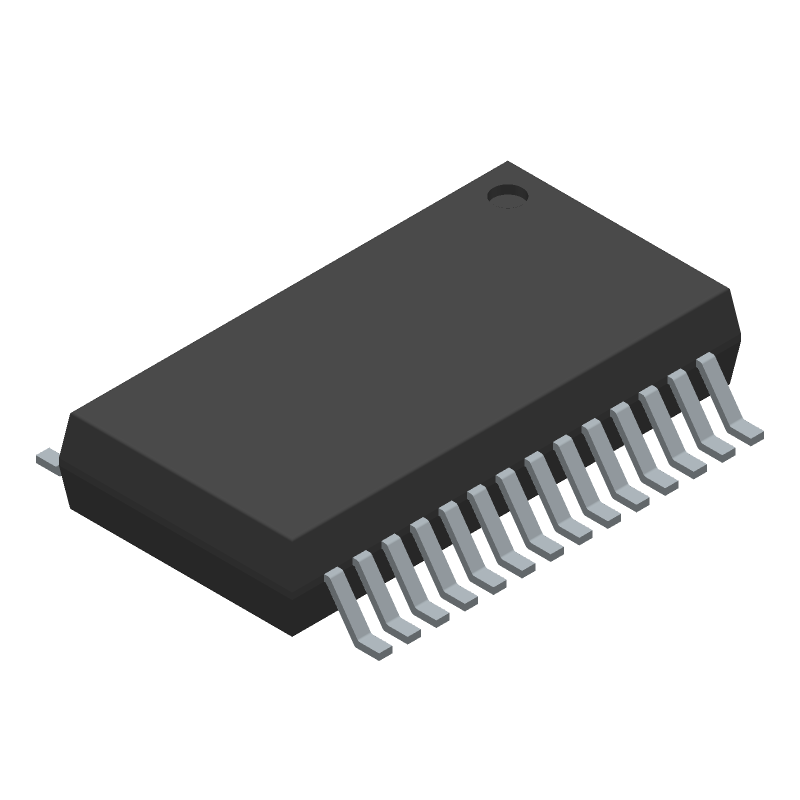

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ICL3241EIAZ-T Part Data Attributes

Parametric Data
ICL3241EIAZ-T Renesas Electronics Corporation
Buy Now Datasheet
Compare Parts:
ICL3241EIAZ-T Renesas Electronics Corporation ±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transmitters/Receivers, SSOP, /Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer RENESAS ELECTRONICS CORP
Part Package Code SSOP
Pin Count 28
Manufacturer Package Code M28.209
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 12 Weeks
Date Of Intro 2017-10-27
Samacsys Manufacturer Renesas Electronics
Differential Output NO
Driver Number of Bits 3
Input Characteristics SCHMITT TRIGGER
Interface IC Type LINE TRANSCEIVER
Interface Standard EIA-232; TIA-232; V.24; V.28
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 10.2 mm
Moisture Sensitivity Level 2
Number of Functions 3
Number of Terminals 28
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Receiver Number of Bits 5
Seated Height-Max 2 mm
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 5.3 mm

Alternate Parts for ICL3241EIAZ-T

This table gives cross-reference parts and alternative options found for ICL3241EIAZ-T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ICL3241EIAZ-T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ICL3243ECAZ-T Renesas Electronics Corporation $1.1558 ±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transmitters/Receivers, SSOP, /Reel ICL3241EIAZ-T vs ICL3243ECAZ-T
ICL3241EIAZ Renesas Electronics Corporation $1.1818 ±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transmitters/Receivers, SSOP, /Tube ICL3241EIAZ-T vs ICL3241EIAZ
ICL3243ECAZ Renesas Electronics Corporation $1.4050 ±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transmitters/Receivers, SSOP, /Tube ICL3241EIAZ-T vs ICL3243ECAZ
ICL3243EIVZ Renesas Electronics Corporation $1.4299 ±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transmitters/Receivers, TSSOP, /Tube ICL3241EIAZ-T vs ICL3243EIVZ
ICL3241ECAZ Renesas Electronics Corporation $1.4536 ±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transmitters/Receivers, SSOP, /Tube ICL3241EIAZ-T vs ICL3241ECAZ
ICL3243EIAZ-T Renesas Electronics Corporation $1.6041 ±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transmitters/Receivers, SSOP, /Reel ICL3241EIAZ-T vs ICL3243EIAZ-T
ICL3243EIVZ-T Renesas Electronics Corporation $1.6962 ±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transmitters/Receivers, TSSOP, /Reel ICL3241EIAZ-T vs ICL3243EIVZ-T
ICL3241ECAZ-T Renesas Electronics Corporation Check for Price ±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transmitters/Receivers, SSOP, /Reel ICL3241EIAZ-T vs ICL3241ECAZ-T
ICL3241EIVZ Renesas Electronics Corporation Check for Price ±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transmitters/Receivers, TSSOP, /Tube ICL3241EIAZ-T vs ICL3241EIVZ
ICL3241EIVZ-T Renesas Electronics Corporation Check for Price ±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transmitters/Receivers, TSSOP, /Reel ICL3241EIAZ-T vs ICL3241EIVZ-T

ICL3241EIAZ-T Related Parts

ICL3241EIAZ-T Frequently Asked Questions (FAQ)

  • A good PCB layout for ICL3241EIAZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the input and output stages. It's also recommended to place the device close to the signal sources and keep the input traces as short as possible.

  • To ensure the ICL3241EIAZ-T operates within its recommended operating conditions, make sure to provide a stable power supply within the recommended voltage range (4.5V to 5.5V), keep the junction temperature within the recommended range (-40°C to 125°C), and avoid exceeding the maximum ratings for input and output currents.

  • The recommended input impedance for the ICL3241EIAZ-T is 1 kΩ or higher to ensure proper operation and minimize input current. Lower input impedances may result in reduced accuracy and increased power consumption.

  • While the ICL3241EIAZ-T can operate up to 125°C, it's essential to consider the device's thermal characteristics and ensure proper heat dissipation to prevent overheating. A heat sink or thermal management system may be necessary for high-temperature applications.

  • To troubleshoot common issues with the ICL3241EIAZ-T, start by checking the power supply voltage, input signals, and output loads. Verify that the device is properly connected and configured, and check for any signs of overheating or physical damage. If issues persist, consult the datasheet and application notes for guidance or contact Renesas Electronics Corporation's technical support.
