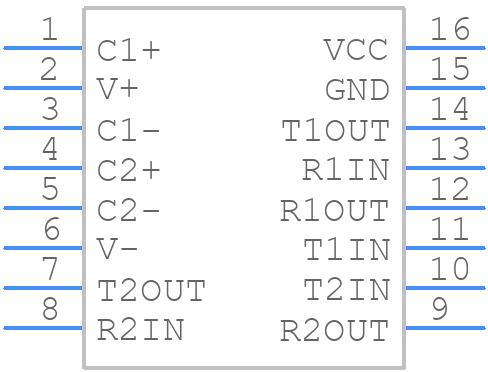

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ICL3232EIBZ-T by Renesas Electronics Corporation
Results Overview of ICL3232EIBZ-T by Renesas Electronics Corporation
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Industrial Automation
Agriculture Technology
Medical Imaging
ICL3232EIBZ-T Information
ICL3232EIBZ-T by Renesas Electronics Corporation is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ICL3232EIBZ-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ICL3232EIBZ-T
|
Avnet Silica | Dual TransmitterReceiver RS232 16Pin SOIC W TR (Alt: ICL3232EIBZ-T) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 | Silica - 0 |
|
Buy Now |
Part Details for ICL3232EIBZ-T
ICL3232EIBZ-T CAD Models
ICL3232EIBZ-T Part Data Attributes
|
|
ICL3232EIBZ-T
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ICL3232EIBZ-T
Renesas Electronics Corporation
±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transmitters/Receivers, SOICW, /Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | SOICW | |
| Pin Count | 16 | |
| Manufacturer Package Code | M16.3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2017-10-27 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Differential Output | NO | |
| Driver Number of Bits | 2 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232; TIA-232; V.24; V.28 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
ICL3232EIBZ-T Frequently Asked Questions (FAQ)
-
A good PCB layout for the ICL3232EIBZ-T involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass capacitor.
-
To ensure reliable operation of the ICL3232EIBZ-T in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range.
-
The ICL3232EIBZ-T is designed to be EMI-resistant, but it's still important to follow proper EMI mitigation practices, such as using shielding, filtering, and grounding techniques to minimize the impact of EMI on the device's performance.
-
Yes, the ICL3232EIBZ-T can be used in a system with a switching power supply, but it's essential to ensure that the power supply noise is properly filtered and regulated to prevent it from affecting the device's performance.
-
The recommended method for testing the ICL3232EIBZ-T during production involves using a combination of functional testing, such as verifying the device's output voltage and current, and parametric testing, such as measuring the device's input and output impedance.
