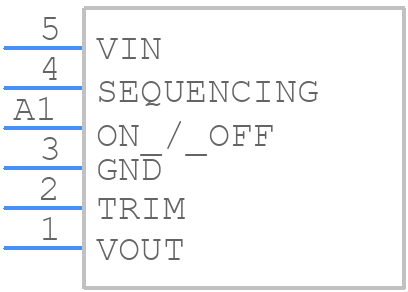

Part Symbol
-
Footprint
-

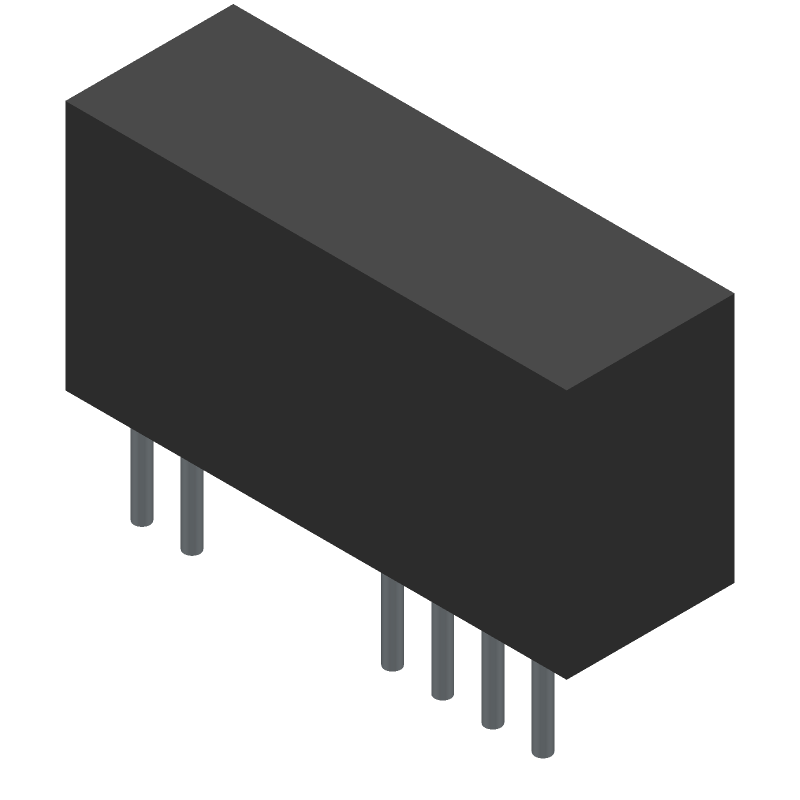

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IBD12007A008V-000-R by TDK Corporation
Results Overview of IBD12007A008V-000-R by TDK Corporation
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
IBD12007A008V-000-R Information
IBD12007A008V-000-R by TDK Corporation is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for IBD12007A008V-000-R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
IBD12007A008V-000-R
|
Avnet Americas | - Bulk (Alt: IBD12007A008V-000-R) RoHS: Compliant Min Qty: 270 Package Multiple: 270 Lead time: 22 Weeks, 0 Days Container: Bulk | 0 |
|
$13.7142 / $15.6390 | Buy Now |
|
|
Cytech Systems Limited | DC DC CONVERTER 0.8-5.5V 35W | 50 |
|
RFQ |
Part Details for IBD12007A008V-000-R
IBD12007A008V-000-R CAD Models
IBD12007A008V-000-R Part Data Attributes
|
|
IBD12007A008V-000-R
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
IBD12007A008V-000-R
TDK Corporation
DC-DC Regulated Power Supply Module, 1 Output, 35W, Hybrid,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | TDK CORP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 22 Weeks | |
| Samacsys Manufacturer | TDK | |
| Additional Feature | REMOTE SHUTDOWN | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | CB, UL, VDE | |
| Efficiency (Main Output) | 92% | |
| Input Voltage-Max | 14 V | |
| Input Voltage-Min | 6 V | |
| JESD-30 Code | R-XSMA-P6 | |
| Length | 25.4 mm | |
| Line Regulation-Max | 0.2% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 7 A | |
| Output Voltage-Max | 5.5 V | |
| Output Voltage-Min | 0.8 V | |
| Package Body Material | UNSPECIFIED | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Ripple Voltage (Main Out) | 0.0442 Vrms | |
| Seated Height-Max | 12.7 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Form | PIN/PEG | |
| Terminal Position | SINGLE | |
| Total Power Output-Max | 35 W | |
| Trim/Adjustable Output | YES | |
| Width | 8.51 mm |
