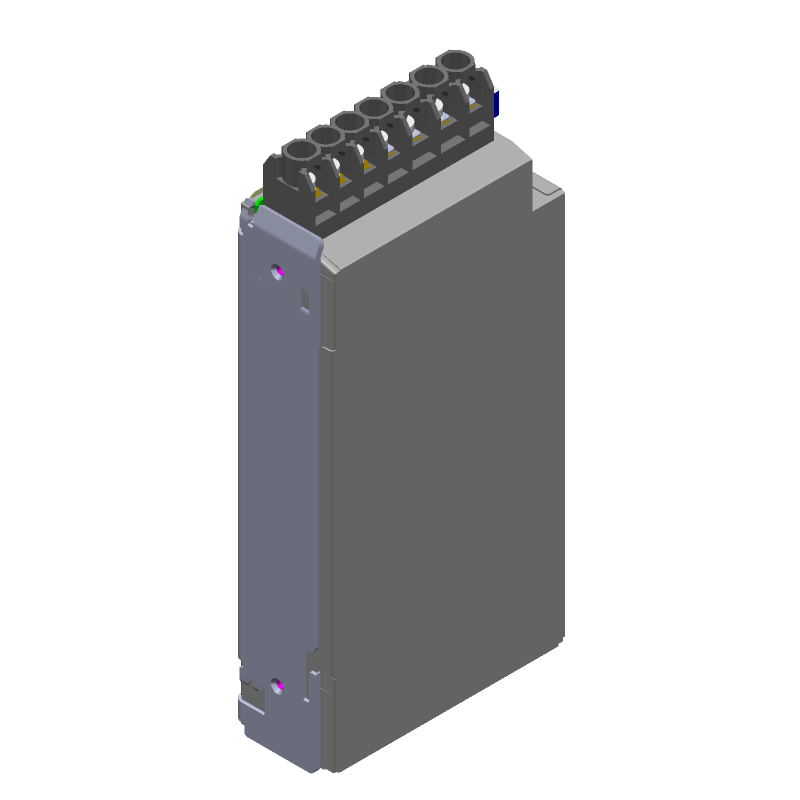

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HWS80A-48/A by TDK-Lambda Corporation
Results Overview of HWS80A-48/A by TDK-Lambda Corporation
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Industrial Automation
Smart Cities
Agriculture Technology
Renewable Energy
Automotive
Robotics and Drones
HWS80A-48/A Information
HWS80A-48/A by TDK-Lambda Corporation is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for HWS80A-48/A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
87761589
|
Verical | 50-150W Single Output Industrial Power Supplies Min Qty: 1 Package Multiple: 1 | Americas - 16 |
|
$56.0000 / $67.6000 | Buy Now |
|
DISTI #
HWS80A-48/A
|
Chip One Stop | Electromechanicals RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk | 16 |
|
$43.5000 / $67.6000 | Buy Now |
Part Details for HWS80A-48/A
HWS80A-48/A CAD Models
HWS80A-48/A Part Data Attributes
|
|
HWS80A-48/A
TDK-Lambda Corporation
Buy Now
Datasheet
|
Compare Parts:
HWS80A-48/A
TDK-Lambda Corporation
AC-DC Regulated Power Supply Module,
|
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | TDK-LAMBDA CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2019-04-10 | |
| Samacsys Manufacturer | TDK Lambda | |
| Additional Feature | ALSO OPERATES IN DC VOLTAGE FROM 120 VOLT TO 370 VOLT | |
| Analog IC - Other Type | AC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | UL, CSA, EN | |
| Efficiency (Main Output) | 89% | |
| Input Voltage-Max | 265 V | |
| Input Voltage-Min | 85 V | |
| Input Voltage-Nom | 100 V | |
| JESD-30 Code | R-XXMA-X | |
| Length | 160 mm | |
| Line Regulation-Max | 0.092% | |
| Load Regulation-Max | 0.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -10 °C | |
| Output Current-Max | 1.7 A | |
| Output Voltage-Max | 52.8 V | |
| Output Voltage-Min | 38.4 V | |
| Output Voltage-Nom | 48 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | XMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Protections | OVER CURRENT, OVER VOLTAGE | |
| Ripple Voltage (Main Out) | 0.08484 Vrms | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Form | UNSPECIFIED | |
| Terminal Position | UNSPECIFIED | |
| Total Power Output-Max | 81.6 W | |
| Trim/Adjustable Output | YES | |
| Width | 82 mm |
