Resistors / Metal Film Resistors / HVR2500003303FR500
Datasheets
HVR2500003303FR500 by:

Fixed Resistor, Metal Film, 0.25W, 330000ohm, 1600V, 1% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT

Part Details for HVR2500003303FR500 by Vishay Intertechnologies

Results Overview of HVR2500003303FR500 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Aerospace and Defense Telecommunications Communication and Networking

HVR2500003303FR500 Information

HVR2500003303FR500 by Vishay Intertechnologies is a Metal Film Resistor.
Metal Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for HVR2500003303FR500

Part # Distributor Description Stock Price Buy
DISTI # 01Y6379
Newark Hvr25 1% R5 330K |Vishay HVR2500003303FR500 RoHS: Not Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 2,500 $0.0800
$0.0800 Buy Now
DISTI # HVR2500003303FR500
Avnet Americas HVR25 1% R5 330K - Tape and Reel (Alt: HVR2500003303FR500) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 14 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.0605
  • 10,000 $0.0594
  • 20,000 $0.0555
  • 30,000 $0.0552
  • 40,000 $0.0549
$0.0549 / $0.0605 Buy Now
DISTI # 594-HVR2500003303FR5
Mouser Electronics Metal Film Resistors - Through Hole 1/4watt 330Kohms 1% RoHS: Compliant 7676
  • 1 $0.3300
  • 10 $0.2120
  • 25 $0.1590
  • 100 $0.1420
  • 250 $0.1200
  • 500 $0.1060
  • 1,000 $0.0890
  • 5,000 $0.0840
  • 10,000 $0.0670
$0.0670 / $0.3300 Buy Now
DISTI # V79:2366_23283651
Arrow Electronics Res Metal Film 330K Ohm 1% 0.25W(1/4W) ±200ppm/°C Ceramic AXL T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1636 Americas - 35
  • 1 $0.0554
$0.0554 Buy Now
DISTI # V72:2272_09555549
Arrow Electronics Res Metal Film 330K Ohm 1% 0.25W(1/4W) ±200ppm/°C Ceramic AXL T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks Date Code: 1636 Container: Cut Strips Americas - 4
  • 1 $0.0560
$0.0560 Buy Now
Bristol Electronics   4845
RFQ
Quest Components   3876
  • 1 $0.6900
  • 162 $0.2070
  • 1,933 $0.1380
$0.1380 / $0.6900 Buy Now

Part Details for HVR2500003303FR500

HVR2500003303FR500 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

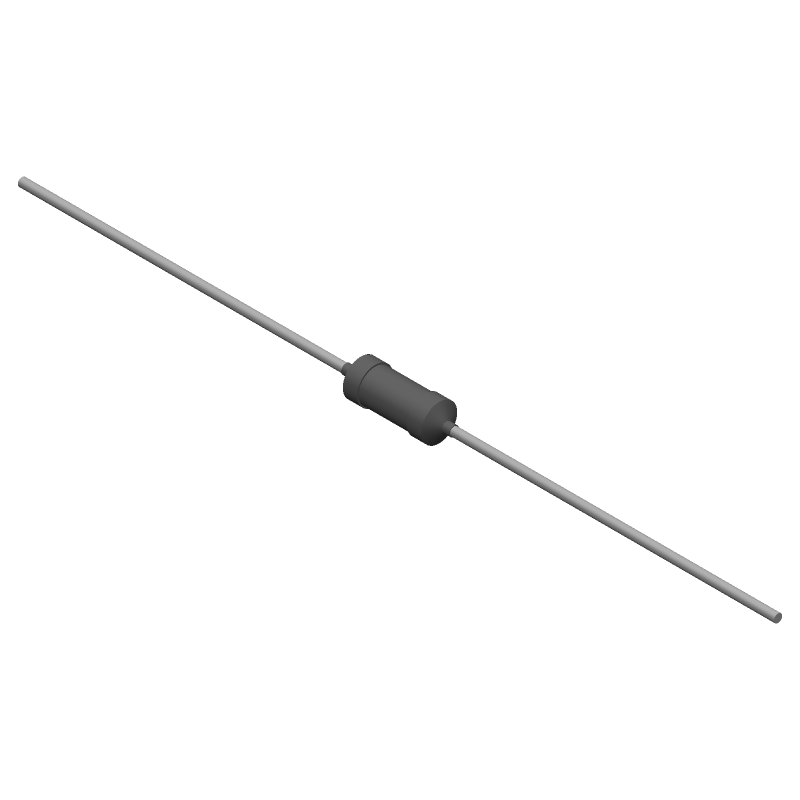

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

HVR2500003303FR500 Part Data Attributes

Parametric Data
HVR2500003303FR500 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
HVR2500003303FR500 Vishay Intertechnologies Fixed Resistor, Metal Film, 0.25W, 330000ohm, 1600V, 1% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description AXIAL LEADED
Reach Compliance Code compliant
Factory Lead Time 14 Weeks
Samacsys Manufacturer Vishay
Additional Feature RATED AC VOLTAGE (V): 1150
Construction Tubular
JESD-609 Code e3
Lead Diameter 0.58 mm
Mounting Feature THROUGH HOLE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Diameter 2.5 mm
Package Length 6.5 mm
Package Shape TUBULAR PACKAGE
Package Style Axial
Packing Method TR
Rated Power Dissipation (P) 0.25 W
Rated Temperature 70 °C
Resistance 330000 Ω
Resistor Type FIXED RESISTOR
Surface Mount NO
Technology METAL FILM
Temperature Coefficient 200 ppm/°C
Terminal Finish MATTE TIN
Terminal Shape WIRE
Tolerance 1%
Working Voltage 1600 V

Alternate Parts for HVR2500003303FR500

This table gives cross-reference parts and alternative options found for HVR2500003303FR500. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of HVR2500003303FR500, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
HVR2500003303FA100 Vishay BCcomponents Check for Price RESISTOR, METAL FILM, 0.25 W, 1 %, 200 ppm, 330000 ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT HVR2500003303FR500 vs HVR2500003303FA100
HVR2500003303FA500 Vishay BCcomponents Check for Price RESISTOR, METAL FILM, 0.25 W, 1 %, 200 ppm, 330000 ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT HVR2500003303FR500 vs HVR2500003303FA500
HVR2500003303FA500 Vishay Intertechnologies Check for Price Fixed Resistor, Metal Film, 0.25W, 330000ohm, 1600V, 1% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT HVR2500003303FR500 vs HVR2500003303FA500
