HVCB2512FKC1M00 by: SEI Stackpole Electronics Inc

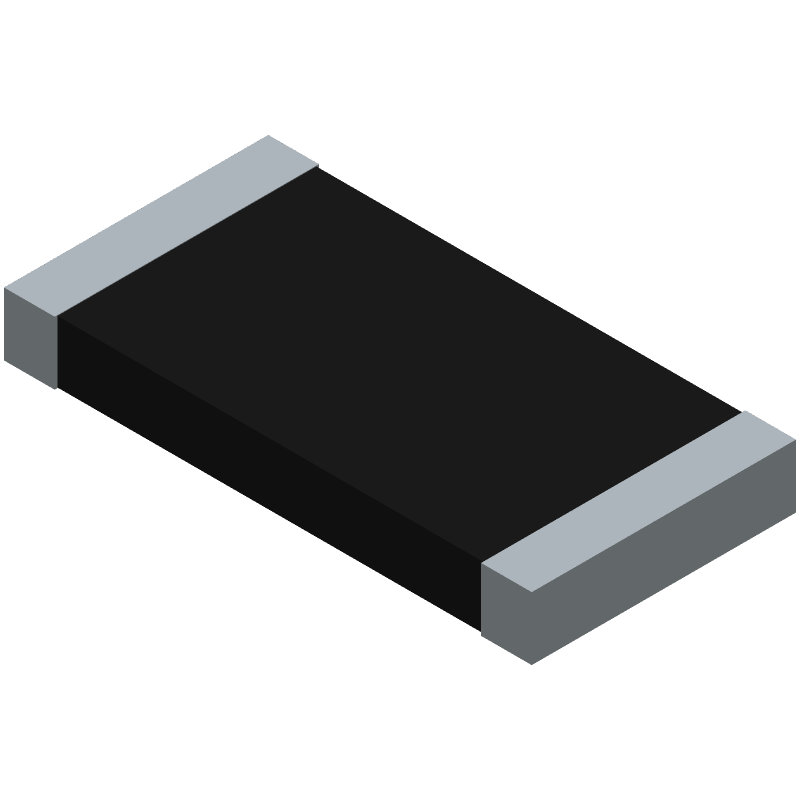

Fixed Resistor, Metal Glaze/thick Film, 2W, 1000000ohm, 3000V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 2512, CHIP

Part Details for HVCB2512FKC1M00 by SEI Stackpole Electronics Inc

Results Overview of HVCB2512FKC1M00 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Aerospace and Defense Healthcare Energy and Power Systems Medical Imaging

HVCB2512FKC1M00 Information

HVCB2512FKC1M00 by SEI Stackpole Electronics Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
