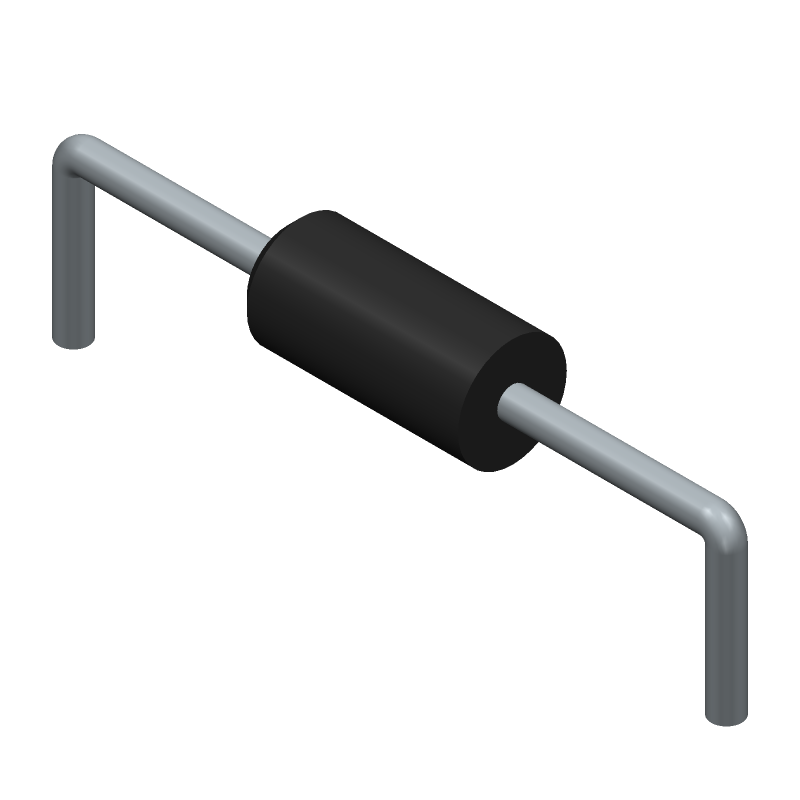

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HV6 by Diotec Semiconductor AG
Results Overview of HV6 by Diotec Semiconductor AG
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
HV6 Information
HV6 by Diotec Semiconductor AG is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for HV6
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4878-HV6CT-ND
|
DigiKey | DIODE STD 6000V 200MA DO204AC Min Qty: 1 Lead time: 2 Weeks Container: Cut Tape (CT), Tape & Box (TB) |
3042 In Stock |
|
$0.2533 / $0.8300 | Buy Now |
|
DISTI #
637-HV6
|
Mouser Electronics | Rectifiers HV Diode, DO-15, 6000V, 0.2A, 150C RoHS: Compliant | 3883 |
|
$0.2600 / $0.8200 | Buy Now |
|
|
Onlinecomponents.com | HV Diode - DO-15 - 6000V - 0.2A - 400ns RoHS: Compliant | 3000 Factory Stock |
|
$0.1669 / $0.1965 | Buy Now |
|
DISTI #
87344851
|
Verical | Diode Switching 6KV 0.2A 2-Pin DO-15 Ammo Min Qty: 165 Package Multiple: 1 | Americas - 4620 |
|
$0.3220 / $0.4256 | Buy Now |
|
DISTI #
HV6-DIO
|
TME | Diode: rectifying, THT, 6kV, 0.2A, Ammo Pack, Ifsm: 27A, DO15, Ir: 5uA Min Qty: 3 | 0 |
|
$0.2050 / $0.3080 | RFQ |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
DSGLS7192
|
Rutronik | SI-DIODE 0,2A 6000V DO15 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Ammo Pack |
Stock DE - 18000 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$0.2762 / $0.3186 | Buy Now |
|
|
Master Electronics | HV Diode - DO-15 - 6000V - 0.2A - 400ns RoHS: Compliant | 3000 Factory Stock |
|
$0.1669 / $0.1965 | Buy Now |
Part Details for HV6
HV6 CAD Models
HV6 Part Data Attributes
|
|
HV6
Diotec Semiconductor AG
Buy Now
Datasheet
|
Compare Parts:
HV6
Diotec Semiconductor AG
Rectifier Diode, 1 Element, 0.2A, 6000V V(RRM), Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIOTEC SEMICONDUCTOR AG | |
| Part Package Code | DO-15 | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | Diotec | |
| Application | GENERAL PURPOSE | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 6 V | |
| JEDEC-95 Code | DO-15 | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -50 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 6000 V | |
| Reverse Recovery Time-Max | 0.4 µs | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
