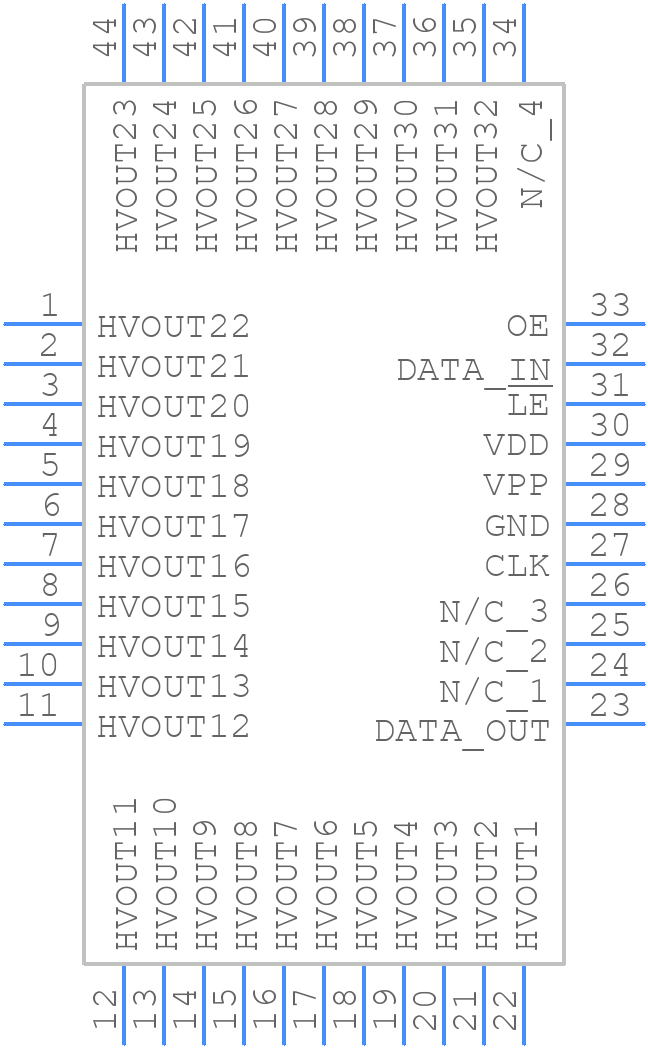

Part Symbol
-

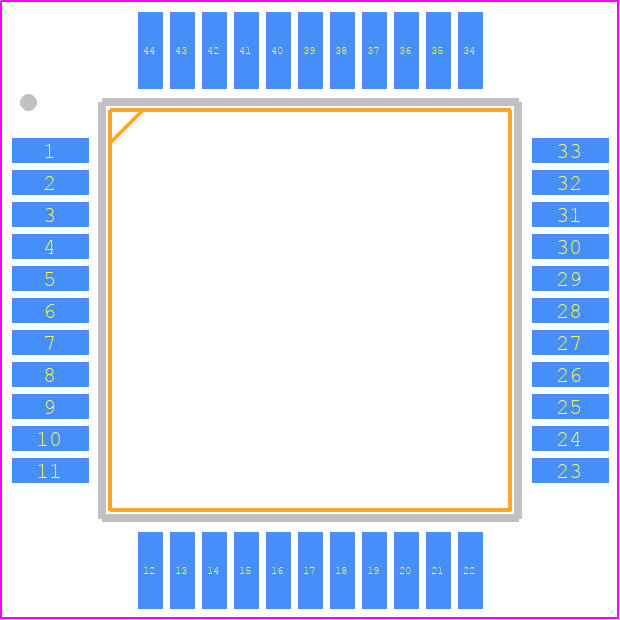

Footprint
-

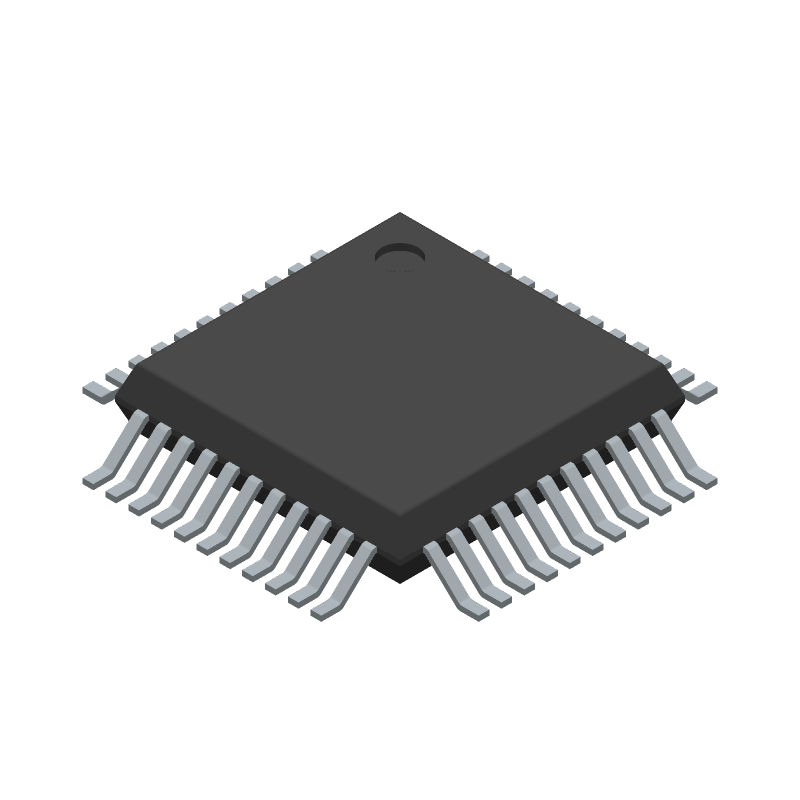

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HV5308PJ-B-G-M903 by Microchip Technology Inc
Results Overview of HV5308PJ-B-G-M903 by Microchip Technology Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
HV5308PJ-B-G-M903 Information
HV5308PJ-B-G-M903 by Microchip Technology Inc is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LM9036QMX-3.3/NOPB | Texas Instruments | Ultra-Low Quiescent Current Voltage Regulator 8-SOIC -40 to 125 | |
| LM9036QM-5.0/NOPB | Texas Instruments | Ultra-Low Quiescent Current Voltage Regulator 8-SOIC -40 to 125 | |
| LM9036MM-5.0/NOPB | Texas Instruments | Ultra-Low Quiescent Current Voltage Regulator 8-VSSOP -40 to 125 |
Price & Stock for HV5308PJ-B-G-M903
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
67X5173
|
Newark | 32-Channel, W/Hi-Volt Cmos Outputs, 80V 44 Plcc 16.6X16.6X4.4Mm T/R Rohs Compliant: Yes |Microchip HV5308PJ-B-G-M903 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$5.5700 | Buy Now |
|
DISTI #
HV5308PJ-B-G-M903CT-ND
|
DigiKey | IC 32BIT SRL CMOS 80V 44PLCC Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
472 In Stock |
|
$5.7375 / $7.1300 | Buy Now |
|
DISTI #
HV5308PJ-B-G-M903
|
Avnet Americas | Shift Register, HV5308, Serial to Parallel, 1 Element, 32 -Bit, 44 Pins, PLCC - Tape and Reel (Alt: HV5308PJ-B-G-M903) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$5.2326 / $6.9874 | Buy Now |
|
DISTI #
689-HV5308PJ-B-GM903
|
Mouser Electronics | Serial to Parallel Logic Converters 32-CHANNEL CONVERTER RoHS: Compliant | 0 |
|
$5.7300 | Order Now |
|
DISTI #
HV5308PJ-B-G-M903
|
Microchip Technology Inc | 32-CHANNEL, W/HI-VOLT CMOS OUTPUTS, 80V, PLCC, Projected EOL: 2034-10-14 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Reel |
0 Alternates Available |
|
$5.1600 / $7.1300 | Buy Now |
|
DISTI #
70483991
|
RS | 32-CHANNEL, W/HI-VOLT CMOS OUTPUTS, 80V44 PLCC T/R Min Qty: 500 Package Multiple: 1 Lead time: 7 Weeks, 0 Days Container: Bulk | 0 |
|
$9.9500 / $11.7000 | RFQ |
|
|
Onlinecomponents.com | RoHS: Compliant | 1000 Factory Stock |
|
$5.7000 / $11.9300 | Buy Now |
|
|
NAC | 32-CHANNEL, W/HI-VOLT CMOS OUTPUTS, 80V - Package: 44 PLCC 16.6x16.6x4.4mm T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 | 0 |
|
$5.6000 / $6.7500 | Buy Now |
|
DISTI #
HV5308PJ-B-G-M903
|
Avnet Silica | Shift Register HV5308 Serial to Parallel 1 Element 32 Bit 44 Pins PLCC (Alt: HV5308PJ-B-G-M903) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 8 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Master Electronics | RoHS: Compliant | 1000 Factory Stock |
|
$5.7000 / $11.9300 | Buy Now |
Part Details for HV5308PJ-B-G-M903
HV5308PJ-B-G-M903 CAD Models
HV5308PJ-B-G-M903 Part Data Attributes
|
|
HV5308PJ-B-G-M903
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
HV5308PJ-B-G-M903
Microchip Technology Inc
IC 32BIT SRL CMOS 80V 44PLCC
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | LCC-44 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Data Input Mode | SERIAL | |
| Interface IC Type | AC PLASMA DISPLAY DRIVER | |
| JESD-30 Code | S-PQCC-J44 | |
| JESD-609 Code | e3 | |
| Length | 16.5862 mm | |
| Multiplexed Display Capability | NO | |
| Number of Functions | 1 | |
| Number of Segments | 32 | |
| Number of Terminals | 44 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QCCJ | |
| Package Equivalence Code | LDCC44,.7SQ | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER | |
| Seated Height-Max | 4.572 mm | |
| Supply Current-Max | 15 mA | |
| Supply Voltage-Max | 13.2 V | |
| Supply Voltage-Min | 10.8 V | |
| Supply Voltage-Nom | 12 V | |
| Supply Voltage1-Max | 80 V | |
| Supply Voltage1-Min | 8 V | |
| Supply Voltage1-Nom | 60 V | |
| Surface Mount | YES | |
| Technology | HVCMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | J BEND | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | QUAD | |
| Width | 16.5862 mm | |
| fmax-Min | 8 MHz |
Alternate Parts for HV5308PJ-B-G-M903
This table gives cross-reference parts and alternative options found for HV5308PJ-B-G-M903. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of HV5308PJ-B-G-M903, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| HV5308PJ-B-G | Microchip Technology Inc | $5.7658 | AC PLASMA DISPLAY DRIVER, PQCC44 | HV5308PJ-B-G-M903 vs HV5308PJ-B-G |
HV5308PJ-B-G-M903 Frequently Asked Questions (FAQ)
-
Microchip provides a recommended PCB layout and thermal management guide in their application note AN2015.01, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal performance and thermal dissipation.
-
The HV5308PJ-B-G-M903 has built-in OVP and UVP features, but they need to be enabled and configured through the device's registers. Refer to the datasheet and application notes for specific register settings and implementation guidelines.
-
The maximum allowed voltage on the VDD pin is 5.5V. To ensure it's within the recommended range, use a voltage regulator or a voltage limiter circuit to regulate the input voltage and prevent overvoltage conditions.
-
Use a logic analyzer or an oscilloscope to monitor the device's output signals and voltage levels. Check the device's registers and configuration settings to ensure they are correct. Refer to the datasheet and application notes for troubleshooting guidelines and common issues.
-
The recommended power-up sequence is to apply power to the VDD pin first, followed by the input voltage (VIN). During power-down, remove the input voltage (VIN) first, followed by the VDD pin. This sequence helps prevent voltage spikes and ensures proper device operation.
