HTSW-120-07-L-D by: Samtec Inc

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, LEAD FREE

Part Details for HTSW-120-07-L-D by Samtec Inc

Results Overview of HTSW-120-07-L-D by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Healthcare

HTSW-120-07-L-D Information

HTSW-120-07-L-D by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for HTSW-120-07-L-D

Part # Distributor Description Stock Price Buy
DISTI # 71P5403
Newark Header, 2.54Mm, Though Hole Vertical, 40 Position, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:40Contacts, Contact Termination Type:Through Hole, Product Range:Htsw Series Rohs Compliant: Yes |Samtec HTSW-120-07-L-D RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 949
  • 1 $3.2900
  • 10 $3.1400
  • 100 $2.6400
  • 500 $2.2300
  • 1,000 $1.8900
  • 2,500 $1.7400
  • 5,000 $1.7100
$1.7100 / $3.2900 Buy Now
DISTI # HTSW-120-07-L-D-ND
DigiKey CONN HEADER VERT 40POS 2.54MM Min Qty: 1 Lead time: 5 Weeks Container: Bag 29
In Stock
  • 1 $3.6100
  • 25 $3.2600
  • 50 $3.0300
  • 100 $2.8900
  • 500 $2.2000
  • 1,000 $1.9700
  • 2,500 $1.7487
$1.7487 / $3.6100 Buy Now
DISTI # HTSW-120-07-L-D
Avnet Americas Conn Unshrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole - Bulk (Alt: HTSW-120-07-L-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Bulk 949 Factory Stock
  • 1 $2.4010
  • 10 $2.3887
  • 30 $2.0273
  • 50 $2.0168
  • 100 $2.0064
$2.0064 / $2.4010 Buy Now
DISTI # 200-HTSW12007LD
Mouser Electronics Headers & Wire Housings High Temperature PCB Header Strips RoHS: Compliant 155
  • 1 $3.0900
  • 50 $3.0300
  • 100 $2.7000
  • 500 $2.0200
  • 1,000 $1.7400
  • 2,500 $1.5300
  • 5,000 $1.4500
$1.4500 / $3.0900 Buy Now
Onlinecomponents.com .100" High-Temp Terminal Strip RoHS: Compliant 0
  • 10 $2.8500
  • 100 $2.3100
  • 250 $2.2100
  • 500 $1.8300
  • 1,000 $1.4800
  • 2,500 $1.2700
  • 5,000 $1.0400
  • 7,500 $1.0100
$1.0100 / $2.8500 Buy Now
DISTI # 85092916
Verical Conn Unshrouded Header HDR 40 POS 2.54mm Solder ST Top Entry Thru-Hole RoHS: Compliant Min Qty: 3 Package Multiple: 1 Americas - 949
  • 3 $2.4500
$2.4500 Buy Now
DISTI # 5cd8f4a2cd7c1c4c3846f701
Samtec High Temperature PCB Header Strips, 0.100" pitch RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk 949
  • 1 $2.4500
  • 25 $2.3600
  • 50 $2.2500
  • 100 $2.0900
  • 500 $1.7300
  • 1,000 $1.4400
  • 2,500 $1.2000
  • 5,000 $0.9800
$0.9800 / $2.4500 Buy Now
DISTI # 000000000000122543
Sager Headers & Wire Housings High Temperature PCB Header Strips, 0.100 pitch Min Qty: 1 949
  • 1 $2.4500
  • 25 $2.3600
  • 50 $2.2500
  • 100 $2.0900
  • 500 $1.7300
  • 1,000 $1.4400
$1.4400 / $2.4500 Buy Now
DISTI # HTSW-120-07-L-D
Avnet Abacus Pin Header Vertical BoardtoBoard 254 mm 2 Rows 40 Contacts Through Hole HTSW Series (Alt: HTSW-120-07-L-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics .100" High-Temp Terminal Strip RoHS: Compliant 0
  • 10 $2.8500
  • 100 $2.3100
  • 250 $2.2100
  • 500 $1.8300
  • 1,000 $1.4800
  • 2,500 $1.2700
  • 5,000 $1.0400
  • 7,500 $1.0100
$1.0100 / $2.8500 Buy Now

Part Details for HTSW-120-07-L-D

HTSW-120-07-L-D CAD Models

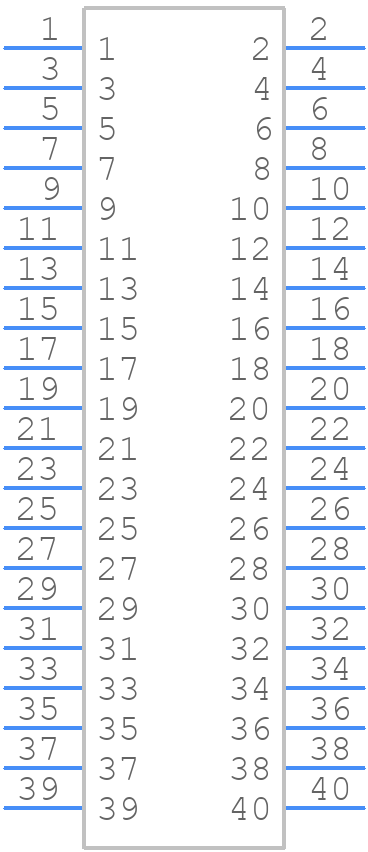

  • Part Symbol

    Part Symbol

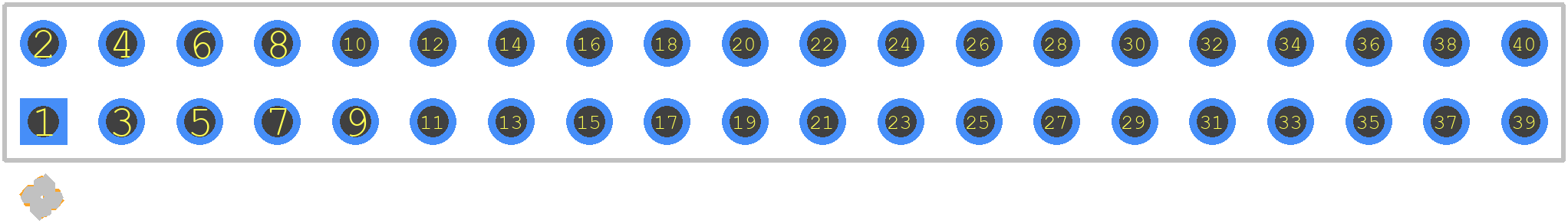

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

HTSW-120-07-L-D Part Data Attributes

Parametric Data
HTSW-120-07-L-D Samtec Inc
Buy Now Datasheet
Compare Parts:
HTSW-120-07-L-D Samtec Inc Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, LEAD FREE
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Package Description LEAD FREE
Reach Compliance Code compliant
Factory Lead Time 1 Week
Samacsys Manufacturer SAMTEC
Additional Feature E.L.P.
Body Breadth 0.198 inch
Body Depth 0.1 inch
Body Length 2 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD (10) OVER NICKEL (50)
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Rated Current (Signal) 6.3 A
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 40

Alternate Parts for HTSW-120-07-L-D

This table gives cross-reference parts and alternative options found for HTSW-120-07-L-D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of HTSW-120-07-L-D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
HTSW-120-07-T-D Samtec Inc $1.7710 Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, LEAD FREE HTSW-120-07-L-D vs HTSW-120-07-T-D
HTSW-120-27-F-D Samtec Inc $3.4345 Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, LEAD FREE HTSW-120-07-L-D vs HTSW-120-27-F-D
TSW-120-11-G-D Samtec Inc $3.7932 Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT HTSW-120-07-L-D vs TSW-120-11-G-D
TSW-120-12-S-D Samtec Inc $5.4118 Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT HTSW-120-07-L-D vs TSW-120-12-S-D
TSHS-120-D-08-A-H-LF Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle HTSW-120-07-L-D vs TSHS-120-D-08-A-H-LF
TSHS-120-D-32-A-T Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Receptacle HTSW-120-07-L-D vs TSHS-120-D-32-A-T
TSHS-120-D-14-A-GT-LF Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle HTSW-120-07-L-D vs TSHS-120-D-14-A-GT-LF
PH2-230/300-409 On-Shore Technology Inc Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, HTSW-120-07-L-D vs PH2-230/300-409
TSHS-120-D-28-A-T-LF Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle HTSW-120-07-L-D vs TSHS-120-D-28-A-T-LF
TSHS-120-D-36-A-G-LF Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle HTSW-120-07-L-D vs TSHS-120-D-36-A-G-LF
Part Number Manufacturer Composite Price Description Compare
TSW-120-26-F-D Samtec Inc $3.2486 Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT HTSW-120-07-L-D vs TSW-120-26-F-D
TSW-120-09-T-D-LC Samtec Inc $3.4532 Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, HTSW-120-07-L-D vs TSW-120-09-T-D-LC
TSW-120-27-F-D Samtec Inc $3.8493 Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT HTSW-120-07-L-D vs TSW-120-27-F-D
CH220F2G-E2D-BA Teka Interconnection Systems Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle HTSW-120-07-L-D vs CH220F2G-E2D-BA
TSHS-120-D-24-A-T-LF Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle HTSW-120-07-L-D vs TSHS-120-D-24-A-T-LF
TSHS-120-D-26-A-GT Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Receptacle HTSW-120-07-L-D vs TSHS-120-D-26-A-GT
CH220E2G-EPD-AA Teka Interconnection Systems Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle HTSW-120-07-L-D vs CH220E2G-EPD-AA
TSHS-120-D-34-A-H-LF Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle HTSW-120-07-L-D vs TSHS-120-D-34-A-H-LF
TSHS-120-D-36-A-G Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Receptacle HTSW-120-07-L-D vs TSHS-120-D-36-A-G
TSHS-120-D-36-A-GT Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Receptacle HTSW-120-07-L-D vs TSHS-120-D-36-A-GT

HTSW-120-07-L-D Frequently Asked Questions (FAQ)

  • The recommended torque for the screws on the HTSW-120-07-L-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.

  • Yes, the HTSW-120-07-L-D connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can operate in environments with vibrations up to 15 Hz to 2000 Hz, 10 G peak acceleration.

  • The maximum operating temperature of the HTSW-120-07-L-D connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the current carrying capacity of the connector at higher temperatures to ensure reliable operation.

  • Yes, the HTSW-120-07-L-D connector is compatible with lead-free soldering processes. Samtec recommends using a soldering temperature of 260°C (500°F) maximum to ensure reliable assembly.

  • The mating cycle life of the HTSW-120-07-L-D connector is 500 cycles minimum according to Samtec's testing and validation procedures.
