HTST-105-02-L-D by: Samtec Inc

Board Connector, 5 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Natural Insulator, ROHS COMPLIANT

Part Details for HTST-105-02-L-D by Samtec Inc

Results Overview of HTST-105-02-L-D by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Space Technology Industrial Automation Smart Cities Aerospace and Defense Energy and Power Systems Transportation and Logistics Agriculture Technology Renewable Energy Electronic Manufacturing Automotive

HTST-105-02-L-D Information

HTST-105-02-L-D by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for HTST-105-02-L-D

Part # Distributor Description Stock Price Buy
DISTI # 84T4795
Newark Header, 2.54Mm, Vertical Though Hole, 10 Position, Connector Systems:Wire-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:10Contacts, Contact Termination Type:Through Hole, Product Range:Htst Series Rohs Compliant: Yes |Samtec HTST-105-02-L-D RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 6336
  • 1 $2.6400
  • 10 $2.5200
  • 100 $2.1100
  • 500 $1.7900
  • 1,000 $1.5200
  • 2,500 $1.4000
  • 5,000 $1.3700
$1.3700 / $2.6400 Buy Now
DISTI # 3937-HTST-105-02-L-D-ND
DigiKey CONN HEADER VERT 10POS 2.54MM Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT 4679
In Stock
  • 1 $15.4400
$15.4400 Buy Now
DISTI # SAM11358-ND
DigiKey CONN HEADER VERT 10POS 2.54MM Min Qty: 1 Lead time: 6 Weeks Container: Bulk 17
In Stock
  • 1 $2.6300
  • 10 $2.2350
  • 100 $1.8990
  • 500 $1.6951
  • 1,000 $1.6142
  • 5,000 $1.5600
$1.5600 / $2.6300 Buy Now
DISTI # HTST-105-02-L-D
Avnet Americas Pin Header, Wire-to-Board, 2.54 mm, 2 Rows, 10 Contacts, Through Hole, HTST Series - Bulk (Alt: HTST-105-02-L-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Bulk 5909 Factory Stock
  • 1 $2.5774
  • 10 $2.1791
  • 30 $1.8420
  • 50 $1.8325
  • 100 $1.8230
$1.8230 / $2.5774 Buy Now
DISTI # 200-HTST10502LD
Mouser Electronics Headers & Wire Housings .100" High-Temp Shrouded Terminal Strip RoHS: Compliant 167
  • 1 $2.8300
  • 50 $2.3000
  • 100 $1.9600
  • 500 $1.7400
  • 1,000 $1.4600
  • 2,000 $1.3900
  • 5,000 $1.1800
$1.1800 / $2.8300 Buy Now
Onlinecomponents.com .100" High-Temp Shrouded Terminal Strip, Cable Mate RoHS: Compliant 4 In Stock
5366 Factory Stock
  • 1 $2.6180
  • 10 $2.3800
  • 100 $1.9580
  • 250 $1.8760
  • 500 $1.8260
  • 1,000 $1.3460
  • 2,500 $1.2400
  • 5,000 $0.9620
$0.9620 / $2.6180 Buy Now
DISTI # 85033848
Verical Conn Shrouded Header (4 Sides) HDR 10 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk RoHS: Compliant Min Qty: 4 Package Multiple: 1 Americas - 5380
  • 4 $2.8300
$2.8300 Buy Now
DISTI # 5cd8f3dfcd7c1c4c384610e6
Samtec .100" High-Temp Shrouded Terminal Strip, Cable Mate RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk 5374
  • 1 $2.8300
  • 50 $2.3000
  • 100 $1.9600
  • 500 $1.7400
  • 1,000 $1.3400
  • 2,000 $1.2100
  • 5,000 $0.9400
  • 10,000 $0.6800
$0.6800 / $2.8300 Buy Now
DISTI # 000000000002187672
Sager Headers & Wire Housings .100 High-Temp Shrouded Terminal Strip, Cable Mate Min Qty: 1 5909
  • 1 $2.8300
  • 50 $2.3000
  • 100 $1.9600
  • 500 $1.7400
  • 1,000 $1.3400
  • 2,000 $1.2100
$1.2100 / $2.8300 Buy Now
DISTI # HTST-105-02-L-D
Avnet Abacus Pin Header WiretoBoard 254 mm 2 Rows 10 Contacts Through Hole HTST Series (Alt: HTST-105-02-L-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics .100" High-Temp Shrouded Terminal Strip, Cable Mate RoHS: Compliant 4 In Stock
5366 Factory Stock
  • 1 $2.6180
  • 10 $2.3800
  • 100 $1.9580
  • 250 $1.8760
  • 500 $1.8260
  • 1,000 $1.3460
  • 2,500 $1.2400
  • 5,000 $0.9620
$0.9620 / $2.6180 Buy Now

Part Details for HTST-105-02-L-D

HTST-105-02-L-D CAD Models

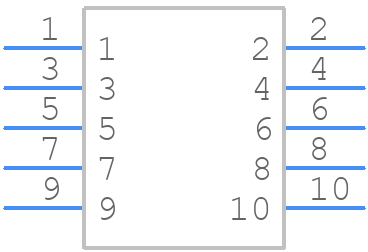

  • Part Symbol

    Part Symbol

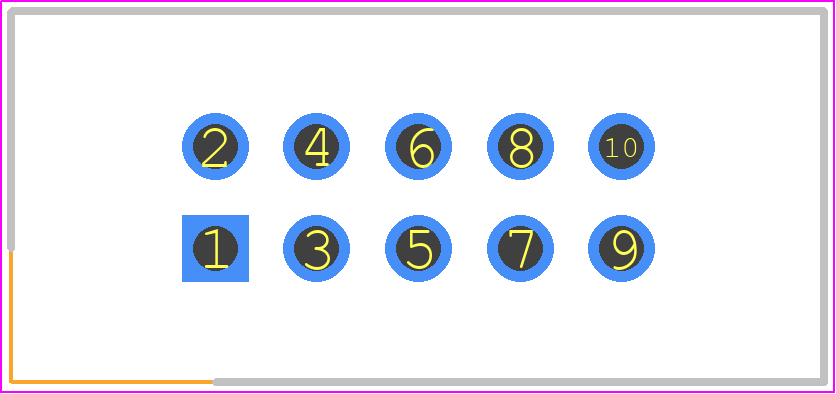

  • Footprint

    footprint

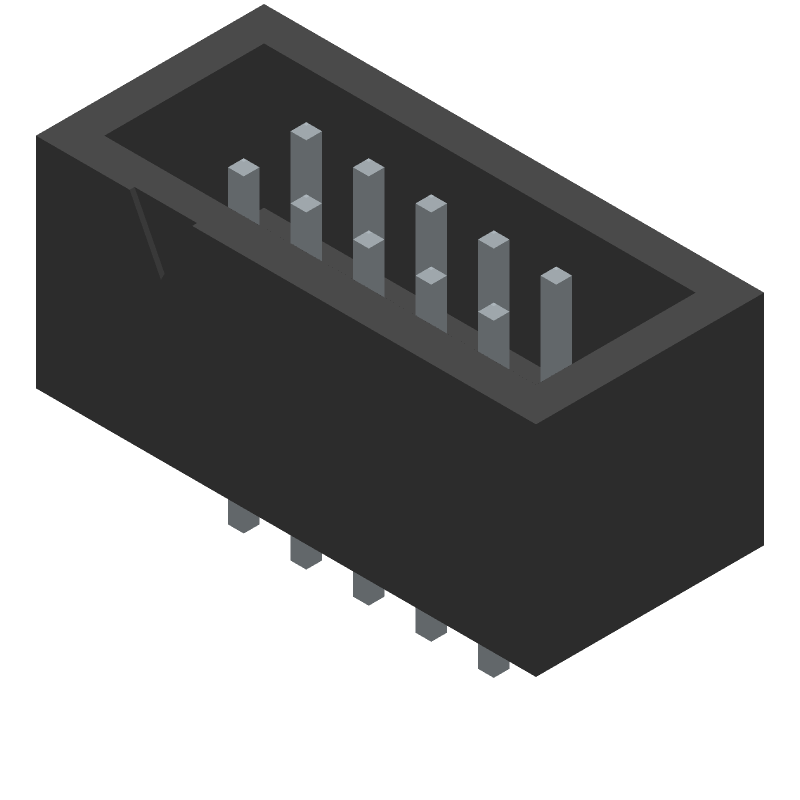

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

HTST-105-02-L-D Part Data Attributes

Parametric Data
HTST-105-02-L-D Samtec Inc
Buy Now Datasheet
Compare Parts:
HTST-105-02-L-D Samtec Inc Board Connector, 5 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Natural Insulator, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
Factory Lead Time 1 Week
Samacsys Manufacturer SAMTEC
Additional Feature SHROUDED
Body Breadth 0.365 inch
Body Depth 0.35 inch
Body Length 0.8 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD (10) OVER NICKEL (50)
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulation Resistance 5000000000 Ω
Insulator Color NATURAL
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Plating Thickness 10u inch
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 3.4 A
Reference Standard UL
Terminal Length 0.165 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 10
UL Flammability Code 94V-0
