HTST-105-01-T-DV-P-TR by: Samtec Inc

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,

Part Details for HTST-105-01-T-DV-P-TR by Samtec Inc

Results Overview of HTST-105-01-T-DV-P-TR by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Space Technology Industrial Automation Smart Cities Aerospace and Defense Energy and Power Systems Transportation and Logistics Agriculture Technology Renewable Energy Electronic Manufacturing Automotive

HTST-105-01-T-DV-P-TR Information

HTST-105-01-T-DV-P-TR by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for HTST-105-01-T-DV-P-TR

Part # Distributor Description Stock Price Buy
DISTI # 95AH5661
Newark ".100" High-Temp Shrouded Terminal Strip |Samtec HTST-105-01-T-DV-P-TR RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 138
  • 1 $1.6200
  • 500 $1.4200
  • 1,000 $1.3300
$1.3300 / $1.6200 Buy Now
DISTI # SAM14027CT-ND
DigiKey CONN HEADER SMD 10POS 2.54MM Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 3429
In Stock
  • 1 $2.8300
  • 10 $2.4060
  • 150 $1.0445
  • 300 $0.9946
  • 450 $0.9665
  • 750 $0.9323
  • 1,050 $0.9104
  • 1,500 $0.8878
  • 3,750 $0.8370
$0.8370 / $2.8300 Buy Now
DISTI # HTST-105-01-T-DV-P-TR
Avnet Americas Conn Shrouded HDR 10 POS 2.54mm Solder ST SMD T/R - Tape and Reel (Alt: HTST-105-01-T-DV-P-TR) RoHS: Compliant Min Qty: 150 Package Multiple: 150 Lead time: 1 Weeks, 0 Days Container: Reel 238 Factory Stock
  • 150 $1.7026
  • 300 $1.6492
  • 600 $1.5996
  • 900 $1.5625
  • 1,200 $1.1956
$1.1956 / $1.7026 Buy Now
DISTI # 200-HTST10501TDVPTR
Mouser Electronics Headers & Wire Housings .100" High-Temp Shrouded Terminal Strip RoHS: Compliant 905
  • 1 $2.6500
  • 50 $2.1700
  • 100 $1.8300
  • 150 $1.8300
  • 900 $1.6300
  • 1,950 $1.3100
  • 4,950 $1.2000
$1.2000 / $2.6500 Buy Now
DISTI # V36:1790_08272922
Arrow Electronics Conn Shrouded Header (4 Sides) HDR 10 POS 2.54mm Solder ST Top Entry SMD T/R RoHS: Compliant Min Qty: 150 Package Multiple: 150 Lead time: 2 Weeks Americas - 450
  • 1 $2.6500
  • 50 $2.1600
  • 100 $1.8300
  • 500 $1.6300
  • 1,000 $1.4780
$1.4780 / $2.6500 Buy Now
Onlinecomponents.com .100" High-Temp Shrouded Terminal Strip, Cable Mate RoHS: Compliant 275 In Stock
60 Factory Stock
  • 10 $2.6720
  • 100 $1.8210
  • 250 $1.8030
  • 500 $1.6960
  • 1,000 $1.4340
  • 2,500 $1.2240
  • 5,000 $1.1710
  • 7,500 $1.1650
$1.1650 / $2.6720 Buy Now
DISTI # 87737103
Verical Conn Shrouded Header (4 Sides) HDR 10 POS 2.54mm Solder ST Top Entry SMD T/R RoHS: Compliant Min Qty: 150 Package Multiple: 150 Date Code: 2507 Americas - 450
  • 150 $1.4780
$1.4780 Buy Now
DISTI # 76455213
Verical Conn Shrouded Header (4 Sides) HDR 10 POS 2.54mm Solder ST Top Entry SMD T/R RoHS: Compliant Min Qty: 20 Package Multiple: 10 Date Code: 2350 Americas - 270
  • 20 $3.4710
  • 100 $2.3660
  • 250 $2.3400
  • 500 $2.2100
  • 1,000 $1.8590
$1.8590 / $3.4710 Buy Now
DISTI # 88748091
Verical Conn Shrouded Header (4 Sides) HDR 10 POS 2.54mm Solder ST Top Entry SMD T/R RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 2507 Americas - 60
  • 5 $2.6500
  • 50 $2.1600
  • 100 $1.8300
  • 500 $1.6300
  • 2,000 $1.2000
$1.2000 / $2.6500 Buy Now
Bristol Electronics   222
RFQ
DISTI # 5cd8f3aacd7c1c4c3845d13c
Samtec .100" High-Temp Shrouded Terminal Strip, Cable Mate RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tape & Reel 60
  • 1 $2.6500
  • 50 $2.1600
  • 100 $1.8300
  • 500 $1.6300
  • 1,000 $1.3100
  • 2,000 $1.2000
  • 5,000 $0.9800
  • 10,000 $0.7600
$0.7600 / $2.6500 Buy Now
Powell Electronics .100 High-Temp Shrouded Terminal Strip Min Qty: 1 157
  • 1 $2.6500
  • 50 $2.1600
  • 100 $1.8300
  • 500 $1.6300
  • 1,000 $1.3100
$1.3100 / $2.6500 Buy Now
DISTI # 000000000001315767
Sager Headers & Wire Housings .100 High-Temp Shrouded Terminal Strip, Cable Mate Min Qty: 1 60
  • 1 $2.6500
  • 50 $2.1600
  • 100 $1.8300
  • 500 $1.6300
  • 1,000 $1.3100
  • 2,000 $1.2000
$1.2000 / $2.6500 Buy Now
DISTI # HTST-105-01-T-DV-P-TR
Avnet Abacus Conn Shrouded HDR 10 POS 254mm Solder ST SMD TR (Alt: HTST-105-01-T-DV-P-TR) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # HTST-105-01-T-DV-P-TR
Avnet Abacus Conn Shrouded HDR 10 POS 254mm Solder ST SMD TR - Tape and Reel (Alt: HTST-105-01-T-DV-P-TR) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Master Electronics .100" High-Temp Shrouded Terminal Strip, Cable Mate RoHS: Compliant 275 In Stock
60 Factory Stock
  • 10 $2.6720
  • 100 $1.8210
  • 250 $1.8030
  • 500 $1.6960
  • 1,000 $1.4340
  • 2,500 $1.2240
  • 5,000 $1.1710
  • 7,500 $1.1650
$1.1650 / $2.6720 Buy Now

Part Details for HTST-105-01-T-DV-P-TR

HTST-105-01-T-DV-P-TR CAD Models

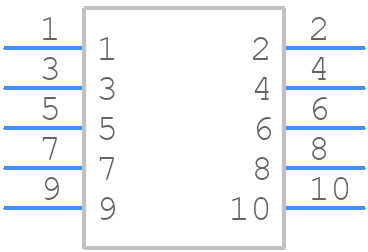

  • Part Symbol

    Part Symbol

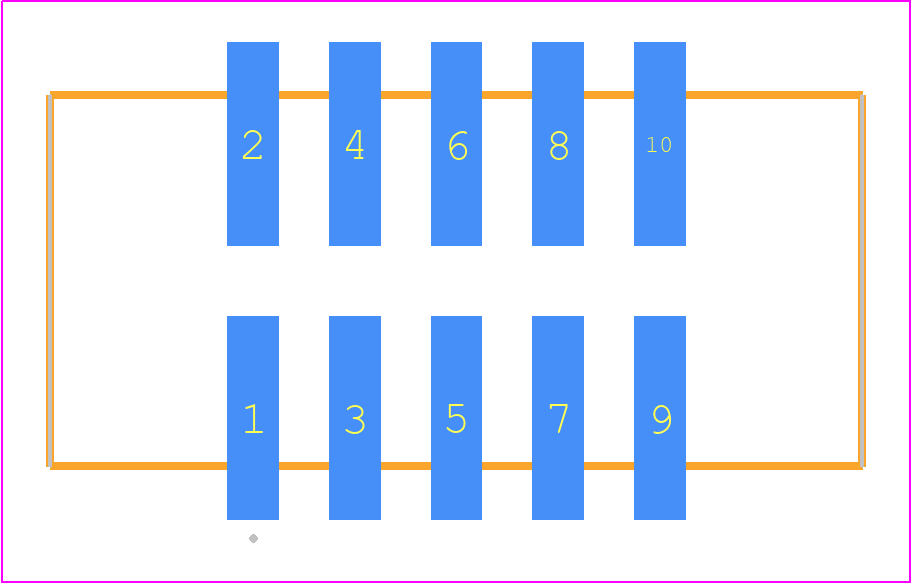

  • Footprint
