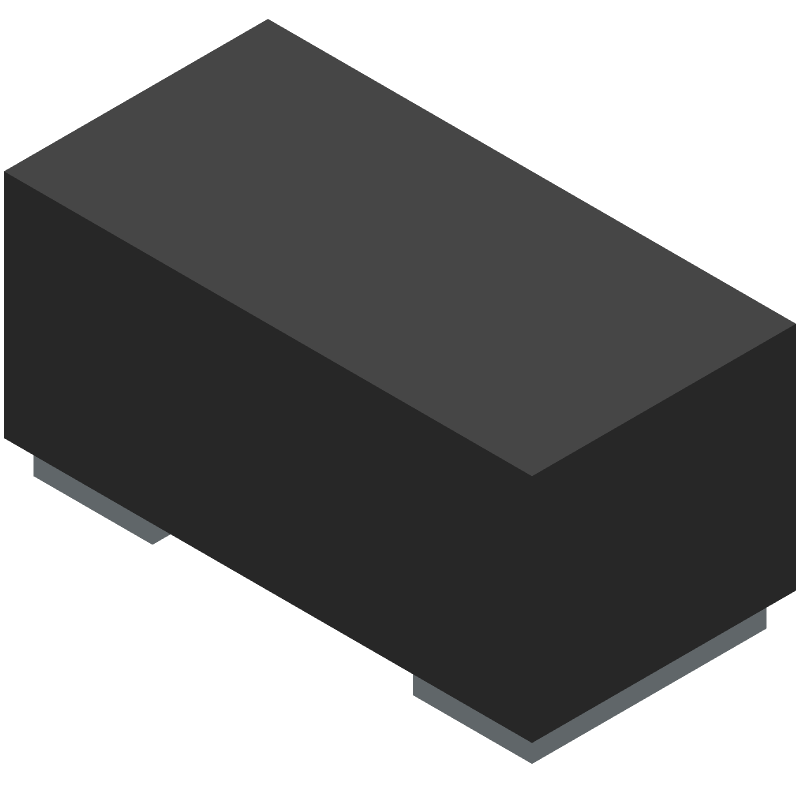

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HSMA-C191 by Avago Technologies
Results Overview of HSMA-C191 by Avago Technologies
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
HSMA-C191 Information
HSMA-C191 by Avago Technologies is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for HSMA-C191
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | Min Qty: 13 | 6243 |
|
$0.1078 / $0.4148 | Buy Now |
|
|
Bristol Electronics | Min Qty: 9 | 2495 |
|
$0.1200 / $0.6000 | Buy Now |
|
|
Quest Components | SINGLE COLOR LED, AMBER, 1 mm | 4846 |
|
$0.1615 / $0.9230 | Buy Now |
|
|
Quest Components | SINGLE COLOR LED, AMBER, 1 mm | 4846 |
|
$0.1438 / $0.5530 | Buy Now |
|
|
Quest Components | SINGLE COLOR LED, AMBER, 1 mm | 4723 |
|
$0.1750 / $1.0000 | Buy Now |
|
|
Quest Components | SINGLE COLOR LED, AMBER, 1 mm | 1996 |
|
$0.1600 / $0.8000 | Buy Now |
Part Details for HSMA-C191
HSMA-C191 CAD Models
HSMA-C191 Part Data Attributes
|
|
HSMA-C191
Avago Technologies
Buy Now
Datasheet
|
Compare Parts:
HSMA-C191
Avago Technologies
SINGLE COLOR LED, AMBER, 1mm, 1.60 X 0.80 MM, 0.60 MM HEIGHT, LEAD FREE PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AVAGO TECHNOLOGIES INC | |
| Package Description | 1.60 X 0.80 MM, 0.60 MM HEIGHT, LEAD FREE PACKAGE-2 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Avago Technologies | |
| Additional Feature | SUPPORTS INFRARED | |
| Color | AMBER | |
| Color@Wavelength | Amber | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.025 A | |
| Forward Voltage-Max | 2.4 V | |
| JESD-609 Code | e4 | |
| Lens Type | UNTINTED DIFFUSED | |
| Luminous Intensity-Nom | 90.0 mcd | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 0.6 mm | |
| Packing Method | TR, 7 INCH | |
| Peak Wavelength | 595 nm | |
| Reverse Voltage-Max | 5 V | |
| Shape | RECTANGULAR | |
| Size | 1 mm | |
| Surface Mount | YES | |
| Terminal Finish | GOLD OVER NICKEL | |
| Terminal Pitch | 1.5 mm | |
| Viewing Angle | 170 deg |
HSMA-C191 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for HSMA-C191 is -40°C to 85°C.
-
To configure the HSMA-C191 for optimal performance, follow the recommended settings in the datasheet, including setting the correct voltage supply, clock frequency, and output impedance.
-
The HSMA-C191 supports data transfer rates up to 6.4 Gbps.
-
To troubleshoot issues with the HSMA-C191, check the power supply, clock signal, and output impedance. Also, verify that the device is properly configured and that the input signals are within the recommended specifications.
-
Yes, the HSMA-C191 is designed to be compatible with other Broadcom devices, including switches, routers, and network processors.
