HSA5047KJ Information
HSA5047KJ by TE Connectivity is a Wire Wound Resistor.
Wire Wound Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for HSA5047KJ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
43AC3199
|
Newark | Resistor, Wirewound, 47K, 5%, 50W, Resistance:47Kohm, Product Range:Hs Series, Power Rating:50W, Resistance Tolerance:± 5%, Resistor Terminals:Solder Lug, Voltage Rating:1.25Kv, Resistor Element Material:Wirewound, Temperature Rohs Compliant: Yes |Cgs Te Connectivity HSA5047KJ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$2.7700 / $6.3400 | Buy Now |
|
DISTI #
A103855-ND
|
DigiKey | RES CHAS MNT 47K OHM 5% 50W Min Qty: 1 Lead time: 10 Weeks Container: Bulk |
97 In Stock |
|
$2.7974 / $7.6100 | Buy Now |
|
DISTI #
6-1625984-0
|
Avnet Americas | Resistor, 47 kOhm, ? 5%, 50 W, Wirewound, Power, Solder Lug - Boxed Product (Development Kits) (Alt: 6-1625984-0) RoHS: Compliant Min Qty: 200 Package Multiple: 100 Lead time: 12 Weeks, 0 Days Container: Box | 0 |
|
$2.6208 / $2.8616 | Buy Now |
|
DISTI #
279-HSA5047KJ
|
Mouser Electronics | Wirewound Resistors - Chassis Mount HSA50 47K 5% RoHS: Compliant | 86 |
|
$2.7900 / $6.2900 | Buy Now |
|
|
TE Connectivity | HSA50 47K 5% Resistor Type: Power Resistor Resistance Class: 1kΩ – 1MΩ Resistance Value: 47K Ω Power Rating: 50 W Element Type: Wire Wound Power Resistor 1kΩ – 1MΩ 47K Ω 50 W | Power Resistors: Aluminum Housed & Hsa | Part Number: HSA5047KJ | Internal Number: 6-1625984-0 | TE Connectivity RoHS: Compliant Min Qty: 1 | 97 |
|
$6.3300 / $7.5300 | Buy Now |
|
|
Onlinecomponents.com | HSA50 47K 5%<br/>Aluminium Housed Power Resistors<br/>Fixed Resistor RoHS: Compliant |
11 Partner Stock |
|
$2.7300 / $4.7410 | Buy Now |
|
|
Quest Components | RESISTOR, WIRE WOUND, 20W, 5%, 30PPM, 47000OHM, CHASSIS MOUNT | 9 |
|
$3.1500 / $6.3000 | Buy Now |
|
DISTI #
6-1625984-0
|
Avnet Abacus | Resistor 47 kOhm 5 50 W Wirewound Power Solder Lug (Alt: 6-1625984-0) RoHS: Compliant Min Qty: 200 Package Multiple: 100 Lead time: 16 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Master Electronics | HSA50 47K 5%<br/>Aluminium Housed Power Resistors<br/>Fixed Resistor RoHS: Compliant |
11 Partner Stock |
|
$2.7300 / $4.7410 | Buy Now |
Part Details for HSA5047KJ

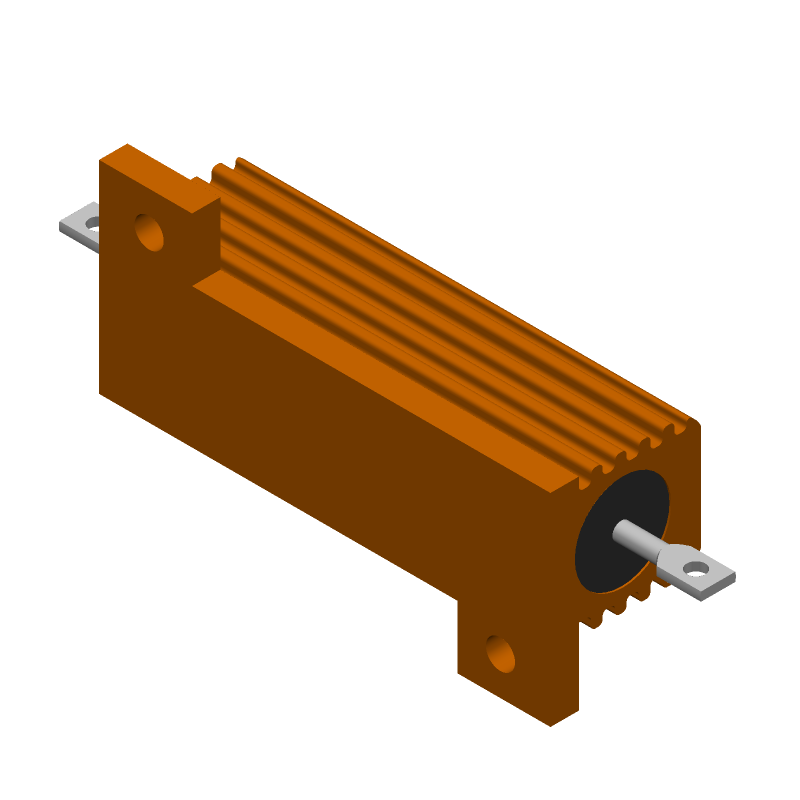

HSA5047KJ CAD Models
HSA5047KJ Part Data Attributes
|
|
HSA5047KJ
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
HSA5047KJ
TE Connectivity
RESISTOR, WIRE WOUND, 20W, 5%, 30ppm, 47000ohm, CHASSIS MOUNT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.29.00.00 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | RATED AC VOLTAGE (V): 1250, FREE AIR POWER: 20W | |
| Construction | Rectangular | |
| Mounting Feature | CHASSIS MOUNT | |
| Number of Terminals | 2 | |
| Package Height | 17 mm | |
| Package Length | 51 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | Chassis Mount | |
| Package Width | 30 mm | |
| Packing Method | BULK, TRAY | |
| Physical Dimension | 72.5mm x 30mm x 17mm | |
| Rated Power Dissipation (P) | 50 W | |
| Rated Temperature | 25 °C | |
| Resistance | 47000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | 30 ppm/°C | |
| Terminal Shape | LUG | |
| Tolerance | 5% | |
| Working Voltage | 1250 V |
