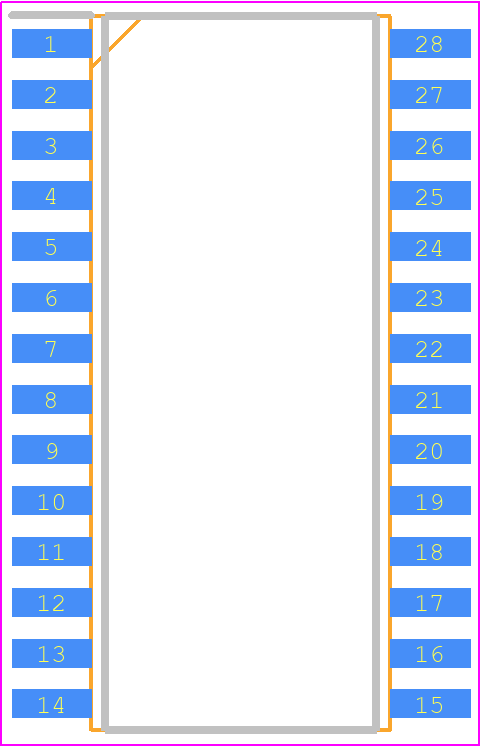

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HSA2-040SIA/A2S23 by Microchip Technology Inc
Results Overview of HSA2-040SIA/A2S23 by Microchip Technology Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
HSA2-040SIA/A2S23 Information
HSA2-040SIA/A2S23 by Microchip Technology Inc is an Other uP/uC/Peripheral IC.
Other uPs/uCs/Peripheral ICs are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for HSA2-040SIA/A2S23
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
HSA2-040SIA/A2S23
|
EBV Elektronik | Sensor Controller Resistive 28Pin SOIC Tube (Alt: HSA2-040SIA/A2S23) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for HSA2-040SIA/A2S23
HSA2-040SIA/A2S23 CAD Models
HSA2-040SIA/A2S23 Part Data Attributes
|
|
HSA2-040SIA/A2S23
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
HSA2-040SIA/A2S23
Microchip Technology Inc
IC,TOUCH SENSOR/CONTROLLER,SOP,28PIN,PLASTIC
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | SOIC | |
| Package Description | 0.300 INCH, ROHS COMPLIANT, PLASTIC, MS-013, SOIC-28 | |
| Pin Count | 28 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 5 Weeks | |
| Samacsys Manufacturer | Microchip |
