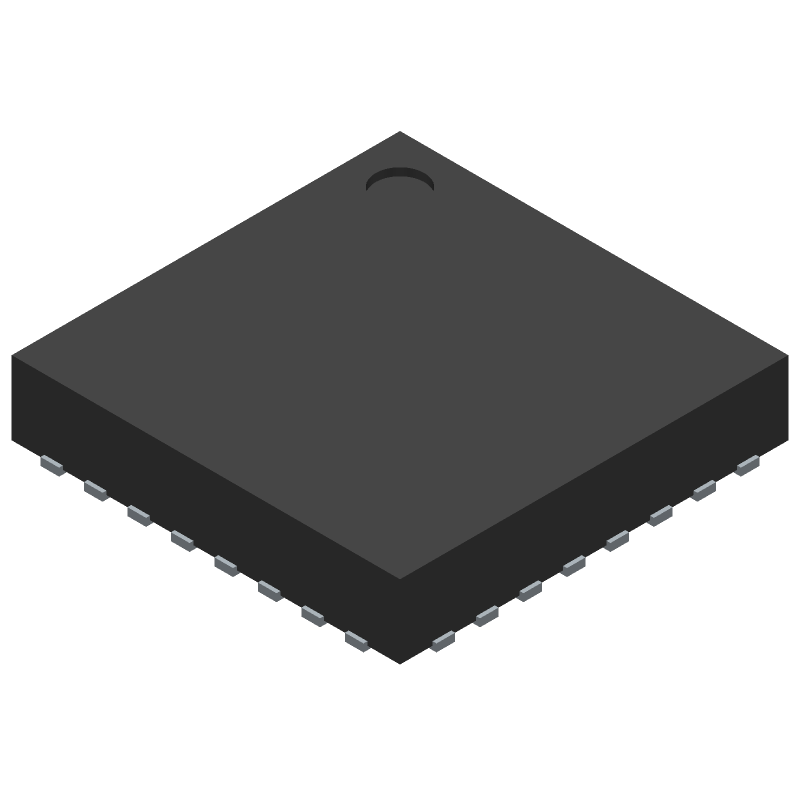

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HMC510LP5E by Analog Devices Inc
Results Overview of HMC510LP5E by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Telecommunications
HMC510LP5E Information
HMC510LP5E by Analog Devices Inc is a Voltage Controlled Oscillator.
Voltage Controlled Oscillators are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for HMC510LP5E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
80AK4795
|
Newark | Vco, W/Half Freq O/P, 8.45-9.55Ghz, Qfn Rohs Compliant: Yes |Analog Devices HMC510LP5E RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 12 |
|
$40.0300 / $50.9600 | Buy Now |
|
DISTI #
505-HMC510LP5E-ND
|
DigiKey | VCO 4.5GHZ/9GHZ 2-13V 5X5MM Min Qty: 1 Lead time: 20 Weeks Container: Strip |
79 In Stock |
|
$35.7532 / $48.3800 | Buy Now |
|
DISTI #
584-HMC510LP5E
|
Mouser Electronics | VCO Oscillators CO w/ Fo/2 & Div/4, 8.45 - 9.55 GHz RoHS: Compliant | 7 |
|
$35.7600 / $48.3800 | Buy Now |
|
DISTI #
A01:0375_06448769
|
Arrow Electronics | Oscillator VCO 4225MHz to 4775MHz/ 8450MHz to 9550MHz 5V 32-Pin QFN EP SMD T/R RoHS: Compliant Min Qty: 19 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2451 | Asia - 695 |
|
$34.7800 / $36.7900 | Buy Now |
|
|
Analog Devices Inc | CO w/ Fo/2 & Div/4, 8.45 - 9. Package Multiple: 1 | 16 |
|
$21.2300 / $48.3800 | Buy Now |
|
DISTI #
60280356
|
Verical | Oscillator VCO 4225MHz to 4775MHz/ 8450MHz to 9550MHz 5V 32-Pin QFN EP SMD T/R RoHS: Compliant Min Qty: 19 Package Multiple: 1 | Americas - 695 |
|
$34.7800 / $36.7900 | Buy Now |
|
DISTI #
HMC510LP5E
|
Richardson RFPD | OSCILLATOR VCO RoHS: Compliant Min Qty: 1 | 6 |
|
$37.0300 / $38.1200 | Buy Now |
|
|
Vyrian | Oscillators | 31 |
|
RFQ | |
|
|
Win Source Electronics | MMIC VCO w/ HALF FREQUENCY OUTPUT & DIVIDE-BY-4, 8.45 - 9.55 GHz | VCO 4.5GHZ/9GHZ 2-13V 5X5MM | 1600 |
|
$26.0328 / $39.0491 | Buy Now |
Part Details for HMC510LP5E
HMC510LP5E CAD Models
HMC510LP5E Part Data Attributes
|
|
HMC510LP5E
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
HMC510LP5E
Analog Devices Inc
VCO SMT with Fo/2 & Divide-by-4, 8.45 - 9.55 GHz
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | ROHS COMPLIANT, PLASTIC, LEADLESS, QFN-32 | |
| Pin Count | 32 | |
| Manufacturer Package Code | HCP-32-1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Control Voltage-Max | 13 V | |
| Control Voltage-Min | 2 V | |
| JESD-609 Code | e3 | |
| Modulation Sensitivity | 20 MHz/V | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 32 | |
| Offset Frequency | 100 kHz | |
| Operating Frequency-Max | 9550 MHz | |
| Operating Frequency-Min | 8450 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | VOLTAGE CONTROLLED OSCILLATOR | |
| Output Power | 10 dBm | |
| Phase Noise | -116 dBc/Hz | |
| Physical Dimension | 5.1mm x 5.1mm x 1.0mm | |
| Supply Current-Max | 360 mA | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) |
HMC510LP5E Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink is recommended. Ensure good thermal conductivity and minimal thermal resistance to maintain junction temperature below 125°C.
-
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider using a load-pull analysis to determine the optimal impedance for maximum gain and efficiency.
-
Follow the recommended biasing and tuning procedures outlined in the datasheet and application notes. Ensure proper voltage sequencing, and use a slow ramp-up and ramp-down of the bias voltage to prevent damage.
-
Implement a thermal management system to keep the junction temperature below 125°C. Use a current sense resistor and a voltage regulator to limit the current and prevent overheating.
-
Handle the device with ESD-protective equipment and follow proper handling procedures to prevent damage. Use ESD-protective packaging and storage to prevent damage during transportation and storage.
