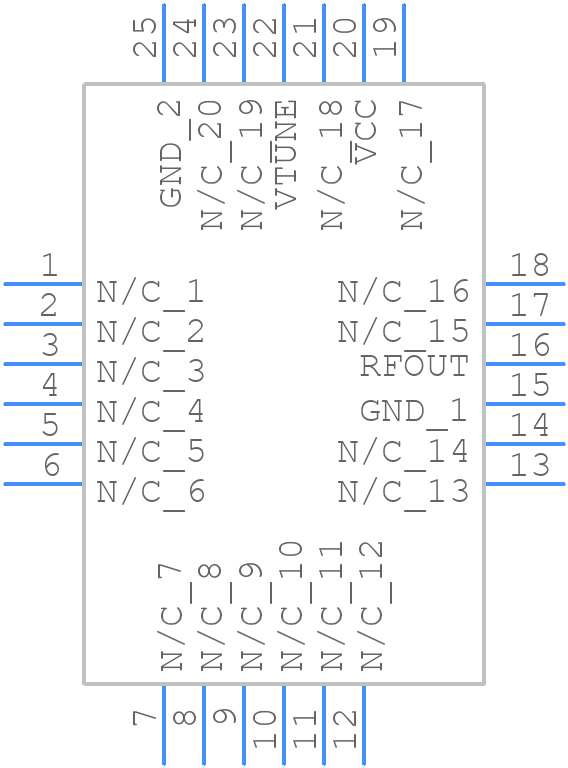

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HMC429LP4E by Analog Devices Inc
Results Overview of HMC429LP4E by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Aerospace and Defense
HMC429LP4E Information
HMC429LP4E by Analog Devices Inc is an RF/Microwave Amplifier.
RF/Microwave Amplifiers are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for HMC429LP4E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4032594
|
Farnell | VCO, W/BUFFER AMP, 4.45-5.0GHZ, QFN24 RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each | 38 |
|
$16.6672 / $18.8494 | Buy Now |
|
DISTI #
1127-1384-ND
|
DigiKey | IC MMIC VCO BUFFER AMP 24-QFN Min Qty: 1 Lead time: 20 Weeks Container: Strip |
636 In Stock |
|
$16.7544 / $23.7500 | Buy Now |
|
DISTI #
584-HMC429LP4E
|
Mouser Electronics | VCO Oscillators VCO SMT w/Buffer amp, 4.45 - 5.0 GHz RoHS: Compliant | 405 |
|
$15.8200 / $22.2200 | Buy Now |
|
|
Analog Devices Inc | VCO SMT w/Buffer amp, 4.45 - 5 Package Multiple: 1 | 417 |
|
$11.6100 / $23.7500 | Buy Now |
|
DISTI #
87827013
|
Verical | Oscillator VCO 4450MHz to 5000MHz 3V 24-Pin LFCSP EP SMD T/R RoHS: Compliant Min Qty: 43 Package Multiple: 43 | Americas - 258 |
|
$14.6038 | Buy Now |
|
DISTI #
HMC429LP4E
|
Richardson RFPD | OSCILLATOR VCO RoHS: Compliant Min Qty: 1 | 36 |
|
$16.2200 / $17.4100 | Buy Now |
|
|
Vyrian | RF & Microwave | 207 |
|
RFQ |
Part Details for HMC429LP4E
HMC429LP4E CAD Models
HMC429LP4E Part Data Attributes
|
|
HMC429LP4E
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
HMC429LP4E
Analog Devices Inc
VCO SMT w/Buffer Amplifier, 4.45 - 5.0 GHz
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | QFN-24 | |
| Pin Count | 24 | |
| Manufacturer Package Code | HCP-24-2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| JESD-609 Code | e3 | |
| Terminal Finish | Matte Tin (Sn) |
