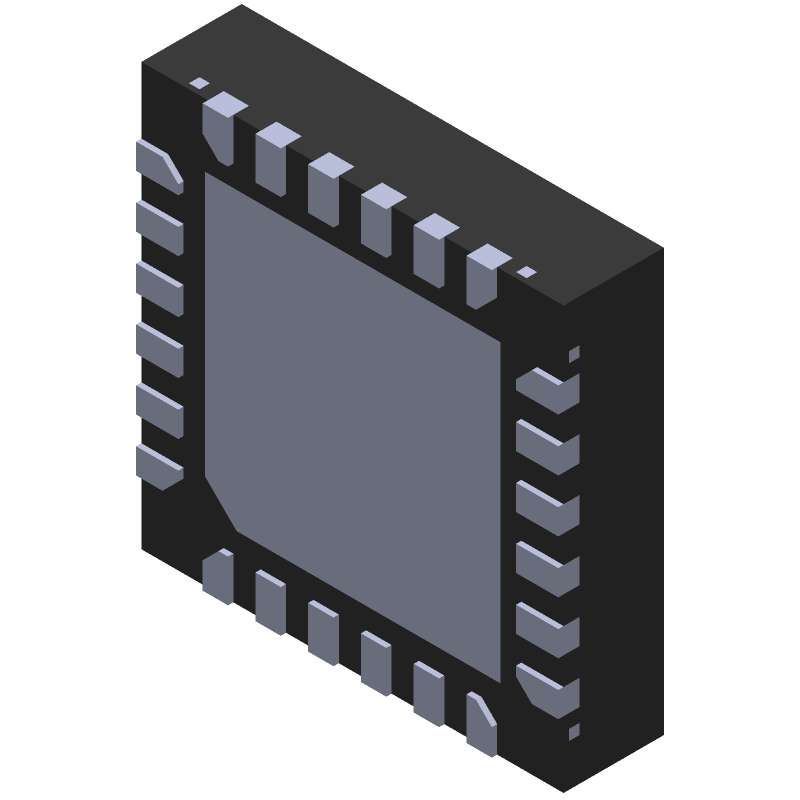

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HMC1013LP4E by Analog Devices Inc
Results Overview of HMC1013LP4E by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for HMC1013LP4E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK8233
|
Newark | Video Amplifier, 1Amplifier, Qfn-Ep, Ic Type:Video Amplifier, No. Of Amplifiers:1Amplifiers, Gain Bandwidth:-, Slew Rate:-, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Output Current:-, Ic Case/Package:Qfn-Ep Rohs Compliant: Yes |Analog Devices HMC1013LP4E RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1 |
|
$2,395.9400 | Buy Now |
|
DISTI #
1127-1661-ND
|
DigiKey | IC AMP RAD 500MHZ-18.5GHZ 24QFN Min Qty: 1 Lead time: 10 Weeks Container: Strip |
1 In Stock |
|
$2,551.1000 | Buy Now |
|
DISTI #
584-HMC1013LP4E
|
Mouser Electronics | Video Amplifiers 67 dB SMT SDLVA, 0.5 - 18.5 GHz RoHS: Compliant | 3 |
|
$2,388.9000 | Buy Now |
|
DISTI #
E54:1762_08341097
|
Arrow Electronics | Successive Detection Log Video Amplifier 24-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks | Europe - 1 |
|
$2,261.3300 / $2,332.2600 | Buy Now |
|
|
Analog Devices Inc | 67 dB SMT SDLVA, 0.5 - 18.5 GH Package Multiple: 1 | 8285 |
|
$1,357.4700 / $2,388.2800 | Buy Now |
|
DISTI #
26619442
|
Verical | Successive Detection Log Video Amplifier 24-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 | Americas - 8284 |
|
$2,403.2957 | Buy Now |
|
DISTI #
HMC1013LP4E
|
Richardson RFPD | SUCCESSIVE DETECTION LOG VIDEO AMPLIFIER MODULE RoHS: Compliant Min Qty: 1 | 0 |
|
$2,436.0500 / $2,598.4400 | Buy Now |
Part Details for HMC1013LP4E
HMC1013LP4E CAD Models
HMC1013LP4E Part Data Attributes
|
|
HMC1013LP4E
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
HMC1013LP4E
Analog Devices Inc
67 dB SMT SDLVA, 0.5 - 18.5 GHz
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | SMT-24 | |
| Pin Count | 24 | |
| Manufacturer Package Code | HCP-24-2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Consumer IC Type | VIDEO AMPLIFIER | |
| JESD-30 Code | S-PQCC-N24 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 4 mm |
HMC1013LP4E Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
-
The HMC1013LP4E requires a single 3.3V or 5V power supply. Ensure the power supply is clean and well-regulated, and decouple the power pins with 0.1uF and 10uF capacitors.
-
The HMC1013LP4E can operate up to 13.2 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
-
Use a low-noise power supply, minimize the length of the input traces, and use a high-quality input matching network to minimize reflections and optimize the noise figure.
-
Yes, the HMC1013LP4E can be used in a push-pull configuration to improve the output power and reduce the distortion. However, this requires careful design and layout to ensure proper balancing and matching.
